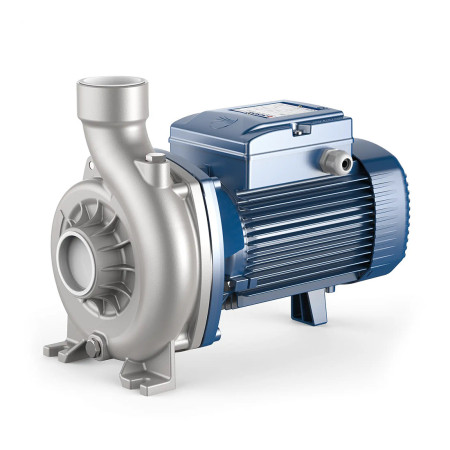

NGA 1B-PRO - 0.75 HP three-phase open impeller electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 November - Friday 14 November |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November
The PEDROLLO submersible pumps of the NGA-PRO line are recommended for pumping water and liquids that are chemically non-aggressive for the materials from which the pump is made.
The PEDROLLO NGA 1B - PRO has a flow rate that varies from 50 to 350 litres per minute with a head from 18 to 5 metres.
The open impeller construction solution allows for the pumping of fluids relatively loaded with impurities without the risk of clogging the impeller. All components in contact with the pumped liquid are made of AISI 316 stainless steel. For this feature, the NGA-PRO series pumps are specifically used in fruit, vegetable, fish and shellfish washing systems, in industrial systems for washing metal parts, glass containers and for the circulation of cooling liquids.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.3
- Current consumption at 400V (A)
- 1.9
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 316L stainless steel
- Impeller
- AISI 316L stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 5
- Max. head (m.)
- 18
- Jobs
- water supply, cooling systems, washing systems, water treatment plants
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400V
- Height (cm)
- 22.65
- Width (cm)
- 29.9
- Depth (cm)
- 19
- Weight (Kg)
- 12.7
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | EN 14401 stainless steel (AISI 316) |
| 2.1 - Seal holder cover | EN 14401 stainless steel (AISI 316) |
| 3.0 - Impeller | EN 14401 stainless steel (AISI 316) |
| 4.0 - Pump shaft | EN 1.4404 stainless steel (AISI 316L) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 NGA 1B-PRO - 0.75 HP three-phase open impeller electric pumpThis product Flow rate up to 350 l/min (21 m³/h). Head up to 18 m. 0.55 Kw (0.75 HP) motor. |  NGA 1A-PRO - 1 HP three-phase open impeller electric pumpFlow rate up to 400 l/min (24 m³/h). Head up to 20.5 m. 0.75 Kw (1 HP) motor. |  NGA 2B-PRO - 0.75 HP three-phase open impeller electric pumpFlow rate up to 450 l/min (27 m³/h). Head up to 9.5 m. 0.55 Kw (0.75 HP) motor. |  NGA 2A-PRO - 1 HP three-phase open impeller electric pumpFlow rate up to 550 l/min (33 m³/h). Head up to 11 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Price | Price €789.34 -42% €457.82 | Price €796.66 -42% €462.06 | Price €789.34 -42% €457.82 | Price €796.66 -42% €462.06 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 0.75 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.3 | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 1.9 | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 1" 1/2 | Suction mouth 1" 1/2 | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 2" | Delivery mouth 2" |
| Pump body | Pump body AISI 316L stainless steel | Pump body AISI 316L stainless steel | Pump body AISI 316L stainless steel | Pump body AISI 316L stainless steel |
| Impeller | Impeller AISI 316L stainless steel | Impeller AISI 316L stainless steel | Impeller AISI 316L stainless steel | Impeller AISI 316L stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 316 stainless steel | Crankshaft AISI 316 stainless steel | Crankshaft AISI 316 stainless steel | Crankshaft AISI 316 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 350 | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 450 | Max. flow rate (l./min.) 550 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 4 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 18 | Max. head (m.) 20.5 | Max. head (m.) 9.5 | Max. head (m.) 20.5 |
| Jobs | Jobs water supply, cooling systems, washing systems, water treatment plants | Jobs water supply, cooling systems, washing systems, water treatment plants | Jobs water supply, cooling systems, washing systems, water treatment plants | Jobs water supply, cooling systems, washing systems, water treatment plants |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 400V | Motor voltage 230 V, 400V | Motor voltage 400V | Motor voltage 400V |
| Height (cm) | Height (cm) 22.65 | Height (cm) 22.65 | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) 29.9 | Width (cm) 29.9 | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) 19 | Depth (cm) 19 | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 12.7 | Weight (Kg) 12.6 | Weight (Kg) -- | Weight (Kg) 13 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
