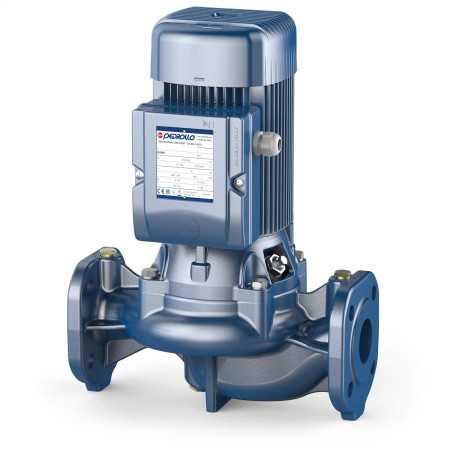

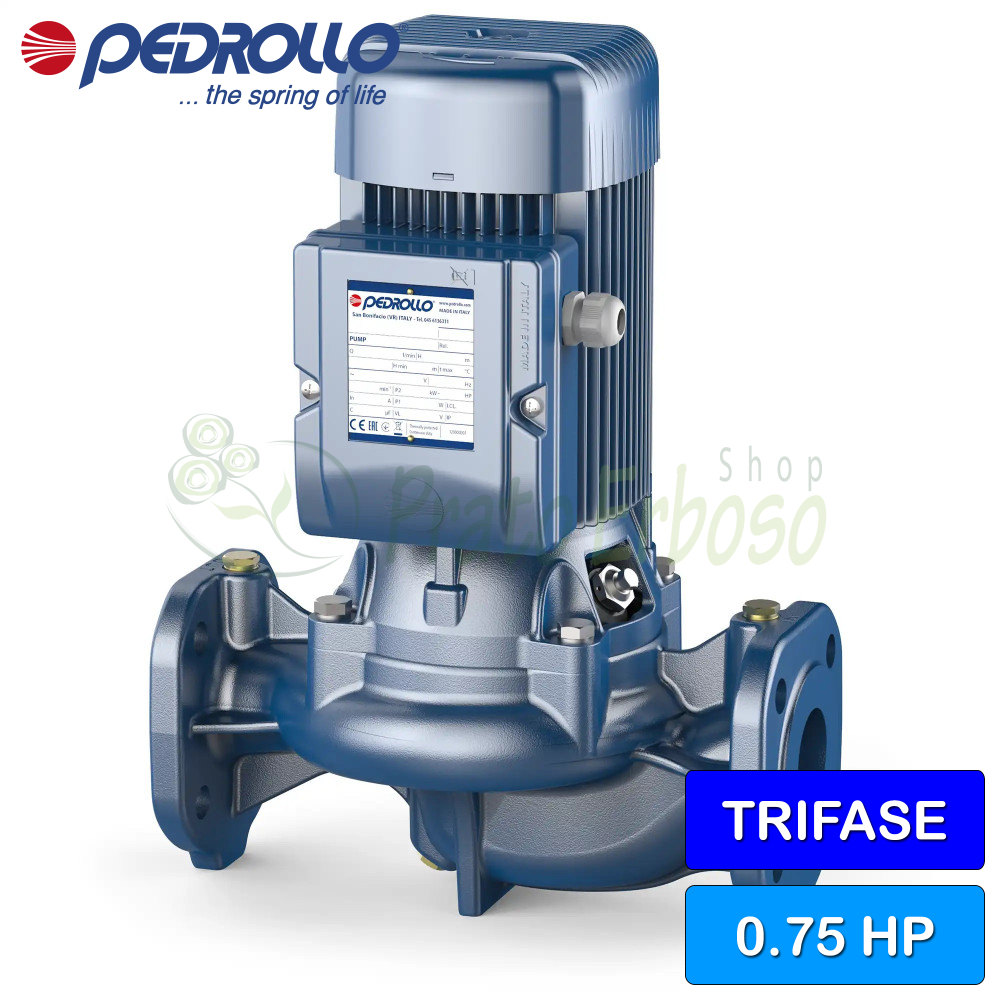

WR 40/125-SB - 0.75 HP three-phase centrifugal electric pump
Flow rate up to 300 l/min (18 m³/h). Head up to 18.7 m. 0.55 Kw (0.75 HP) motor.
The Pedrollo WR 40/125-SB centrifugal electric pump is recommended for use in the agricultural, civil and industrial sectors.
This pump is designed to move clean water, without abrasive parts, or chemically non-aggressive liquids to the materials from which the pump is made.
The WR 40/125-SB can be used in heating, air conditioning, cooling and circulation systems.
A special feature of this pump is the identical size of the suction port and the delivery port.
It has a flow rate that varies from 50 to 300 litres per minute with a head from 7 to 18.7 metres.
The WR 40/125-SB must be powered by a three-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +110.
The manometric suction capacity reaches up to 7 meters.
Installation must be carried out in well-ventilated closed places or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.6
- Current consumption at 400V (A)
- 2.1
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 7
- Max. head (m.)
- 18.7
- Jobs
- air conditioning systems, irrigation
- Max. liquid temperature (°C)
- +110°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 35.0
- Width (cm)
- 32.0
- Depth (cm)
- 19.5
- Weight (Kg)
- 21.1
- Warranty (years)
- 2
Compare with Similar Products
 WR 40/125-SB - 0.75 HP three-phase centrifugal electric pumpThis product Flow rate up to 300 l/min (18 m³/h). Head up to 18.7 m. 0.55 Kw (0.75 HP) motor. |  WR 40/125-SA - 1 HP three-phase centrifugal electric pumpFlow rate up to 300 l/min (18 m³/h). Head up to 22.4 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|
| Price | Price €841.80 -42% €488.24 | Price €854.00 -42% €495.32 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.6 | Absorption at 230V (A) 6.0 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 2.1 | Current consumption at 400V (A) -- |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 50 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 |
| Min. head (m.) | Min. head (m.) 7 | Min. head (m.) 9 |
| Max. head (m.) | Max. head (m.) 18.7 | Max. head (m.) 22.4 |
| Jobs | Jobs air conditioning systems, irrigation | Jobs air conditioning systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +110°C | Max. liquid temperature (°C) +110°C |
| Motor voltage | Motor voltage 230 V, 400V | Motor voltage 230 V, 400V |
| Height (cm) | Height (cm) 35.0 | Height (cm) 35.0 |
| Width (cm) | Width (cm) 32.0 | Width (cm) 32.0 |
| Depth (cm) | Depth (cm) 19.5 | Depth (cm) 19.5 |
| Weight (Kg) | Weight (Kg) 21.1 | Weight (Kg) 21.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
