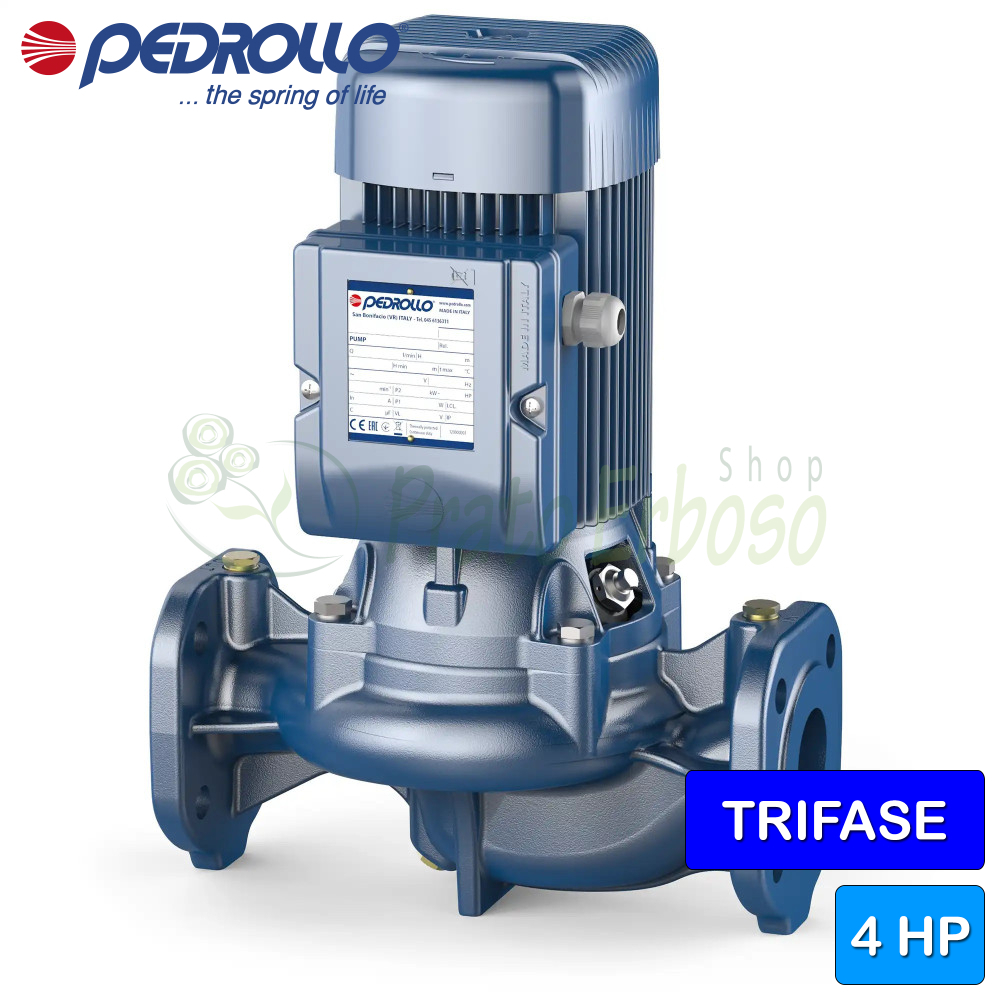

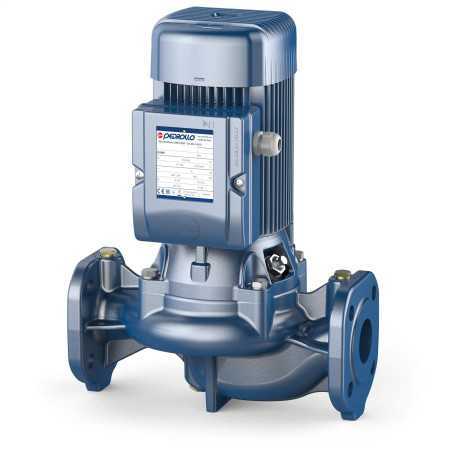

WR 65/125B - 4 HP three-phase centrifugal electric pump
Flow rate up to 1200 l/min. Head up to 20.7 m. 3 kW (4 HP) motor.
The Pedrollo WR 65/125B centrifugal electric pump is recommended for pumping clean water in heating, air conditioning, cooling or circulation systems.
A special feature of this pump is the identical size of the suction port and the delivery port.
The WR 65/125B can be used in the domestic, industrial and civil sectors.
It has a flow rate that varies from 300 to 1200 litres per minute with a head from 9 to 20.7 metres.
The WR 65/125B must be powered by a three-phase voltage, has a horsepower of 4 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The manometric suction capacity reaches up to 7 metres.
The pump is made of materials such as cast iron and stainless steel which give the product good sturdiness and allow it to last over time.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 550
- Min. head (m.)
- 6
- Max. head (m.)
- 16
- Jobs
- air conditioning systems, irrigation
- Max. liquid temperature (°C)
- +110°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 43.2
- Width (cm)
- 34.0
- Depth (cm)
- 22.0
- Weight (Kg)
- 29
- Warranty (years)
- 2
