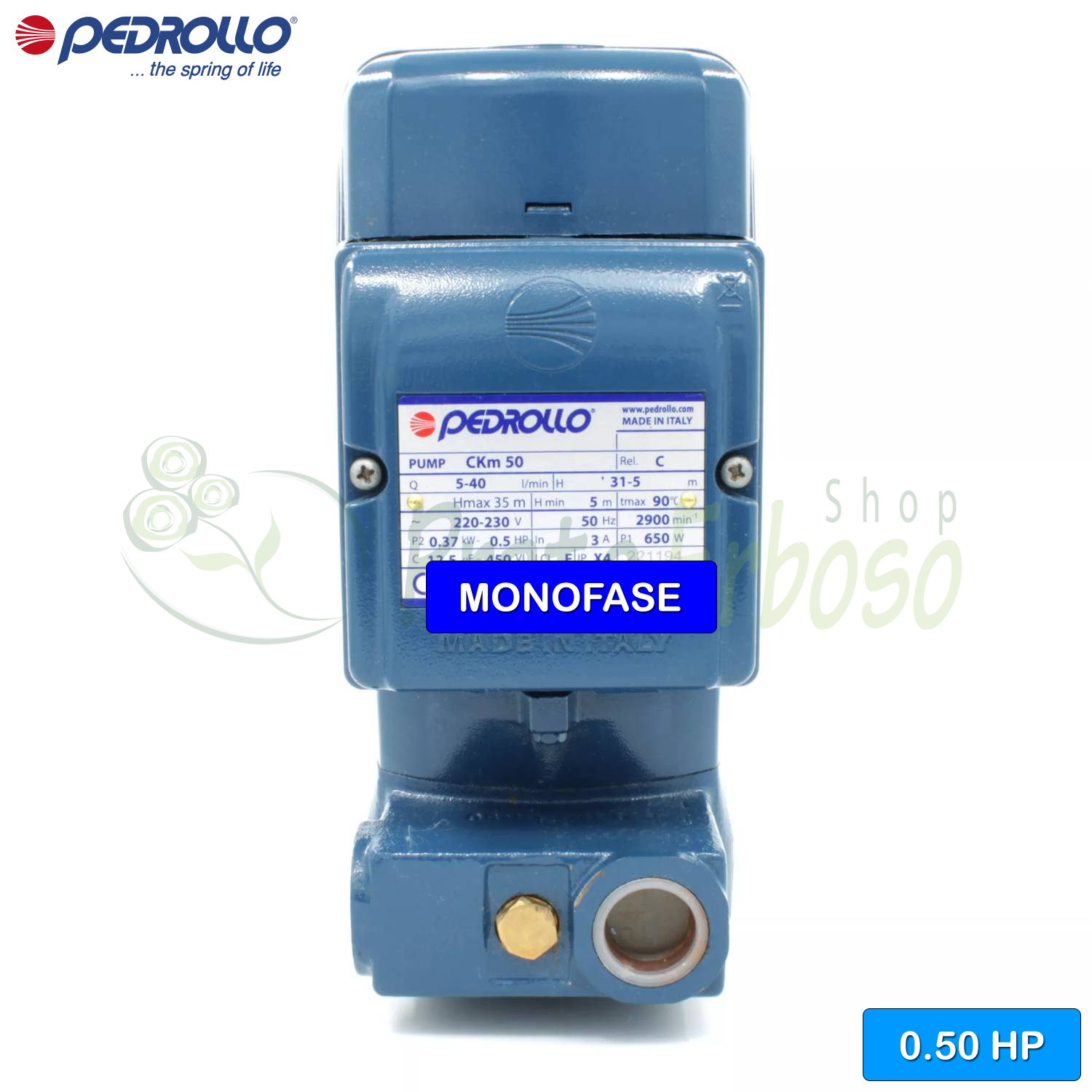

CKm 50 - 0.50 HP single-phase self-priming liquid ring electric pump
Flow rate up to 40 l/min (2.4 m³/h). Head up to 35 m. Motor 0.37 Kw (0.50 HP).
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
×
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The CKm 50 self-priming electric pump from the CK series by Pedrollo has a liquid ring.
Recommended for pumping diesel, clean water and chemically non-aggressive liquids for components.
Thanks to its specific operating principle, the liquid ring impeller, the CKm 50 is suitable for irregular and mixed water flow.
Extremely compact, it can be easily installed even in small spaces.
It is an excellent solution thanks to its excellent suction capacity, capable of guaranteeing priming up to 9 metres deep.
Data sheet
- Jobs
- water supply, pressurization systems
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3
- Capacitor
- 12.5 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 35
- Max. liquid temperature (°C)
- +90°C
- Degree of protection
- IP 44
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
- Height (cm)
- 15.2
- Width (cm)
- 12
- Depth (cm)
- 25.4
- Weight (Kg)
- 7.5
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- water supply, pressurization systems
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 3
- Capacitor
- 12.5 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 35
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 3/4"
- Delivery mouth
- 3/4"
Dimensions and weight
- Height (cm)
- 15.2
- Width (cm)
- 12
- Depth (cm)
- 25.4
- Weight (Kg)
- 7.5
Packaging, maintenance, and warranty
- Warranty (years)
- 2
CKm Models and Performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the CK series
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | AR-12V |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | Viton |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
