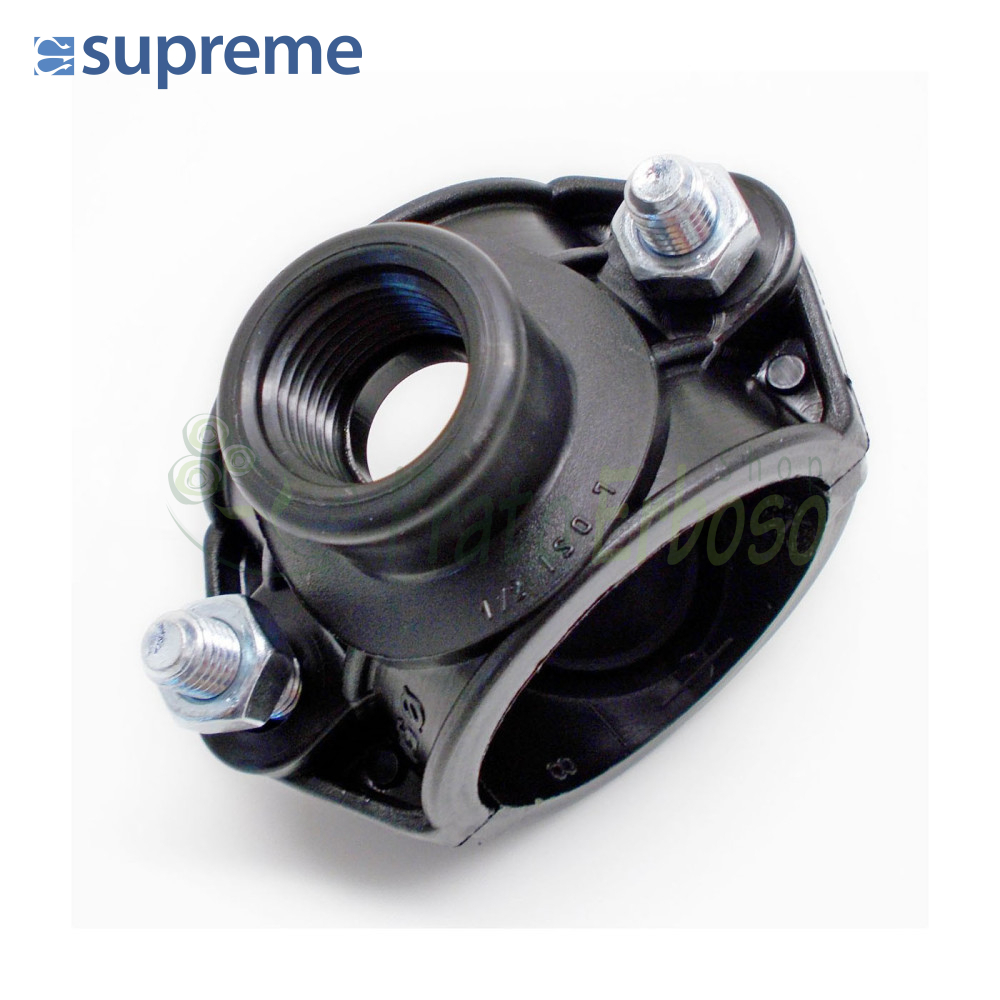

014802500B - PN 16 clamp socket with 25 X 1/2" galvanized screws
Diameter 25 mm. Thread 1/2 inch.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | tomorrow - Wednesday 2 September |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | tomorrow - Wednesday 2 September |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | tomorrow |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
tomorrow - Wednesday 2 September
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow - Wednesday 2 September
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
tomorrow
Supreme 's 014802500B clamp socket is widely used in underground irrigation, plumbing and gardening systems.
It allows you to quickly branch off a main PE pipe without having to cut it. Simply tighten the bracket around the pipe and drill a half-inch hole in the inside wall at the outlet.
The branch with the 014802500B clamp socket can be made on a pipe with a diameter of 25 millimetres.
The output thread is 1/2 inch female.
The nominal pressure supported is 12.5 bar .
The 014802500B socket is equipped with an internal NBR rubber O-ring which guarantees maximum hydraulic seal.
- External diameter (cm)
- 25
- Attack size
- 1/2 "
• Range: from d.25x1 / 2 "to 160x2" "
• Nominal pressure: PN12.5
• Mat : PP-B copolymer polypropylene
• Color: Grey
• Galvanized bolts
• O-ring gasket in NBR 70sh: maximized diameter for better containment of the drilling
• Screw locking system
• O-ring retention system
• Reference standards: ISO13460 - AS / NZS4129 etc; threads according to EN10226 (ex ISO7 / 1)
• Main applications: Irrigation
-
€1.13 tax incl. -
-
-
-
-
