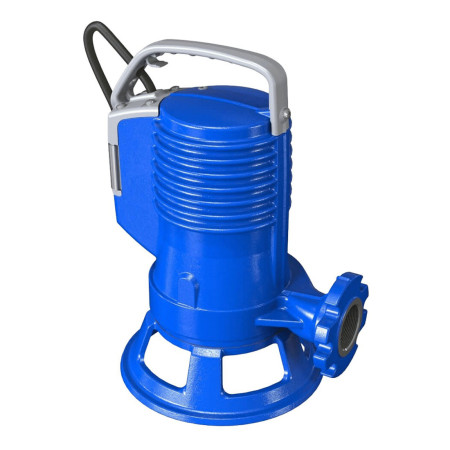

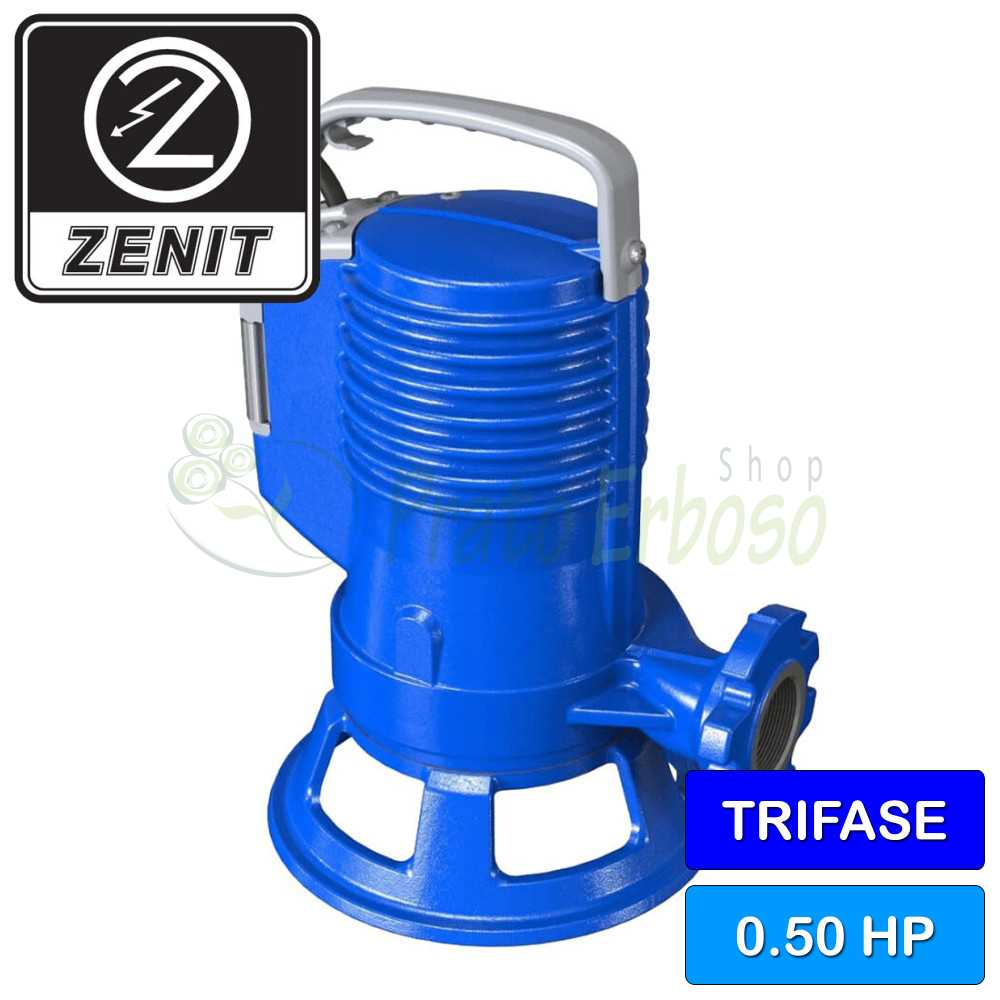

50/2/G40V A1BT5NCQNAE - 0.50 HP three-phase VORTEX electric pump for waste water
Flow rate up to 300 l/min (18.0 m³/h). Head up to 7 m. 0.37 kW (0.50 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 20 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 20 October
The 50/2/G40V A1BT5NCQNAE submersible electric pump from the DG bluePRO series by Zenit is ideal for the domestic and professional sectors.
Suitable for heavy-duty use in the presence of contaminated biological liquids, sewage, rainwater and seepage water.
It has a maximum flow rate of 300 litres per minute and a maximum head of 7 metres.
The distinguishing feature of the 50/2/G40V A1BT5NCQNAE is the vortex impeller which allows the passage of solid bodies.
It can be installed up to 20 meters below water level.
Made from materials such as cast iron and steel, Zenit has created a solid product suitable for even the most extreme conditions.
The cable supplied with the 50/2/G40V A1BT5NCQNAE is 5 meters.
- Jobs
- slightly dirty waters, water supply, drainage
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 1.1
- Max. head (m.)
- 7.0
- Max. liquid temperature (°C)
- 40
- Cable length (m.)
- 5
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 33.5
- Width (cm)
- 26.5
- Depth (cm)
- 19.0
- Weight (Kg)
- 13
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, drainage, slightly dirty waters
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 1.1
- Max. head (m.)
- 7.0
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 40
Power supply and electrical parameters
- Cable length (m.)
- 5
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 33.5
- Width (cm)
- 26.5
- Depth (cm)
- 19.0
- Weight (Kg)
- 13
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Compare with Similar Products
 50/2/G40V A1BT5NCQNAE - 0.50 HP three-phase VORTEX electric pump for waste waterThis product Flow rate up to 300 l/min (18.0 m³/h). Head up to 7 m. 0.37 kW (0.50 HP) motor. |  75/2/G40V A1BT5NCQNAE - 0.75 HP three-phase VORTEX electric pump for waste water Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.37 kW (0.50 HP) motor. |  100/2/G40V A1BT5NCQNAE - 1 HP three-phase VORTEX electric pump for waste water Flow rate up to 420 l/min (25.2 m³/h). Head up to 11.4 m. 0.75 Kw (1 HP) motor. |  150/2/G50V A1CT5NCQNAE - 1.5 HP three-phase VORTEX electric pump for waste water Flow rate up to 600 l/min (36.0 m³/h). Head up to 12.3 m. 1.1 Kw (1.5 HP) motor. | |
|---|---|---|---|---|
| Price | Price €468.48 -5% €445.06 | Price €492.88 | Price €622.20 -5% €591.09 | Price €729.56 -5% €693.08 |
| Jobs | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage | Jobs slightly dirty waters, water supply, drainage |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 1.5 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Crankshaft | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel | Crankshaft AISI 420 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 60 | Minimum flow rate (l./min.) 60 | Minimum flow rate (l./min.) 60 | Minimum flow rate (l./min.) 60 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 360 | Max. flow rate (l./min.) 420 | Max. flow rate (l./min.) 600 |
| Min. head (m.) | Min. head (m.) 1.1 | Min. head (m.) 2.6 | Min. head (m.) 2.7 | Min. head (m.) 2.4 |
| Max. head (m.) | Max. head (m.) 7.0 | Max. head (m.) 10.2 | Max. head (m.) 11.4 | Max. head (m.) 12.3 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Cable length (m.) | Cable length (m.) 5 | Cable length (m.) 5 | Cable length (m.) 5 | Cable length (m.) 5 |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 2" |
| Height (cm) | Height (cm) 33.5 | Height (cm) 33.5 | Height (cm) 36.5 | Height (cm) 36.5 |
| Width (cm) | Width (cm) 26.5 | Width (cm) 26.5 | Width (cm) 26.5 | Width (cm) 46.5 |
| Depth (cm) | Depth (cm) 19.0 | Depth (cm) 19.0 | Depth (cm) 19.0 | Depth (cm) 20.0 |
| Weight (Kg) | Weight (Kg) 13 | Weight (Kg) 15 | Weight (Kg) 15.5 | Weight (Kg) 23 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
