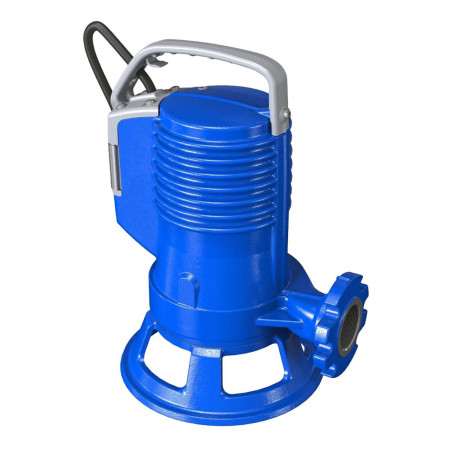

75/2/G40V A1BM5NCQTC - 0.75 HP single-phase VORTEX electric pump for waste water
Flow rate up to 360 l/min (21.6 m³/h). Head up to 10.2 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 20 October - Wednesday 21 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 20 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 20 October - Wednesday 21 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 20 October

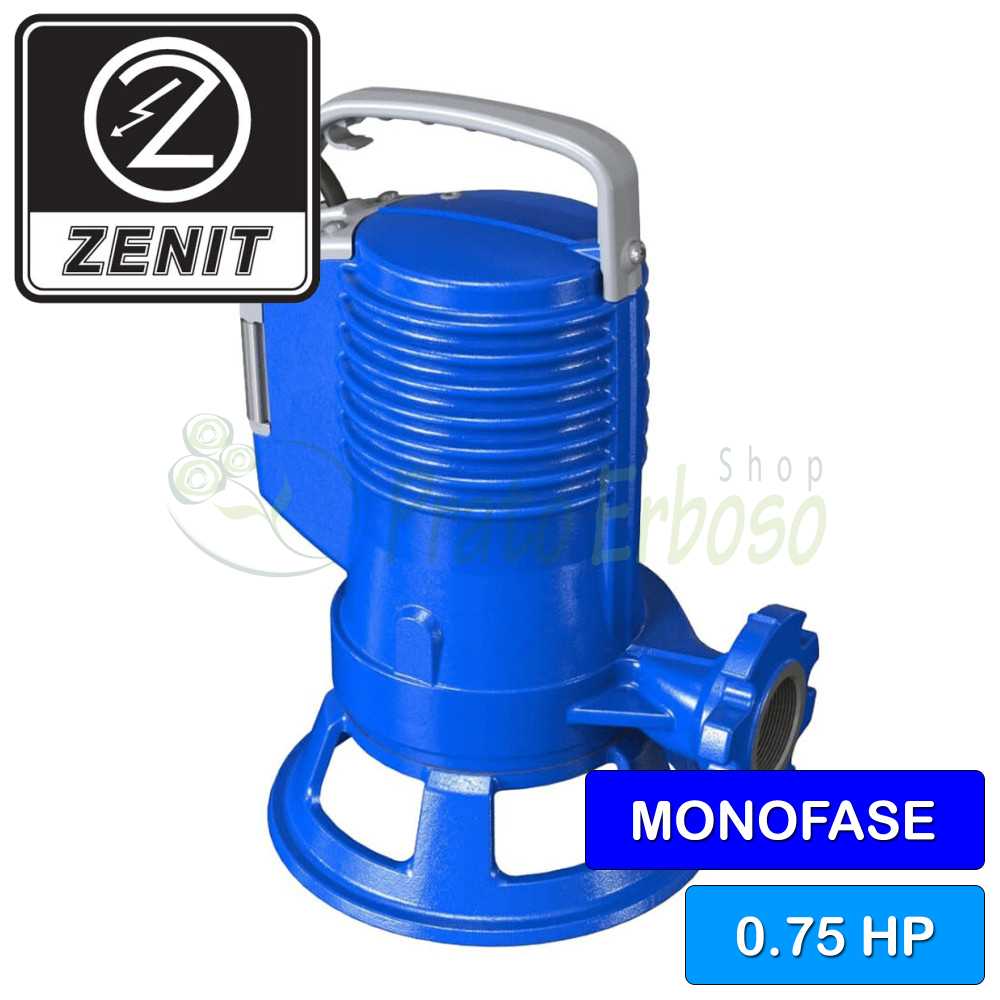

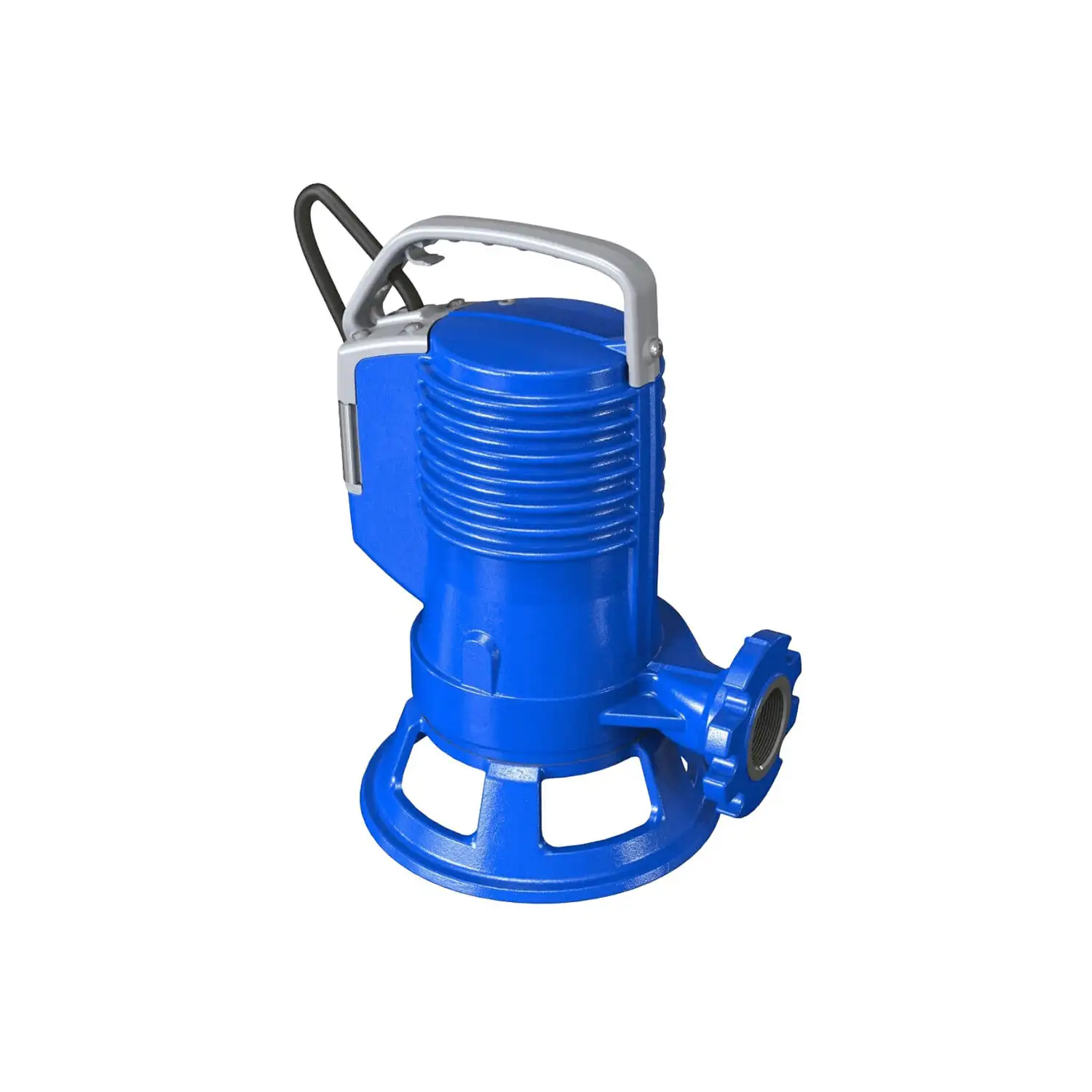

The 75/2/G40V A1BM5NCQTC submersible electric pump from the DG bluePRO series by Zenit is reliable, robust and guarantees excellent performance.
Zenit has equipped this electric pump with a vortex impeller, making it suitable for filtering solids. This makes it ideal for use with contaminated biological fluids, sewage, rainwater, and seepage water. Recommended for domestic and professional use.
It has a maximum flow rate of 360 litres per minute and a maximum head of 10.2 metres.
The pump's construction is solid. Materials such as cast iron and steel make it resistant to even the most extreme working conditions.
It can be installed up to 20 meters below water level.
The cable supplied with the 75/2/G40V A1BM5NCQTC is 5 meters.
- Jobs
- slightly dirty waters, water supply, drainage
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 2.6
- Max. head (m.)
- 10.2
- Max. liquid temperature (°C)
- 40
- Cable length (m.)
- 5
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 33.5
- Width (cm)
- 26.5
- Depth (cm)
- 19.0
- Weight (Kg)
- 15
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, drainage, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 60
- Max. flow rate (l./min.)
- 360
- Min. head (m.)
- 2.6
- Max. head (m.)
- 10.2
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 40
Power supply and electrical parameters
- Cable length (m.)
- 5
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 33.5
- Width (cm)
- 26.5
- Depth (cm)
- 19.0
- Weight (Kg)
- 15
Packaging, maintenance, and warranty
- Warranty (years)
- 2
