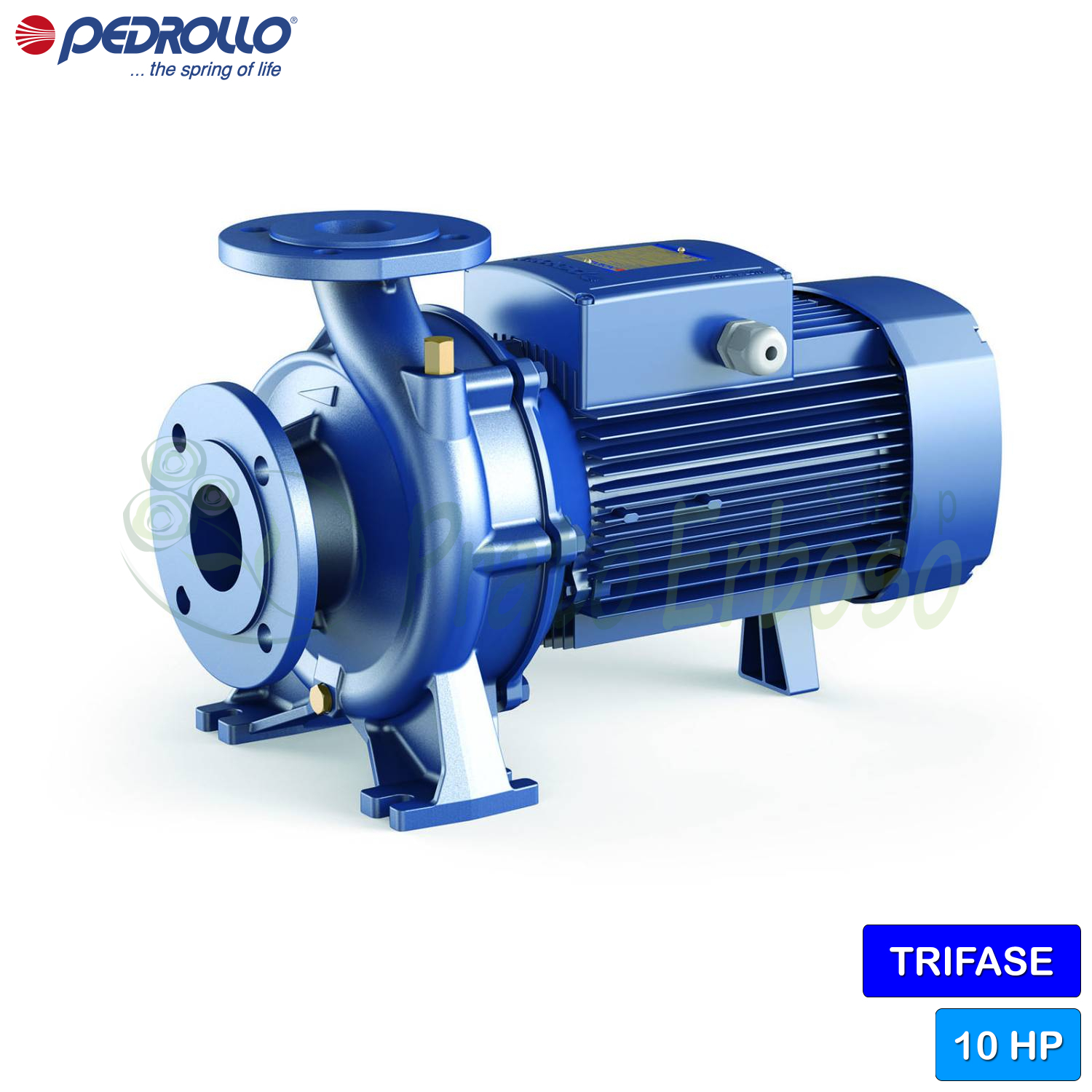

F 65/125A - 10 HP three-phase standard centrifugal electric pump
Flow rate up to 2200 l/min (132 m³/h). Head up to 23 m. 7.5 Kw (10 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The standardized F 65/125A centrifugal electric pump from the F series by Pedrollo can pump clean water and chemically non-aggressive liquids for the components.
Recommended for use in the civil and industrial sectors.
Suitable for a wide variety of uses such as water supply, pressurization, irrigation and water circulation in air conditioning systems.
The F 65/125A stands out not only for its flexibility but also for its compliance with EN733 standards.
Replacing the flanges and motor is quick and easy thanks to the construction according to the EN733 standard.
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Current consumption at 400V (A)
- 16.5
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 600
- Max. flow rate (l./min.)
- 2200
- Min. head (m.)
- 18
- Max. head (m.)
- 23
- Max. liquid temperature (°C)
- +90°C
- Degree of protection
- IP 55
- Suction mouth
- 3"
- Delivery mouth
- 2" 1/2
- Height (cm)
- 34
- Width (cm)
- 55.7
- Weight (Kg)
- 63
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Current consumption at 400V (A)
- 16.5
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 600
- Max. flow rate (l./min.)
- 2200
- Min. head (m.)
- 18
- Max. head (m.)
- 23
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 3"
- Delivery mouth
- 2" 1/2
Dimensions and weight
- Height (cm)
- 34
- Width (cm)
- 55.7
- Weight (Kg)
- 63
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 ZZ-C3 |
| Opposite side engine bearing | 6206 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
