F 80/250B - 60 HP three-phase standard centrifugal electric pump
Flow rate up to 3600 l/min (216 m³/h). Head up to 77 m. 45 kW (60 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 28 October - Monday 2 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 28 October - Monday 2 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October

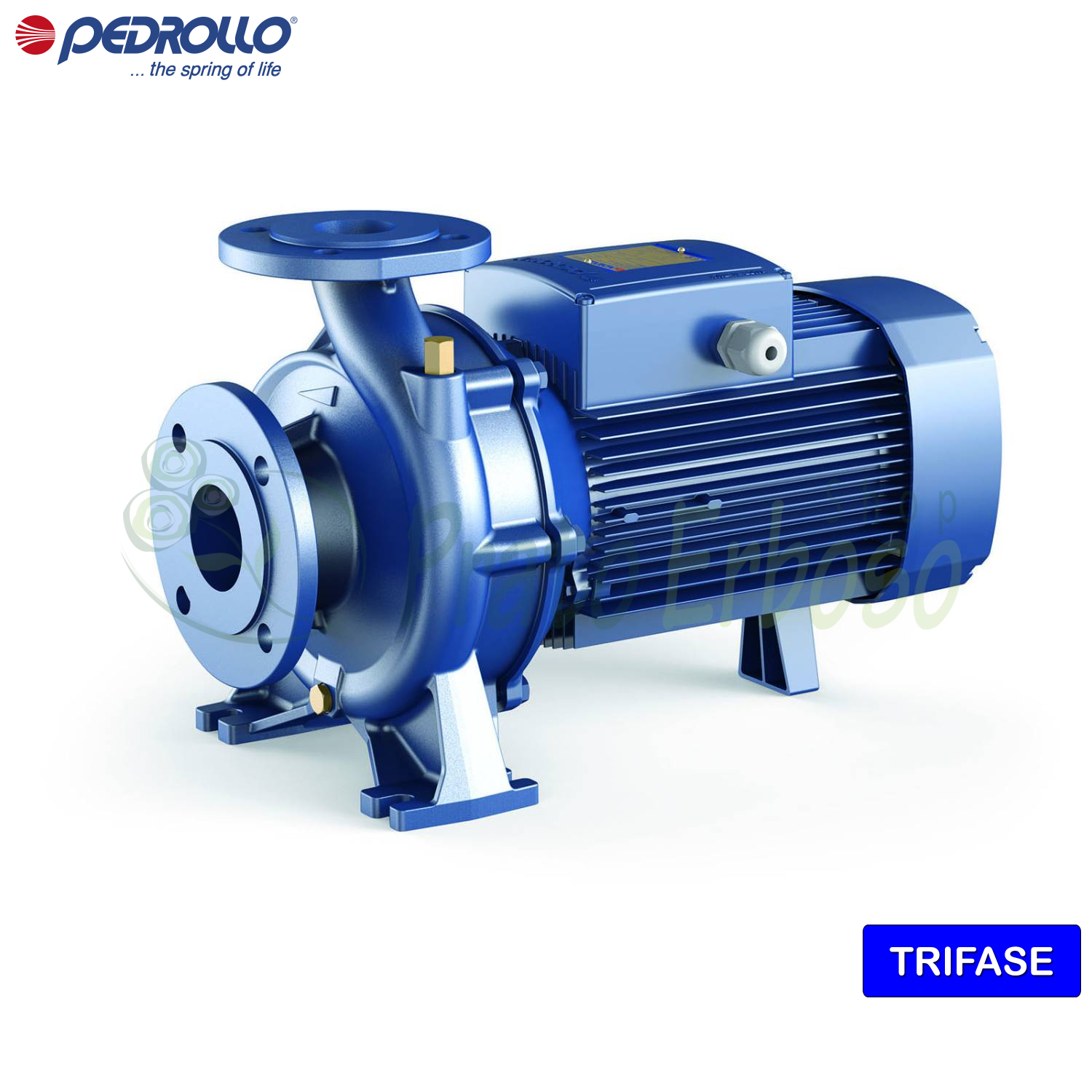

The F 80/250B standardized centrifugal electric pump from the F series by Pedrollo is a reliable and robust monoblock electric pump.
Pedrollo has created this electric pump in compliance with EN733 standards.
Replacing flanges and motors has never been easier thanks to compliance with this standardization.
Pedrollo 's use of cast iron, brass and stainless steel in the construction of the F 80/250B makes it solid, robust and resistant to stress and wear.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
- Motor connection
- THREE-PHASE
- Power (Kw)
- 45
- Power (HP)
- 60
- Current consumption at 400V (A)
- 79
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 600
- Max. flow rate (l./min.)
- 3600
- Min. head (m.)
- 54
- Max. head (m.)
- 77
- Max. liquid temperature (°C)
- 90
- Degree of protection
- IP 55
- Suction mouth
- 4"
- Delivery mouth
- 3"
- Height (cm)
- 48
- Width (cm)
- 87.2
- Weight (Kg)
- 240
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, cooling systems, air conditioning systems, washing systems, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 45
- Power (HP)
- 60
- Current consumption at 400V (A)
- 79
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 600
- Max. flow rate (l./min.)
- 3600
- Min. head (m.)
- 54
- Max. head (m.)
- 77
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 90
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 4"
- Delivery mouth
- 3"
Dimensions and weight
- Height (cm)
- 48
- Width (cm)
- 87.2
- Weight (Kg)
- 240
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6312 ZZ-C3 |
| Opposite side engine bearing | 6212 ZZ-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-40 NU |
| LP diameter | 40 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 6.1 - Engine cover | EN-AB 46100 aluminium |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
