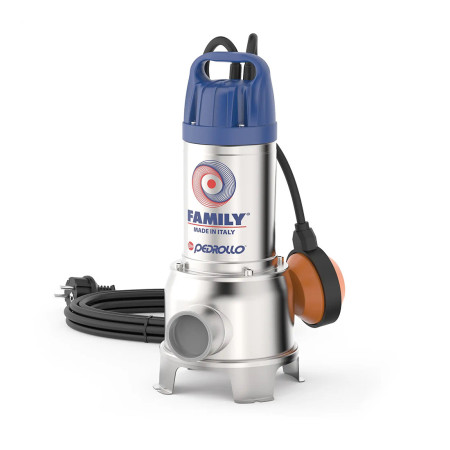

FAMILY - 0.70 HP Single Phase Submersible Electric Pump
Flow rate up to 250 l/min (15 m³/h). Head up to 10 m. 0.50 Kw (0.70 HP) motor.
The FAMILY electric pump is recommended for draining dirty water. Its use is suitable in the domestic sector.
The special feature of this pump is its ability to evacuate dirty water, even in the presence of suspended solids with dimensions up to 30 millimetres in diameter.
The FAMILY has a flow rate that varies from 10 to 250 litres per minute with a head of 1 to 10 metres.
This pump can be installed up to 5 meters below the water level with a suitable length of power cable. For continuous operation it must be immersed at least 160 mm.
The temperature of the liquid up to 40 centigrade.
The FAMILY is equipped with a 5-meter power cable, a float switch and a hose holder.
The pump is made of stainless steel which guarantees good strength and resistance to the product.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3.0
- Delivery mouth
- 1 "1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 1
- Max. head (m.)
- 10
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Height (cm)
- 33.3
- Width (cm)
- 16.3
- Depth (cm)
- 14.0
- Weight (Kg)
- 7.0
- Warranty (years)
- 2
