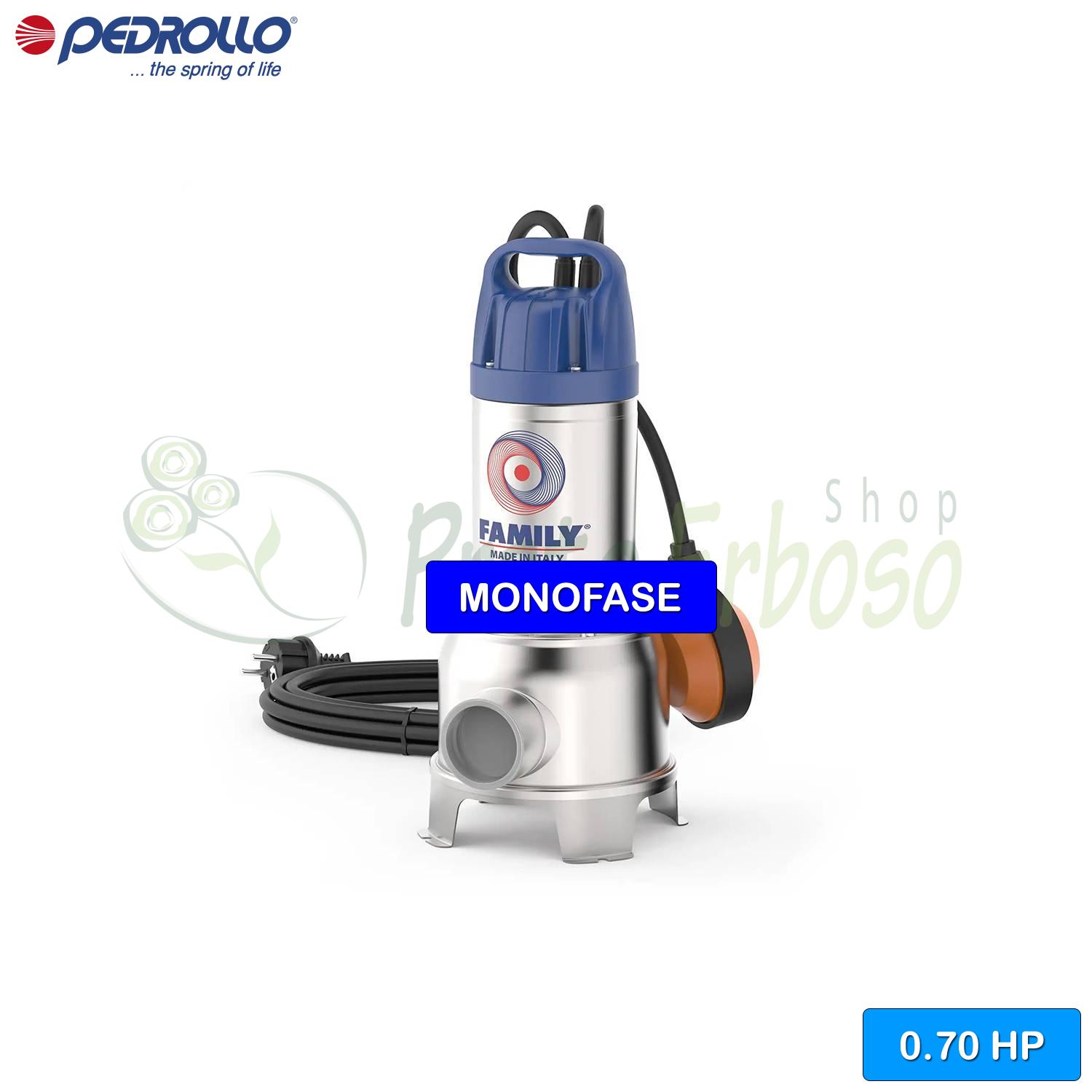

FAMILY-GM - 0.70 HP single-phase submersible electric pump
Flow rate up to 250 l/min (15 m³/h). Head up to 10 m. 0.50 Kw (0.70 HP) motor.
WITH MAGNETIC FLOAT.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The FAMILY-GM electric pump is recommended for draining wastewater. It is suitable for domestic use.
A special feature of this pump is its ability to evacuate dirty water, even in the presence of suspended solids up to 30 millimetres in diameter.
The FAMILY-GM has a flow rate ranging from 10 to 250 litres per minute with a head of 1 to 10 metres.
This pump can be installed up to 5 meters below the water level with an appropriately long power cable. For continuous operation, it must be submerged at least 160 mm below the water level.
The temperature of the liquid up to 40 centigrade.
The FAMILY-GM is equipped with a 5-meter power cable, a float switch and a hose holder.
The pump is made of stainless steel which guarantees good strength and resistance to the product.
- Jobs
- slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 1
- Max. head (m.)
- 10
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Height (cm)
- 33.3
- Width (cm)
- 16.3
- Depth (cm)
- 14
- Weight (Kg)
- 7
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.70
- Absorption at 230V (A)
- 3
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 250
- Min. head (m.)
- 1
- Max. head (m.)
- 10
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 33.3
- Width (cm)
- 16.3
- Depth (cm)
- 14
- Weight (Kg)
- 7
Packaging, maintenance, and warranty
- Warranty (years)
- 2
