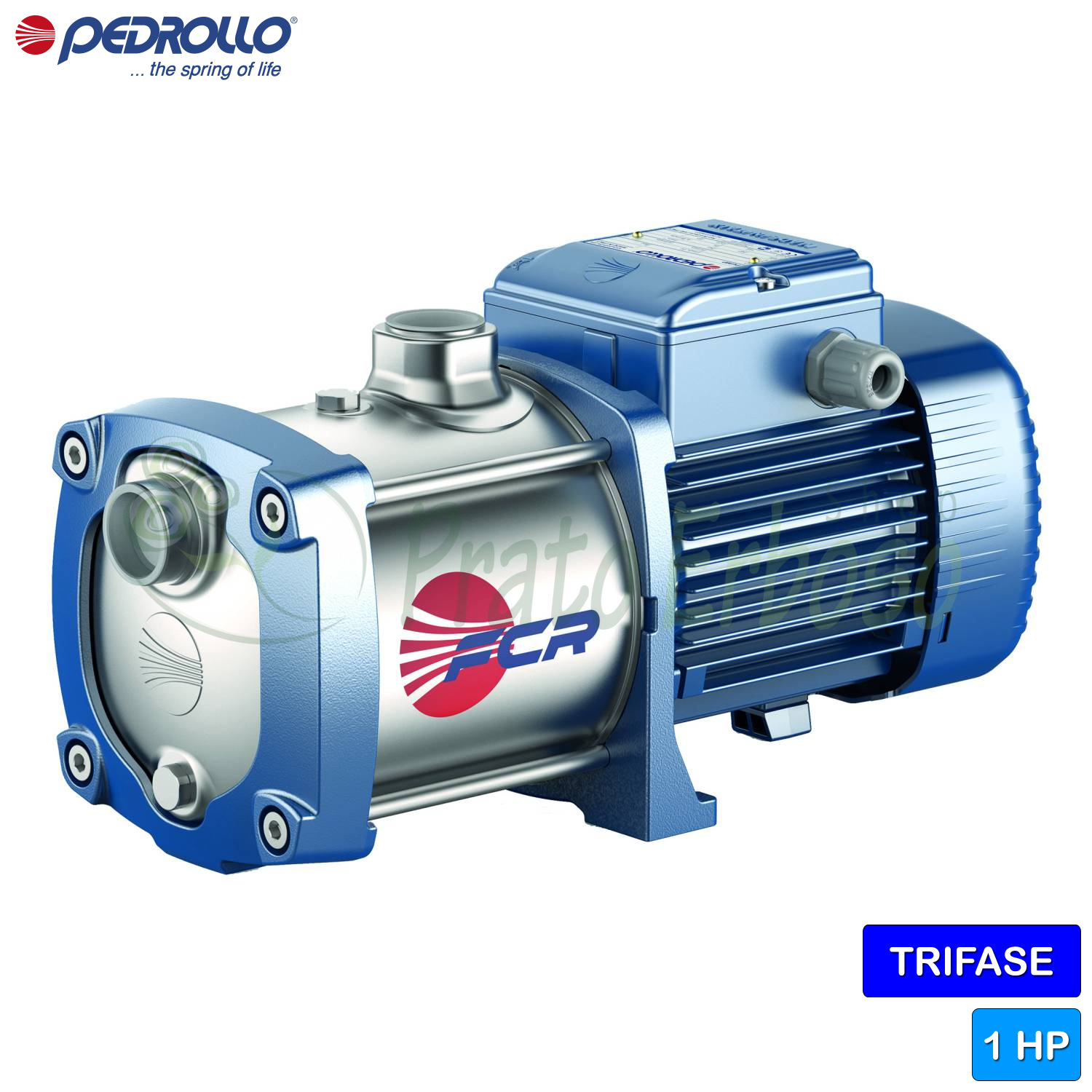

FCR 80/5 - 1 HP three-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 80 l/min (4.8 m³/h). Head up to 67 m. Motor 0.75 Kw (1 HP).
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo FCR 80/5 centrifugal electric pump is recommended for water distribution in combination with pressure tanks, for industrial applications, irrigation systems.
Its distinguishing feature is its silence.
Pedrollo created this pump with the aim of making a product that is efficient in terms of consumption but above all very silent thanks to the use of stainless steel in the construction and the multi-stage construction.
The FCR 80/5 is recommended for the domestic and civil sector.
It must be powered by a three-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +60.
The flow rate ranges from 5 to 80 metres and the head from 12 to 67 litres.
- Jobs
- irrigation
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.0
- Current consumption at 400V (A)
- 2.3
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 12
- Max. head (m.)
- 67
- Max. liquid temperature (°C)
- +60°C
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Height (cm)
- 18.9
- Width (cm)
- 16.0
- Depth (cm)
- 37.7
- Weight (Kg)
- 11.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- irrigation
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.0
- Current consumption at 400V (A)
- 2.3
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 12
- Max. head (m.)
- 67
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +60°C
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 18.9
- Width (cm)
- 16.0
- Depth (cm)
- 37.7
- Weight (Kg)
- 11.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
