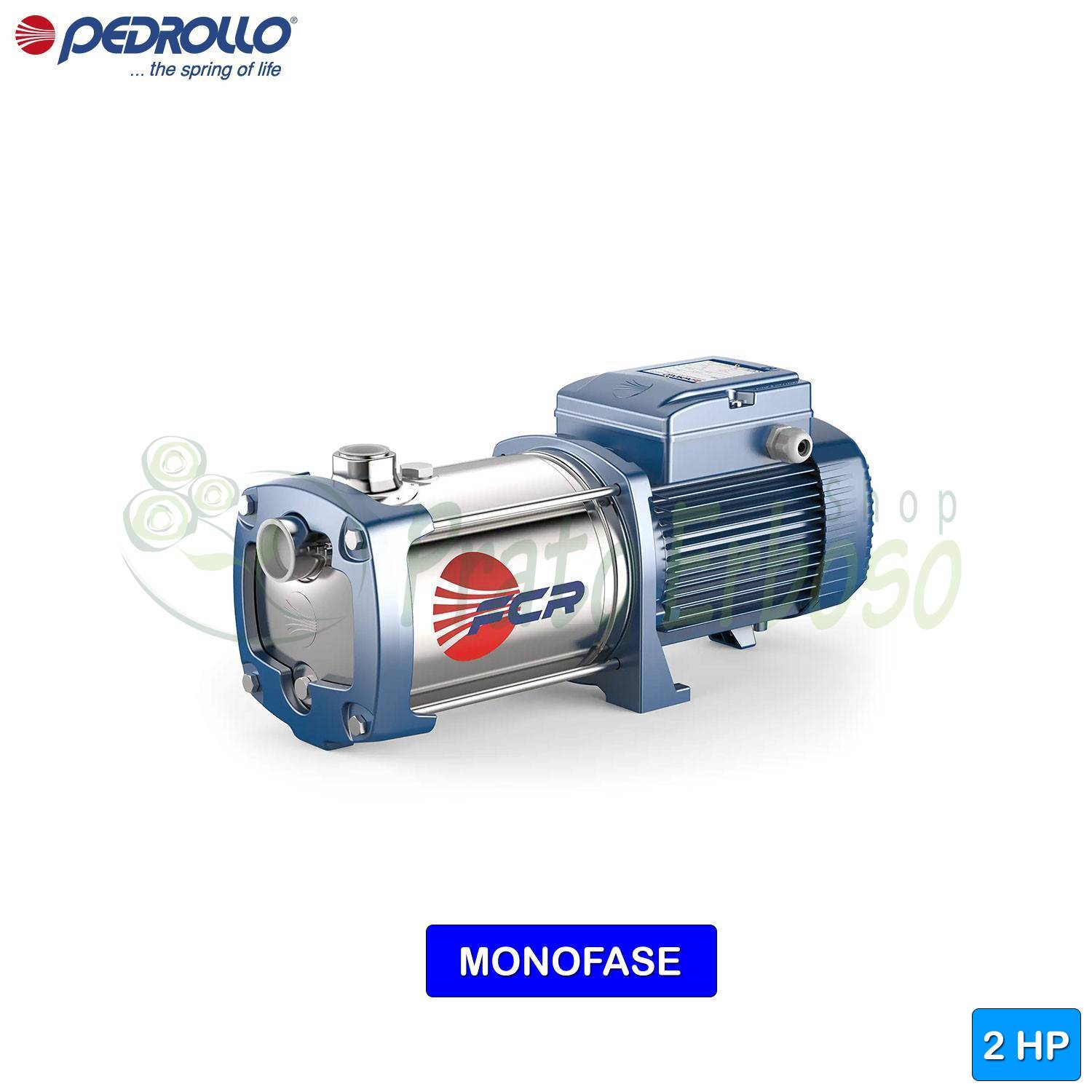

FCRm 240/3 - 2 HP single-phase multi-impeller electric pump
Flow rate up to 240 l/min (14.4 m³/h). Head up to 77 m. 1.5 Kw (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 27 October - Wednesday 28 October |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 27 October - Wednesday 28 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 27 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 27 October - Wednesday 28 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 27 October
The FCRm 240/3 multi-impeller electric pump is recommended for irrigating vegetable gardens or gardens.
This pump is recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The operation is very simple and reliable, as the movement of the impellers in the pumping body increases the pressure of the pumped water.
Due to its reliability and silence, the FCRm 240/3 is widely used in the domestic sector and in particular for the distribution of water in combination with small or medium-sized pressure tanks, for the irrigation of vegetable gardens or gardens.
The flow rate ranges from 20 to 240 liters per minute. The head ranges from 19 to 77 meters.
This pump has a 1¼" suction port and a 1" discharge port.
The FCRm 240/3 must be powered by a single-phase voltage, has a horsepower of 1.5 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The pump is made entirely of AISI 304 stainless steel which gives it good resistance and allows it to last over time.
The FCRm 240/3 must be installed indoors or in any case protected from the elements.
- Jobs
- irrigation
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 8.5
- Pump body
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 19
- Max. head (m.)
- 77
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 44
- Weight (Kg)
- 19.2
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- irrigation
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 8.5
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Number of impellers
- 2
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 240
- Min. head (m.)
- 19
- Max. head (m.)
- 77
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 22.8
- Width (cm)
- 18.5
- Depth (cm)
- 44
- Weight (Kg)
- 19.2
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side motor bearing | 6204 ZZ-C3E |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | EN 1.4301 stainless steel (AISI 304) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
