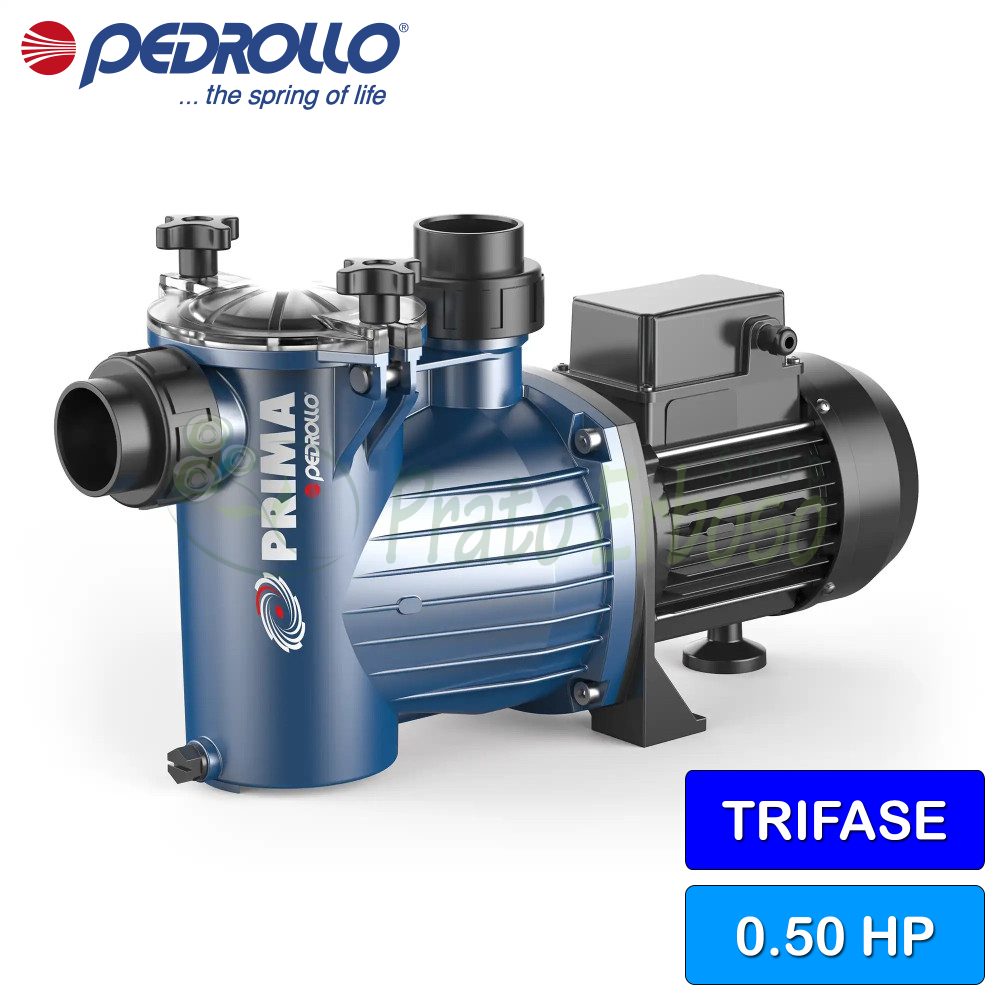

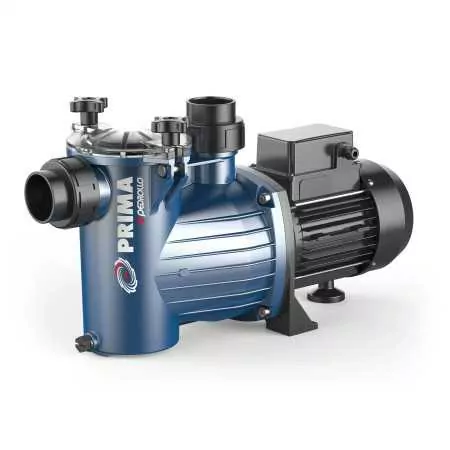

PRIMA 50 - Three-phase electric pool pump 0.50 HP
Flow rate up to 220 l/min (13.2 m³/h). Head up to 11.7 m. 0.37 Kw (0.50 HP) motor.
The self-priming electric pump PRIMA 50 by Pedrollo is recommended for use in the residential sector for swimming pools up to 70 cubic metres.
The pump is very silent but its strong point is its resistance to corrosion. It can withstand heat and adverse conditions and the painting of the motor case is made by cataphoresis.
Equipped with a pre-filter complete with transparent lid that facilitates visual inspection and a basket with an extra large filter that allows filtering but at the same time collects residues to facilitate cleaning operations.
The PRIMA 50 must be powered by a three-phase voltage, has a horsepower of 0.50 HP and the temperature of the liquid to be pumped reaches up to +40 degrees centigrade.
The flow rate ranges from 20 to 220 litres per minute and the head from 4 to 11.7 metres.
The PRIMA 50 manometric suction height is up to 9 meters. The pump tolerates water with pH 6.5 – 8.4.
Certified IP55, the pump is safe from dust and water ingress.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2.6
- Current consumption at 400V (A)
- 1.5
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 220
- Min. head (m.)
- 4
- Max. head (m.)
- 11.7
- Jobs
- circulation in the pool
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V, 400V
- Height (cm)
- 27.5
- Width (cm)
- 19.7
- Depth (cm)
- 47.6
- Weight (Kg)
- 8.8
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 PRIMA 50 - Three-phase electric pool pump 0.50 HPThis product Flow rate up to 220 l/min (13.2 m³/h). Head up to 11.7 m. 0.37 Kw (0.50 HP) motor. |  VILLABELLA 50 - Three-phase electric pool pump 0.50 HPFlow rate up to 300 l/min (18 m³/h). Head up to 14 m. 0.37 Kw (0.50 HP) motor. | |
|---|---|---|
| Price | Price €561.20 -42% €325.50 | Price €628.30 -42% €364.41 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.37 | Power (Kw) 0.37 |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.50 |
| Absorption at 230V (A) | Absorption at 230V (A) 2.6 | Absorption at 230V (A) 2.8 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 1.5 | Current consumption at 400V (A) 1.6 |
| Suction mouth | Suction mouth 1" 1/2 | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 2" |
| Pump body | Pump body Polypropylene | Pump body Polypropylene |
| Impeller | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 316 stainless steel | Crankshaft AISI 316 stainless steel |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 50 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 300 |
| Min. head (m.) | Min. head (m.) 4 | Min. head (m.) 4 |
| Max. head (m.) | Max. head (m.) 11.7 | Max. head (m.) 14 |
| Jobs | Jobs circulation in the pool | Jobs circulation in the pool |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) 40 |
| Motor voltage | Motor voltage 230 V, 400V | Motor voltage 230 V, 400V |
| Height (cm) | Height (cm) 27.5 | Height (cm) 31.5 |
| Width (cm) | Width (cm) 19.7 | Width (cm) 20.6 |
| Depth (cm) | Depth (cm) 47.6 | Depth (cm) 55.0 |
| Weight (Kg) | Weight (Kg) 8.8 | Weight (Kg) 11.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
