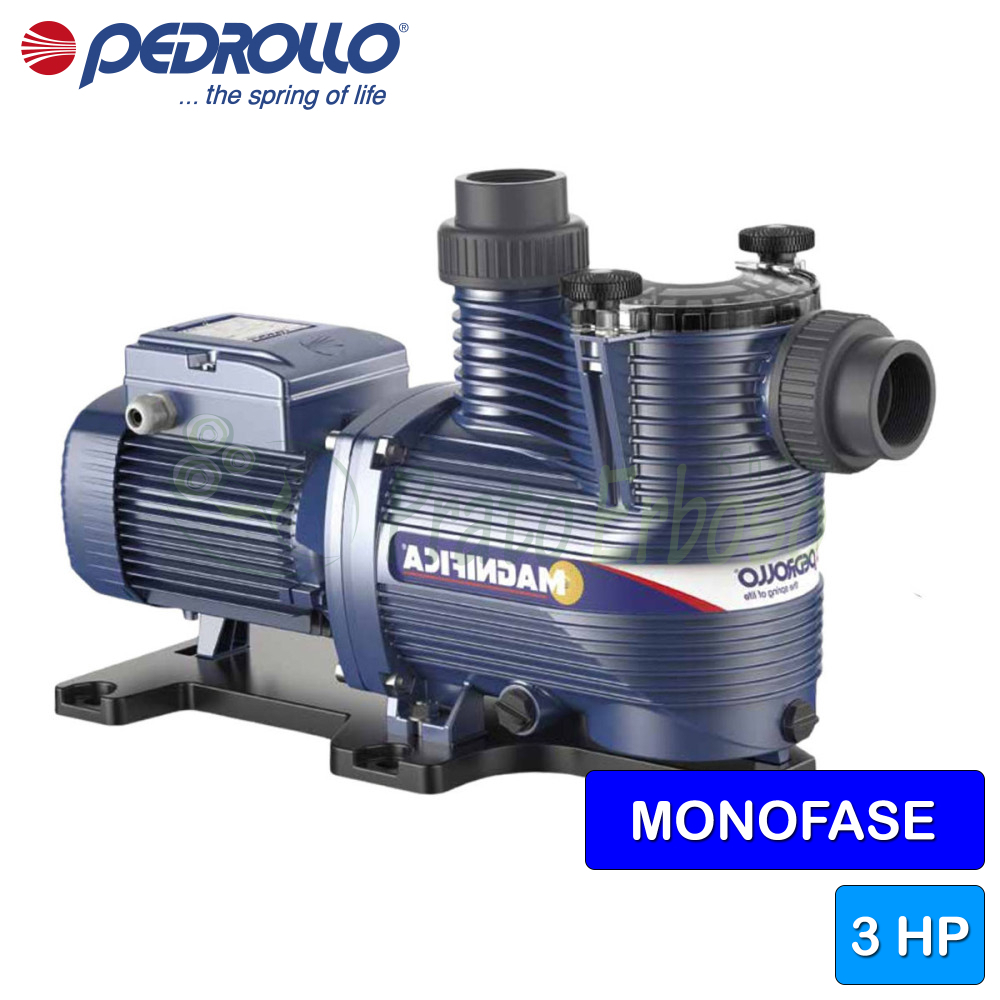

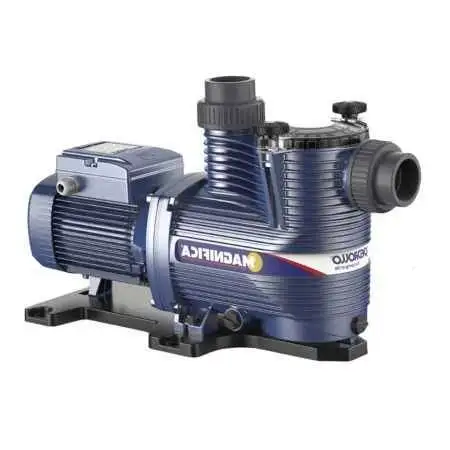

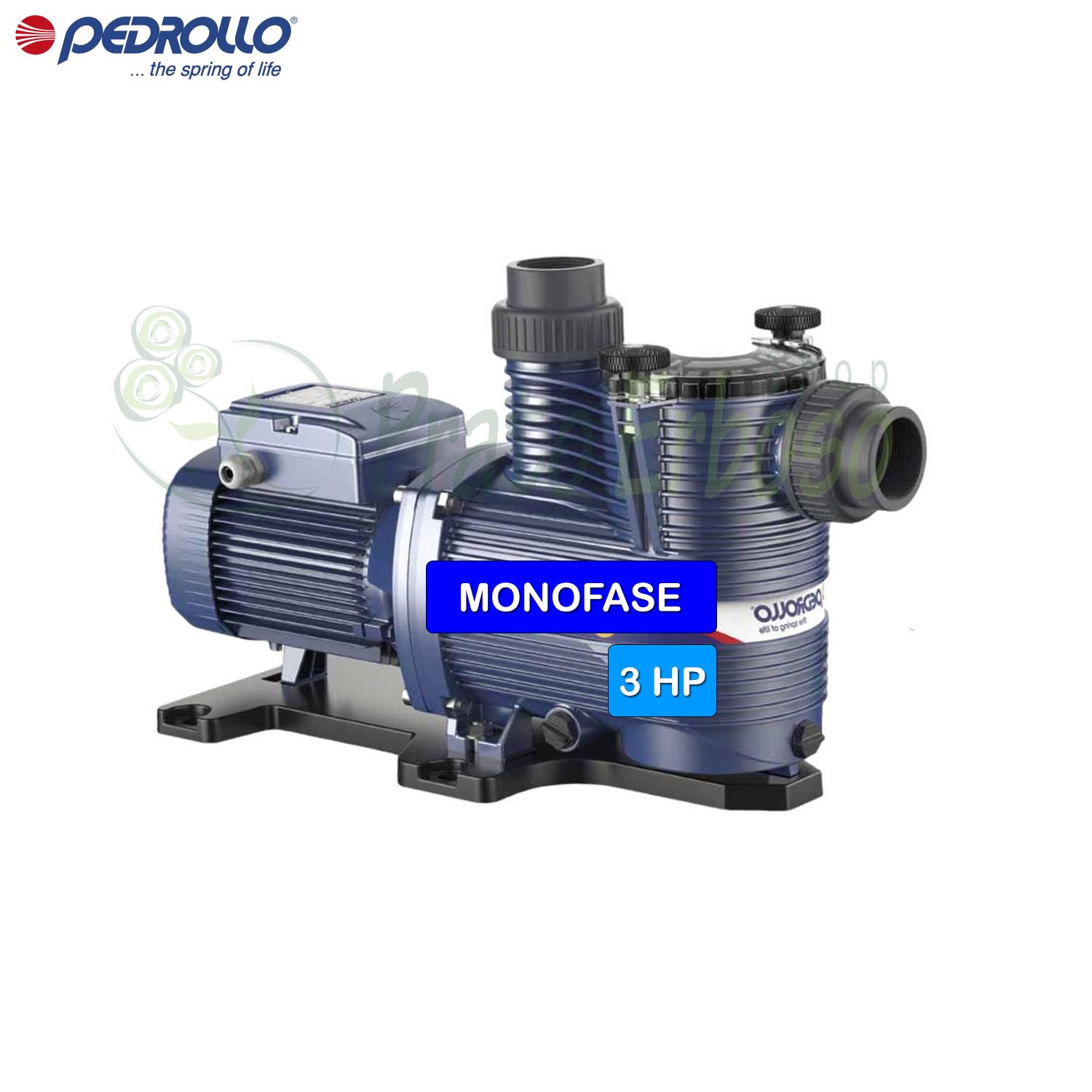

MAGNIFICA 5m - 3 HP Single Phase Electric Pool Pump
Flow rate up to 700 l/min (42 m³/h). Head up to 23 m. 2.2 Kw (3 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The self-priming electric pump with pre-filter MAGNIFICA 5m by Pedrollo is suitable for the circulation and filtering of swimming pool water, especially for those that require large flow rates.
It has a flow rate that varies from 100 to 700 litres per minute with a head of 8 to 23 metres.
It is recommended for pools up to 180 cubic meters. Pool water with pH 6.5 – 8.4.
Installation should be carried out in well-ventilated areas protected from the elements with adequate space for maintenance.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 13
- Capacitor
- 50 µF 450 VL
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Impeller
- Noryl
- Number of impellers
- 1
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 8
- Max. head (m.)
- 23
- Jobs
- circulation in the pool
- Max. liquid temperature (°C)
- +45°C
- Height (cm)
- 35.3
- Width (cm)
- 23.5
- Depth (cm)
- 67.7
- Weight (Kg)
- 23.3
- Warranty (years)
- 2
Models and performances MAGNIFICA m
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the MAGNIFICA 3-4-5
Bearings
| Pump side motor bearing | 6204 2RS |
| Opposite side engine bearing | 6204 2RS |
Tree holding
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-20R |
| LP diameter | 20 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Reinforced technopolymer |
| 2.0 - Lid | Anti-UV polymer |
| 2.1 - Seal holder cover | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
