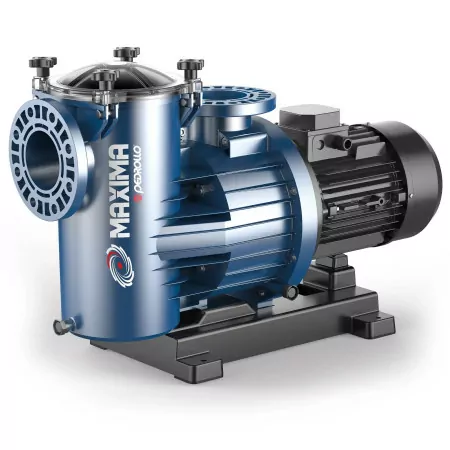

MAXIMA-4 250 - 2.5 HP three-phase electric pool pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 12.5 m. 1.8 Kw (2.5 HP) motor.
The MAXIMA-4 250 self-priming electric pump by Pedrollo is recommended for use in commercial swimming pools up to 1080 cubic metres.
This pump is designed and built to be durable.
The MAXIMA-4 250 has a high resistance to heat and chemical and salt corrosion. The engine case is painted with cataphoresis treatment.
The base is made of anti-corrosion plastic material which ensures stable support for the pump and pipes.
A distinguishing feature of the MAXIMA-4 250 is the transparent pre-filter that facilitates visual inspection and the extra large basket that allows for reduced cleaning frequency.
This pump can be used for swimming pools with water that has a pH of 6.5 to 8.4.
The flow rate ranges from 200 to 1000 litres and the head from 4 to 12.5 metres.
The suction capacity of the MAXIMA-4 250 is up to 4 metres.
It must be powered by a three-phase voltage, has a horsepower of 2.5 HP and the liquid temperature reaches up to +40 centigrade.
The inlet and outlet ports are flanged, it is possible to connect the pump to the water system via a 110 mm 8-hole counterflange.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.8
- Power (HP)
- 2.5
- Absorption at 230V (A)
- 8.1
- Current consumption at 400V (A)
- 4.7
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 4
- Max. head (m.)
- 12.5
- Jobs
- circulation in the pool
- Max. liquid temperature (°C)
- 40
- Motor voltage
- 230 V, 400V
- Height (cm)
- 59.6
- Width (cm)
- 36.8
- Depth (cm)
- 83.8
- Weight (Kg)
- 42
- Warranty (years)
- 2
