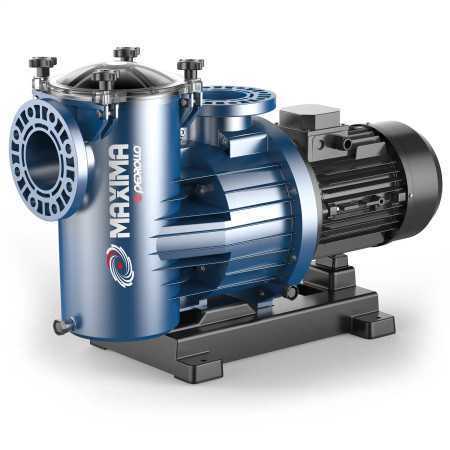

MAXIMA-4 550 - 5.5 HP Three-Phase Electric Pool Pump
Flow rate up to 2100 l/min (126 m³/h). Head up to 13 m. 4 Kw (5.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 3 July - Monday 6 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 3 July - Monday 6 July |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 8 July - Monday 13 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 3 July - Monday 6 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 3 July - Monday 6 July
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 8 July - Monday 13 July

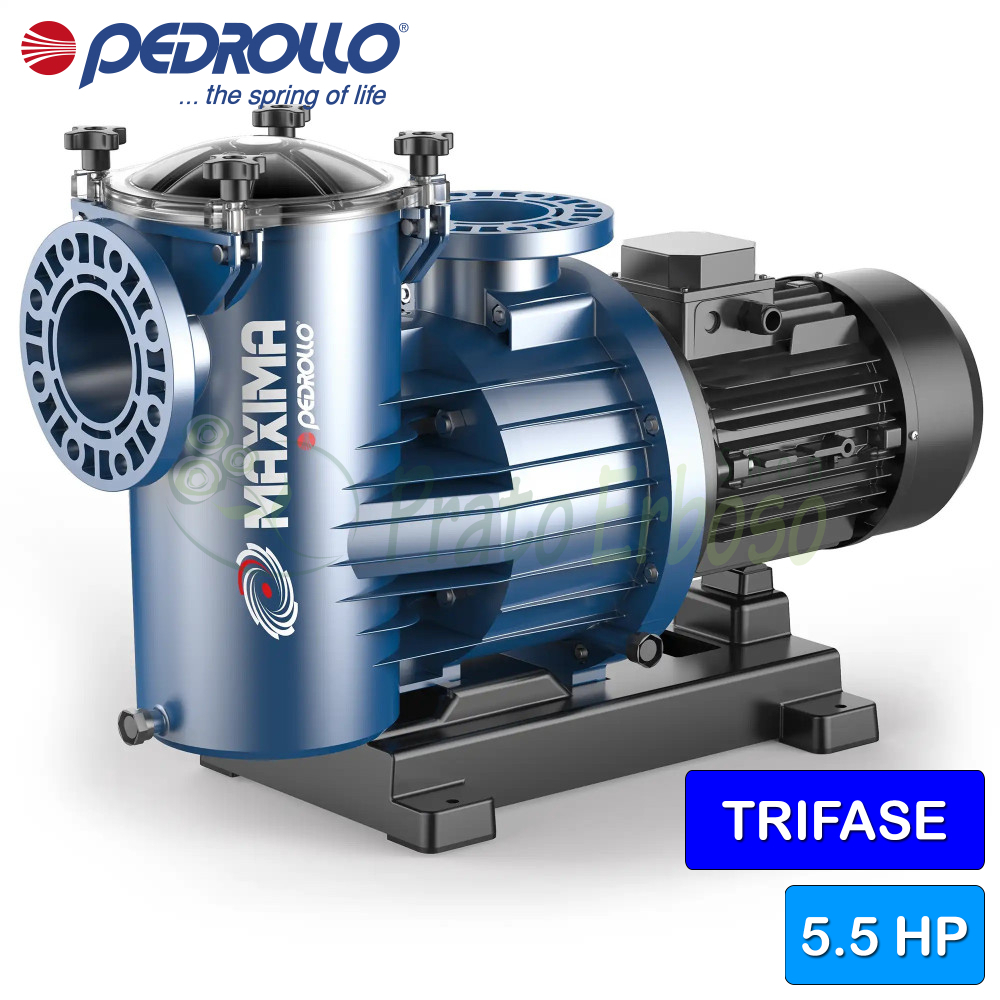

The MAXIMA-4 550 self-priming electric pump by Pedrollo is recommended for use in commercial swimming pools.
A key feature of this pump is its resistance to corrosion.
The MAXIMA-4 550 in fact has a high resistance to chemical and saline corrosion and to heat and the painting is done with cataphoresis treatment.
Furthermore, the base is made of a special anti-corrosion plastic material that guarantees resistance and support for both the pump and the pipes.
All this to indicate that with the MAXIMA-4 550 Pedrollo has created a product that will last over time.
It has a transparent pre-filter that makes maintenance easy and a basket equipped with a filter that allows you to filter the water and collect the dirt at the same time.
This pump can be used for swimming pools with water that has a pH of 6.5 to 8.4.
The flow rate ranges from 200 to 2100 litres and the head from 5 to 13 metres.
The suction capacity of the MAXIMA-4 550 is up to 4 metres.
It must be powered by a three-phase voltage, has a horsepower of 5.5 HP and the liquid temperature reaches up to +40 centigrade.
The inlet and outlet ports are flanged, it is possible to connect it to the water system via a 110 mm 8-hole counterflange.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 4
- Power (HP)
- 5.5
- Absorption at 230V (A)
- 15.6
- Current consumption at 400V (A)
- 9.0
- Pump body
- Polypropylene
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 316 stainless steel
- Check valve
- No
- Degree of protection
- IP 55
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 2100
- Min. head (m.)
- 5
- Max. head (m.)
- 13
- Jobs
- circulation in the pool
- Max. liquid temperature (°C)
- 40
- Motor voltage
- 230 V, 400V
- Height (cm)
- 59.6
- Width (cm)
- 36.8
- Depth (cm)
- 86.3
- Weight (Kg)
- 53.4
- Warranty (years)
- 2
