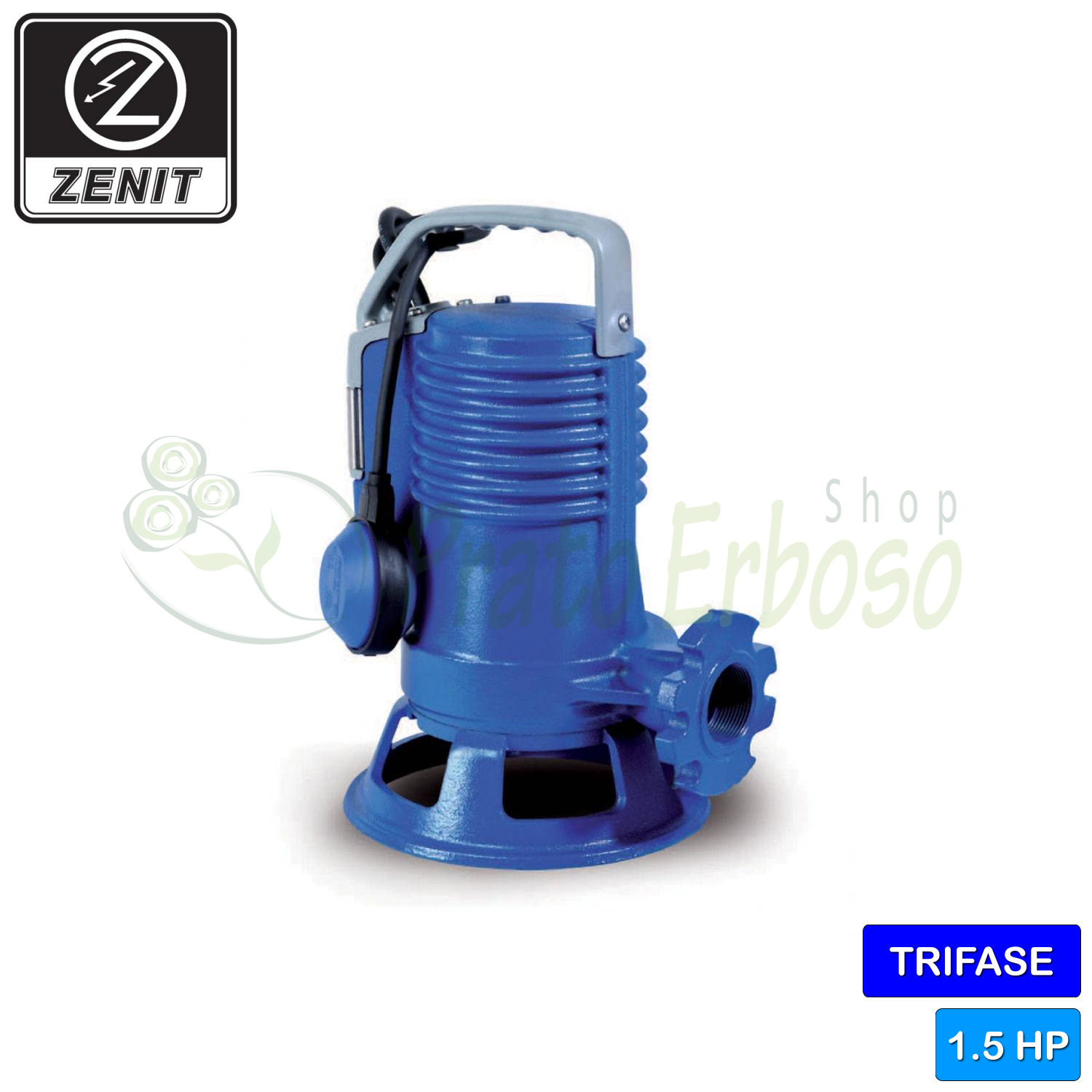

150/2/G40H A1CTG - Electric chopper three phase
Flow rate up to 300 l/min (18 m3/h). Head up to 21 m. Motor 1.1 Kw (1.5 HP). With the float.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
Electric pump, submersible chopper series GR bluePRO 150/2/G40H A1CT is indicated in the presence of bodies of filamentous or fibrous, and in the general sewer waste source shall not grilled.
It is used where you require high performance or heavy-duty operation and extended within the home, and professional.
All the components are designed to allow a high degree of reliability and maintenance operations simple and quick.
Each model is subjected to a pressure test to ensure the perfect installation and operation of seals, cable gland and mechanical seals.
The structure of cast iron and the double mechanical seal in oil makes this pump rugged and reliable, and allow the use also heavy duty in lifting waste water grilled or offices, with solid bodies and fibres in domestic installations and in residential or small commercial systems.
- Motor connection
- THREE-PHASE
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 30
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 3
- Max. head (m.)
- 21
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/2
- Weight (Kg)
- 24.0
- Warranty (years)
- 2
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 3.2
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Cast iron
- Crankshaft
- AISI 420 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 30
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 3
- Max. head (m.)
- 21
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Weight (Kg)
- 24.0
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Handle
Ergonomic handle designed for optimal grip. Shape designed for housing a lifting shackle that allows the electric pump to remain stable during its handling. Float stroke adjustment system to modify the start-stop levels.
Cable gland
Innovative cable gland with anti-tear system and double O-ring to guarantee maximum tightness. Easy extraction to facilitate maintenance.
Capacitor
Single-phase models with integrated capacitor.
Carcass
The construction in EN-GJL-250 cast iron guarantees solidity and durability even in the case of maintenance interventions that require the extraction and insertion of the motor.
Pressure test
Engine compartment closing screw for pressure tests to which each model is subjected.
Mechanical and V-Ring seals
Two mechanical seals in silicon carbide (2Sic), both installed in the oil chamber. The V-Ring in direct contact with the liquid protects the mechanical seals from foreign bodies, preserving their correct functioning.
