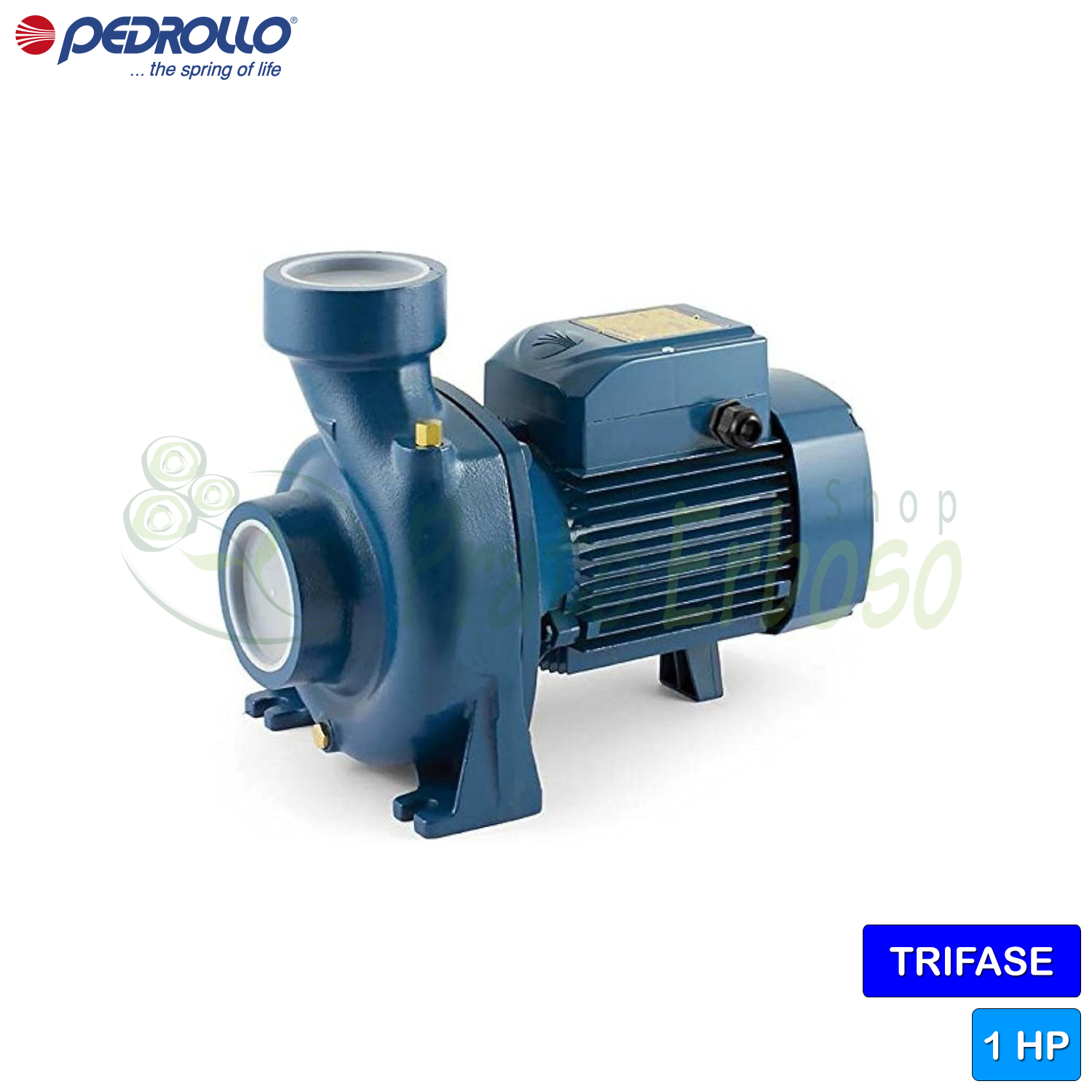

HF 4 - 1 HP three-phase centrifugal electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 9.8 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo HF 4 submersible pump is recommended for use in the agricultural and industrial sectors.
It has a flow rate that varies from 200 to 800 litres per minute with a head from 4 to 9.8 metres.
It must be powered by a three-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
The high efficiency and the possibility of continuous use make the HF 4 advantageous for flow and sprinkler irrigation, for drawing water from lakes, rivers, wells or for the most varied industrial uses characterised by the need to achieve considerable flow rates in relation to medium-low heads.
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.3
- Current consumption at 400V (A)
- 2.5
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 4
- Max. head (m.)
- 9.8
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 400 V
- Degree of protection
- IP 44
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Height (cm)
- 24
- Width (cm)
- 31.7
- Depth (cm)
- 19.8
- Weight (Kg)
- 14.3
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, irrigation, cooling systems, tank transfer
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.3
- Current consumption at 400V (A)
- 2.5
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 4
- Max. head (m.)
- 9.8
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 400 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
Dimensions and weight
- Height (cm)
- 24
- Width (cm)
- 31.7
- Depth (cm)
- 19.8
- Weight (Kg)
- 14.3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-14 |
| LP diameter | 14 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Reviews (1) - Review moderation
A nicely made pump. Good iron body castings, nicely made and substantial bronze impeller. Three phase motor runs smooth on a variable frequency drive. Can't fault it and excellent value for money. The shipping to Portugal from Italy took less than a week. Well deserving of five stars.
