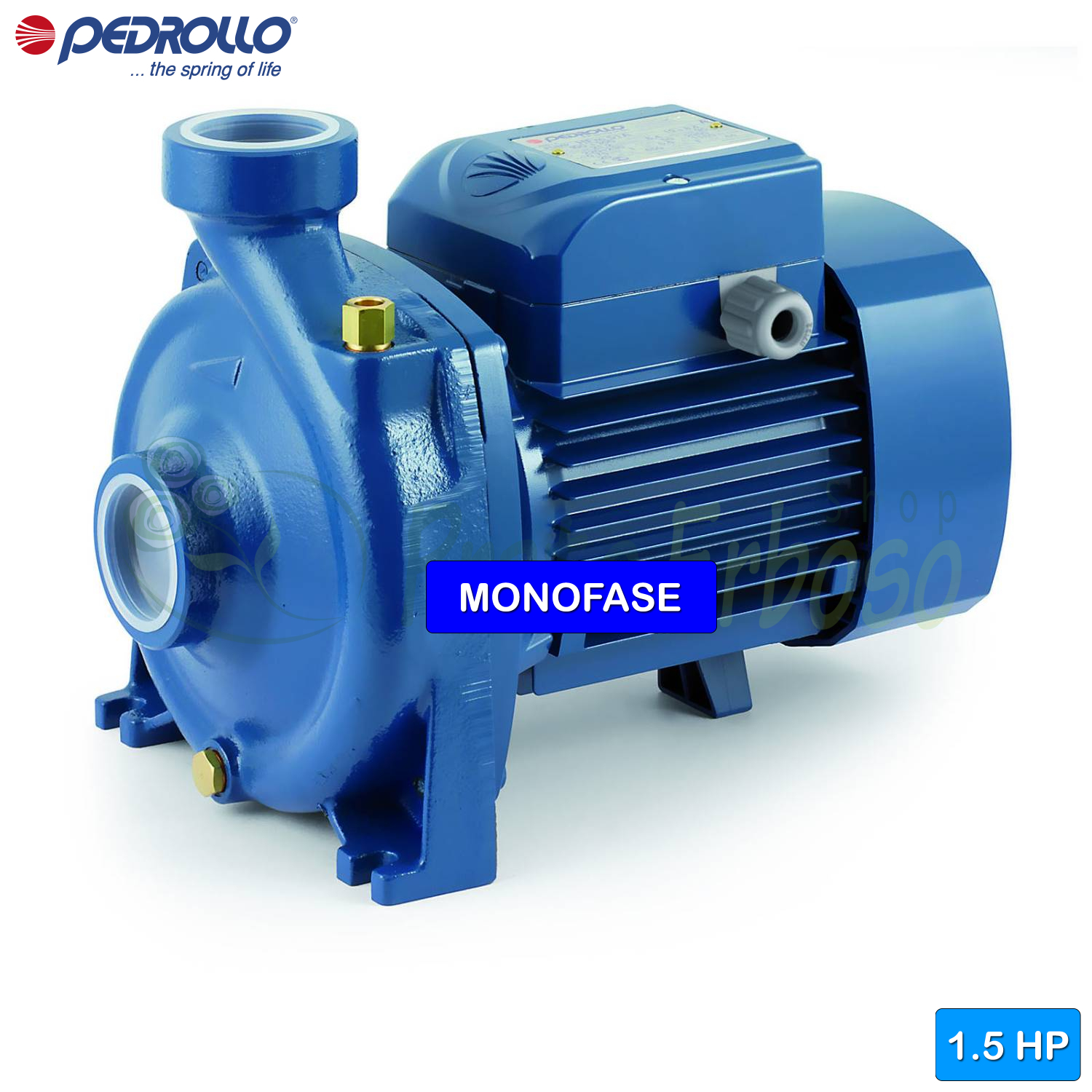

HFm 70C - 1.5 HP single-phase centrifugal electric pump
Flow rate up to 300 l/min (18 m³/h). Head up to 29 m. 1.1 kW (1.5 HP) motor.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
×
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo HFm 70C centrifugal electric pump is suitable for those seeking reliability during long work sessions.
Suitable for surface and sprinkler irrigation, for drawing water from lakes, rivers and wells.
Recommended for use in the agricultural and industrial sectors.
The HFm 70C is suitable for those looking for high flow rates at the expense of low head values.
The flow rate ranges from 50 to 300 litres per minute while the head ranges from 15 to 29 metres.
Data sheet
- Jobs
- water supply, irrigation, cooling systems, tank transfer
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8
- Capacitor
- 25 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 15
- Max. head (m.)
- 29
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Height (cm)
- 26.9
- Width (cm)
- 37.3
- Depth (cm)
- 21.6
- Weight (Kg)
- 1.8
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- water supply, irrigation, cooling systems, tank transfer
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8
- Capacitor
- 25 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 300
- Min. head (m.)
- 15
- Max. head (m.)
- 29
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +90°C
Power supply and electrical parameters
- Motor voltage
- 230 V
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 26.9
- Width (cm)
- 37.3
- Depth (cm)
- 21.6
- Weight (Kg)
- 1.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
HFm models and performances - Medium ranges
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HF 70C-70B-70A-5 BM-5 AM
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
