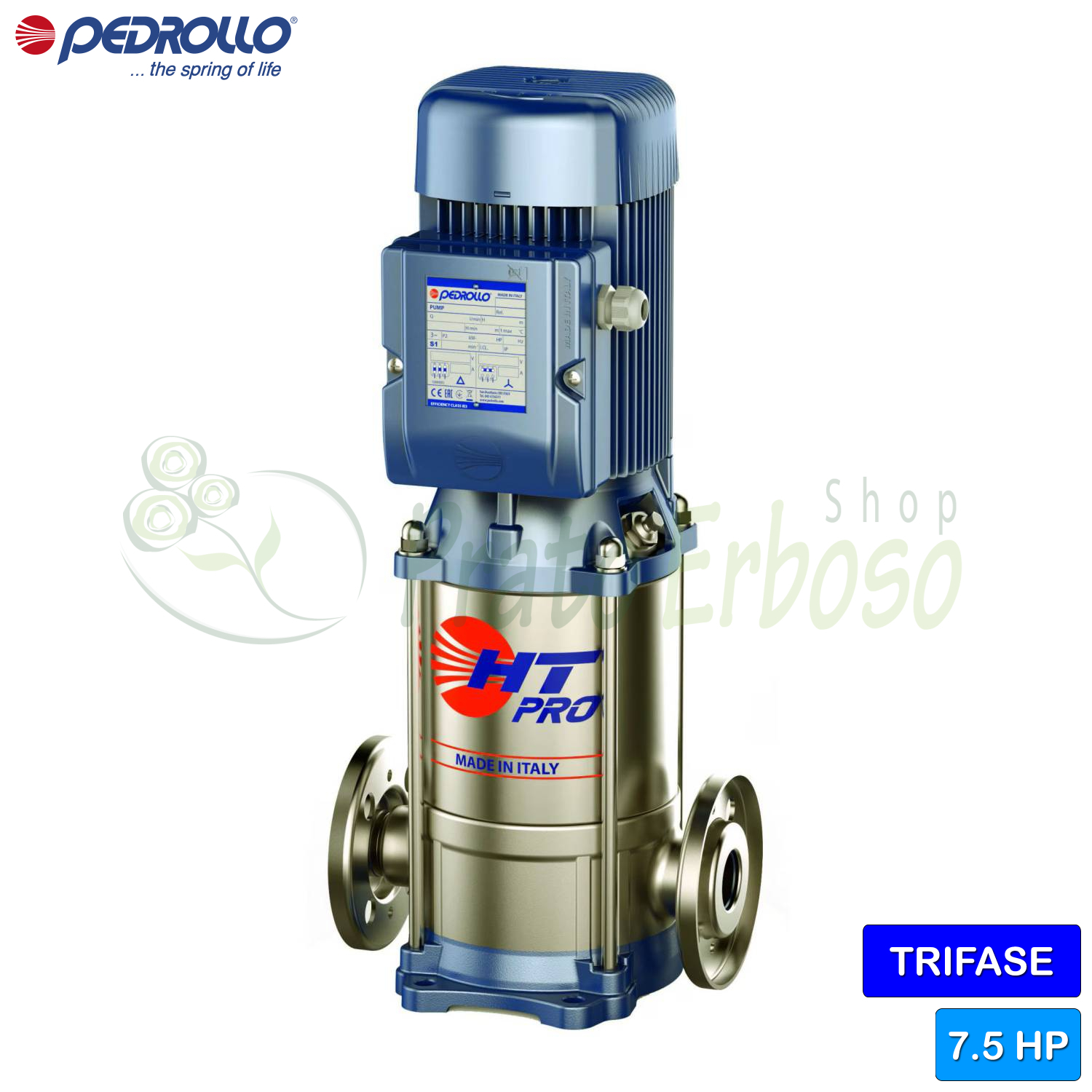

HT 15/4-PRO - 7.5 HP three-phase vertical multistage electric pump
Flow rate up to 400 l/min (24 m³/h). Head up to 96 m. 5.5 Kw (7.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The HT 15/4-PRO centrifugal electric pump from Pedrollo 's HT-PRO series boasts a multi-stage stainless steel construction that reduces operating noise.
It is particularly silent, a feature that makes it perfect for use in the domestic sector.
However, it can also be used in the agricultural and industrial sectors.
It can pump clean water and chemically non-corrosive liquids thanks to the internal components which Pedrollo has made entirely of stainless steel.
The HT 15/4-PRO can be used for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 36
- Max. head (m.)
- 96
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 36
- Max. head (m.)
- 96
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-KU-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
