-45%

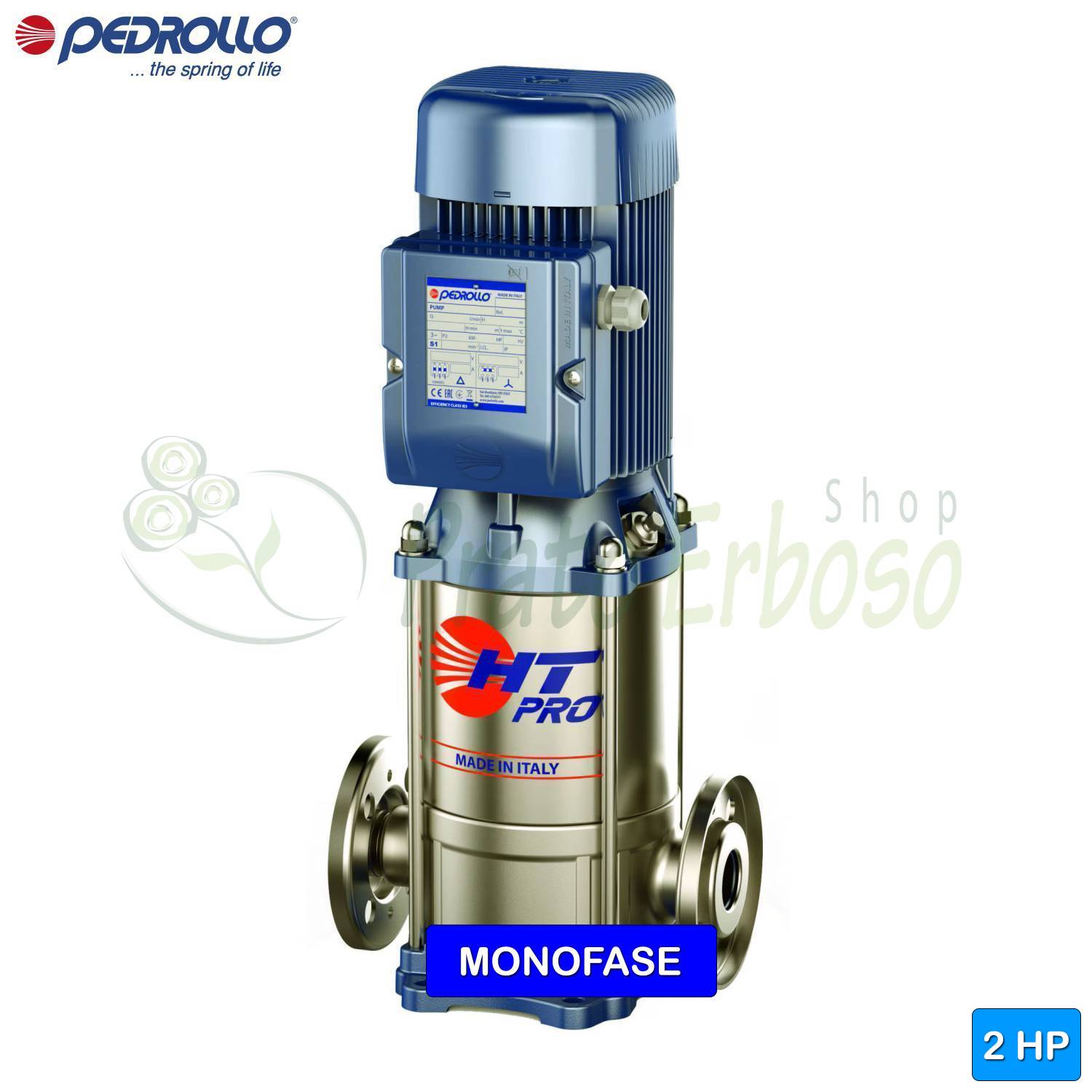

HTm 8/4-PRO - 2 HP single-phase vertical multistage electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 62.5 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HTm 8/4-PRO centrifugal electric pump from the HT-PRO series by Pedrollo can pump clean water and liquids that are chemically non-aggressive for the components.
It guarantees high performance combined with good reliability, making it an ideal choice in the domestic, civil, agricultural and industrial sectors.
It is particularly recommended for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Pedrollo used AISI 304 and 431 stainless steel to create the HTm 8/4-PRO which guarantees long life and high performance.
The multi-stage stainless steel construction ensures long component life and reduces noise.
Data sheet
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 23
- Max. head (m.)
- 62.5
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Warranty (years)
- 2
Data sheet
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 23
- Max. head (m.)
- 62.5
Installation and connections
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
Packaging, maintenance, and warranty
- Warranty (years)
- 2
HTM 8 - PRO models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 3 PRO series
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 HTm 8/4-PRO - 2 HP single-phase vertical multistage electric pumpThis product Flow rate up to 200 l/min (12 m³/h). Head up to 62.5 m. 1.5 Kw (2 HP) motor. |  HTm 8/4 - 2 HP single-phase vertical multistage electric pump Flow rate up to 200 l/min (12 m³/h). Head up to 62.5 m. 1.5 Kw (2 HP) motor. |  MKm 8/5 - 2 HP single-phase vertical multistage electric pump Flow rate up to 180 l/min (10.8 m³/h) Head up to 70 m Motor 1.5 Kw (2 HP) | |
|---|---|---|---|
| Price | Price €2,088.64 -45% €1,148.75 | Price €1,392.02 -45% €765.61 | Price €863.76 -42% €500.98 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation, washing systems, fire prevention systems |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.5 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) 9.5 |
| Capacitor | Capacitor -- | Capacitor -- | Capacitor 45 µF 450 VL |
| Pump body | Pump body AISI 304 stainless steel | Pump body Cast iron | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller Noryl |
| Number of impellers | Number of impellers 3 | Number of impellers 3 | Number of impellers 5 |
| Crankshaft | Crankshaft -- | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 40 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 180 |
| Min. head (m.) | Min. head (m.) 23 | Min. head (m.) 23 | Min. head (m.) 15.5 |
| Max. head (m.) | Max. head (m.) 62.5 | Max. head (m.) 62.5 | Max. head (m.) 70 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) 40 |
| Degree of protection | Degree of protection -- | Degree of protection -- | Degree of protection IP 44 |
| Suction mouth | Suction mouth 1" 1/2 | Suction mouth 1" 1/2 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) 50.4 |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) 18.5 |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) 22.3 |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) 23.6 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
