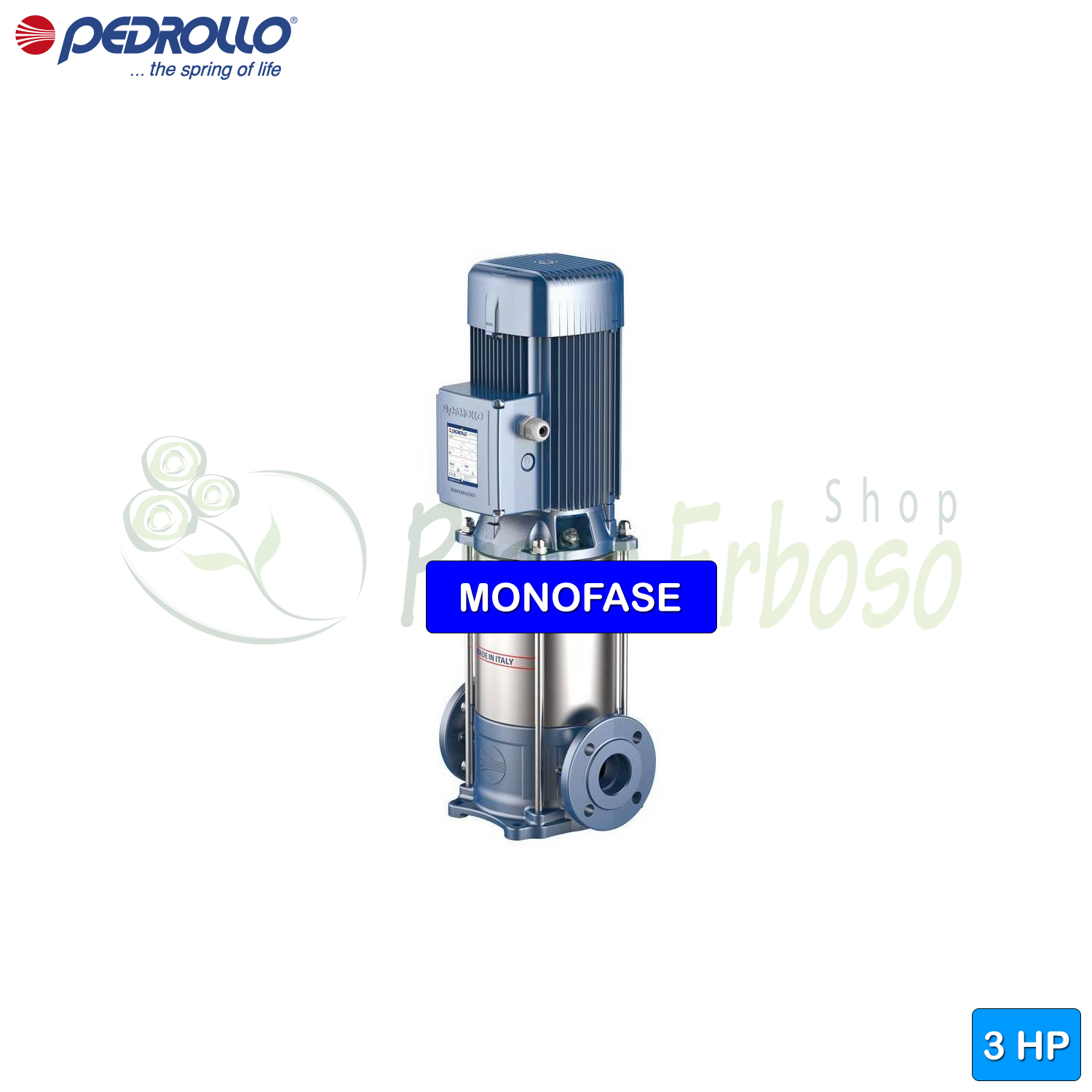

HTm 8/6 - 3 HP single-phase vertical multistage electric pump

Name: HTm 8/6 - 3 HP single-phase vertical multistage electric pump
Brand: Pedrollo
SKU: HTm 8/6
Price: 855.53 EUR
Availability: InStock

Flow rate up to 200 l/min (12 m³/h). Head up to 94 m. 2.2 Kw (3 HP) motor.

Variants:

Order it before 23:59 and receive it on Thursday 22 October with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 22 October - Friday 23 October
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 22 October - Friday 23 October
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 23 October - Monday 26 October
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 October

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October - Friday 23 October

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 23 October - Monday 26 October

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 October

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The HTm 8/6 centrifugal electric pump from the HT series by Pedrollo guarantees high efficiency and great adaptability.

It can be used in the domestic, civil and industrial sectors, in particular for the distribution of water in combination with pressure tanks, for increasing network pressure, for fire-fighting systems, for washing and irrigation systems.

The construction of the electric pump is solid and resistant and the materials are premium with a mix of cast iron and AISI 304 and 431 stainless steel.

The HTm 8/6 is particularly quiet, even during the most intense work sessions thanks to its multi-stage construction.

Data sheet

Jobs: fire prevention systems, washing systems, irrigation, pressurization systems, water supply
Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 3
Check valve: No
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 200
Min. head (m.): 34.5
Max. head (m.): 94
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Warranty (years): 2

Attachments

HT technical sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo HT series pumps.

Download (580.22KB)

Data sheet

Use and formulation of products

Jobs: water supply, pressurization systems, irrigation, washing systems, fire prevention systems

Engine and mechanical performance

Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3

Pump components and construction

Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 3
Check valve: No

Hydraulic performance and filtration

Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 200
Min. head (m.): 34.5
Max. head (m.): 94

Installation and connections

Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2

Packaging, maintenance, and warranty

Warranty (years): 2

HTM 8 models and performance

GUY

single phase

HTm 8/3

HTm 8/4

HTm 8/5

HTm 8/6

POWER
KW	HP
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
20 ÷ 200	44 ÷ 13
20 ÷ 200	58 ÷ 18
20 ÷ 200	73 ÷ 21.5
20 ÷ 200	87 ÷ 26

MOUTH
wait.	send.
1 1/2"	1 1/2"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8	12.0
Q	l/min	0	20	40	60	80	100	120	140	160	180	200
H	meters	44	43	41.5	39.5	37	34	30.5	26.8	22.6	17.9	13
		58	58	55	52.5	49.5	45.5	41	35.5	30	23.9	18
		73	71.5	69	66	61.5	57	51	44.5	37.5	30	21.5
		87	85.5	83	79	74	68	61.5	53.5	45	36	26

Construction data of the HT 5/6

Bearings

Pump side motor bearing	6307 2RS-C3
Opposite side engine bearing	6206 2RS-C3

Tree holding

Type of seal	Single Mechanical Seal
Shrinkage DN1=450 DN2=350	FN-18
LP diameter	18
LP fixed ring	Graphite
LP rotating ring	Ceramic
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 250 EN 1561
2.0 - Lid	Cast iron GJL 250 EN 1561
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
