AFL696 - 2 1/2" Hydrocyclone

Reference AFL696

DIN 65 connection.

Make an Offer

Your proposed offer

Proposed unit price
—
Quantity
—
Proposed product total
—

Product amounts only, excluding shipping. Final conditions are checked when you send the offer.

Close
  • Telephone support for information before purchasing.
  • After-sales assistance for product installation.
Description

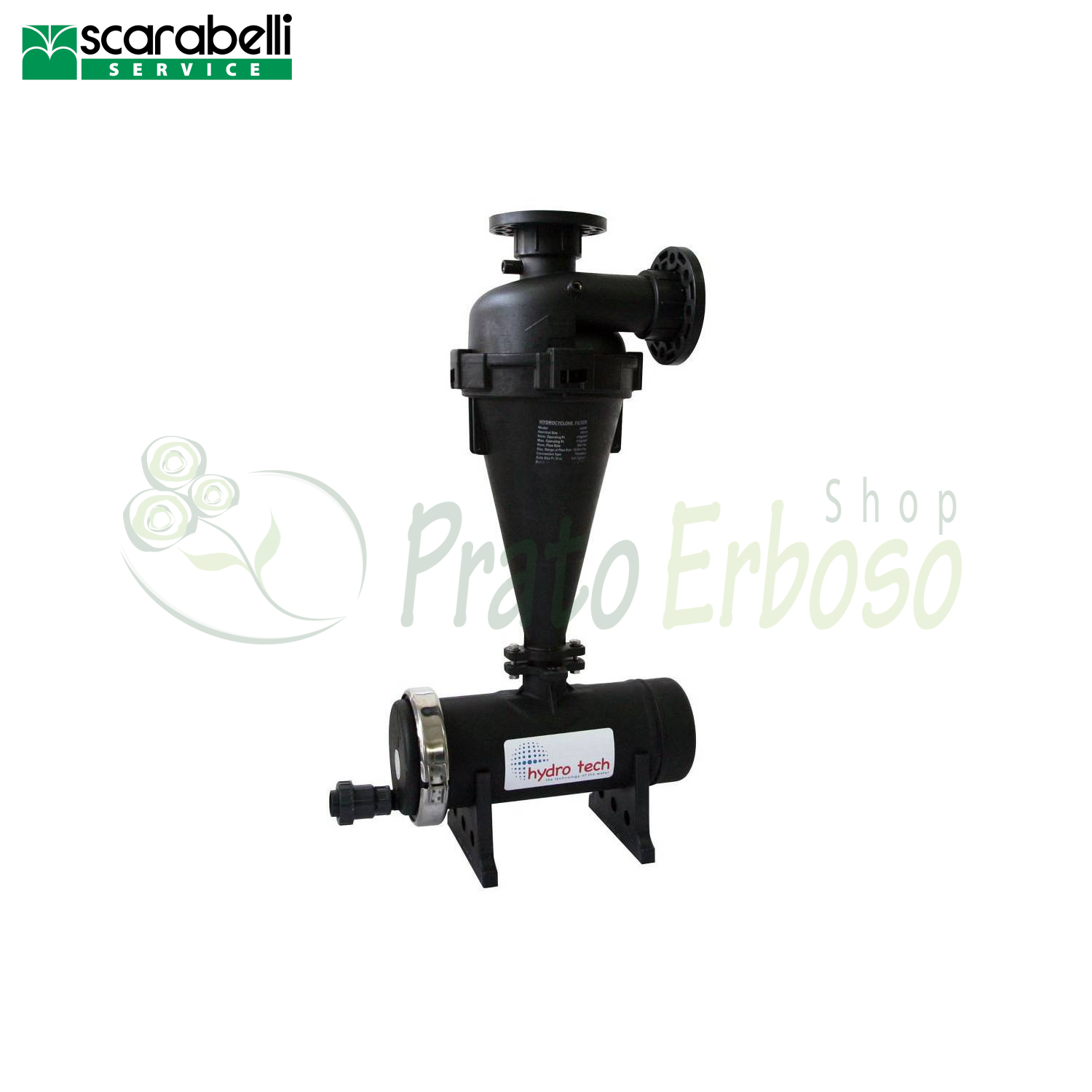

The AFL696 S Series plastic filter is able to remove large quantities of sand, slag and solid particles from the water by exploiting the centrifugal force.

The water enters the filter tangentially to the body, the sand and solid particles heavier than water are pushed against the conical wall of the body by centrifugal force and collect in the special tank located in the lower part, while the clean water it rises from the central part of the body.

The particular shape of the entry into the hydrocyclone facilitates the formation of the water cyclone, such as to obtain the best separation of the sand from the water, moreover, thanks to the quick assembly system, it can be completely inspected.

The filter body is entirely made of plastic.

The inlet and outlet connections are flanged in size DIN 65.

Data sheet
Reference AFL696
Minimum flow rate (l./min.)
420
Max. flow rate (l./min.)
660
Attack size
2 - 1 1/2"
Height (cm)
89.4
Width (cm)
39.5
Attachments

AFL690X Technical Data Sheet

Technical data sheet of the characteristics and dimensions of the plastic hydrocyclones of the S AFL690X series by Scarabelli

Download (621.44KB)

Data sheet

Hydraulic performance and filtration

Minimum flow rate (l./min.)
420
Max. flow rate (l./min.)
660

Installation and connections

Attack size
2 - 1 1/2"

Dimensions and weight

Height (cm)
89.4
Width (cm)
39.5
