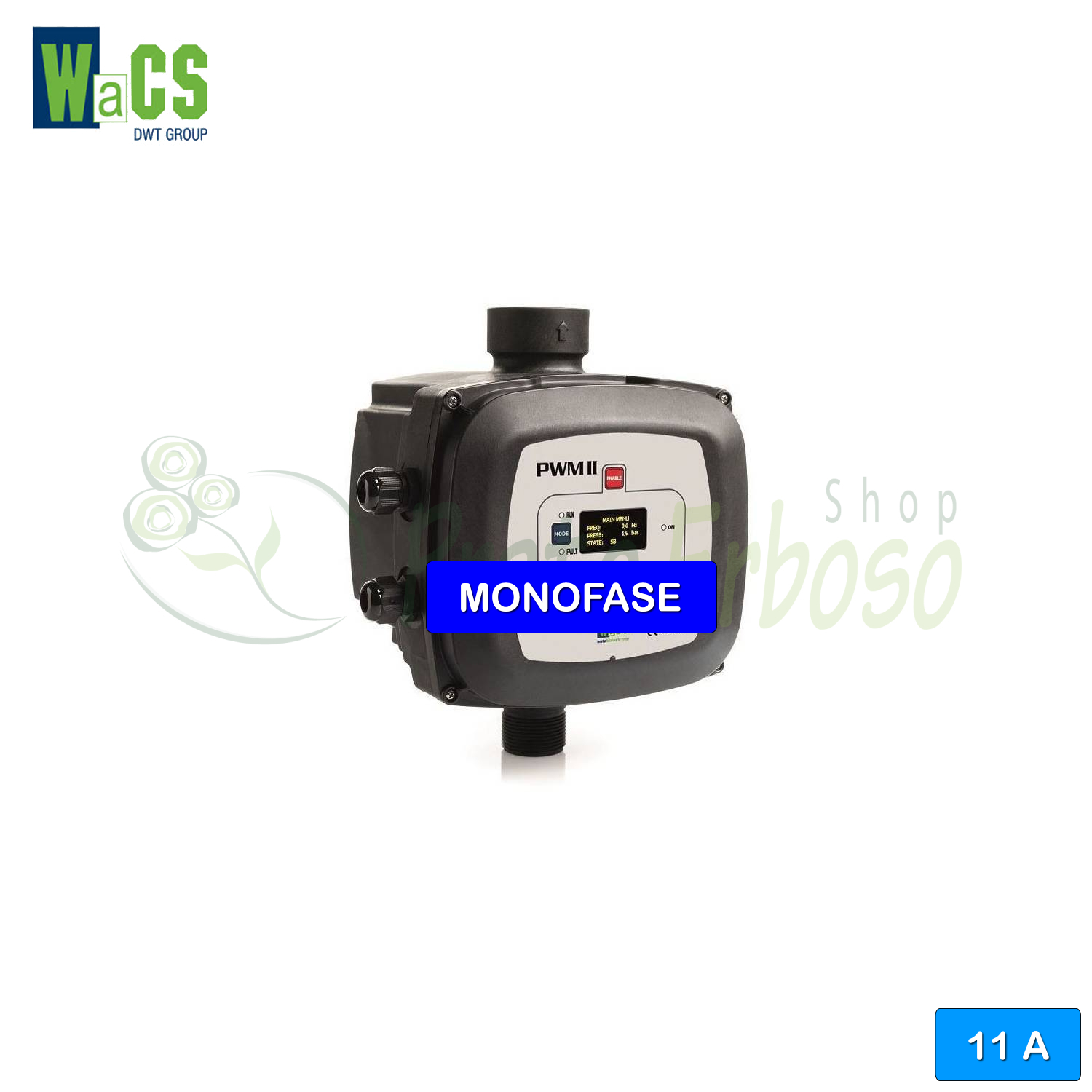

PWM II 230 1 Basic DV/11 - 11 A single-phase inverter
For single-phase pumps up to 2 HP. Single-phase/single-phase.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The WaCS PWM II 230 1 Basic DV/11 inverter for electric pumps maintains constant pressure as the flow varies by regulating the pump speed.
It has a flow sensor and a pressure sensor inside that allow it to know the operating conditions of the system instant by instant, ensuring constant pressure as conditions change.
The PWM II 230 1 Basic DV/11 inverter combines comfort and savings, integrates all the necessary protections for a pump, and is simple to install and configure. It guarantees maximum silence of the pump and an increase in its average life.
It can drive any type of pump and energy savings can reach up to 60%.
The PWM II 230 1 Basic DV/11 uses single-phase power for single-phase pumps up to 2 HP delivering a maximum current of 11 amps.
Ideal for domestic applications, especially where it is necessary to replace a pressure tank without changing the pump.
The inverter is supplied with input cables with a Schuko plug to connect to the electrical current and output cables with a Schuko socket to connect the pump.
- Power (HP)
- 2
- Max. flow rate (l./min.)
- 300
- Max. working pressure (bar)
- 16
- Max. liquid temperature (°C)
- 50
- Output Voltage (Volts)
- 1 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 11
- Motor phase frequency (Hz)
- 50, 60
- Degree of protection
- IP 55
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- 3.5
- Warranty (years)
- 2
Engine and mechanical performance
- Power (HP)
- 2
Hydraulic performance and filtration
- Max. flow rate (l./min.)
- 300
- Max. working pressure (bar)
- 16
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 50
Power supply and electrical parameters
- Output Voltage (Volts)
- 1 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 11
- Motor phase frequency (Hz)
- 50, 60
Safety and protection
- Degree of protection
- IP 55
- Overcurrent protection
- No
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/2
Dimensions and weight
- Height (cm)
- 28.2
- Width (cm)
- 23.7
- Depth (cm)
- 18.4
- Weight (Kg)
- 3.5
Packaging, maintenance, and warranty
- Warranty (years)
- 2
