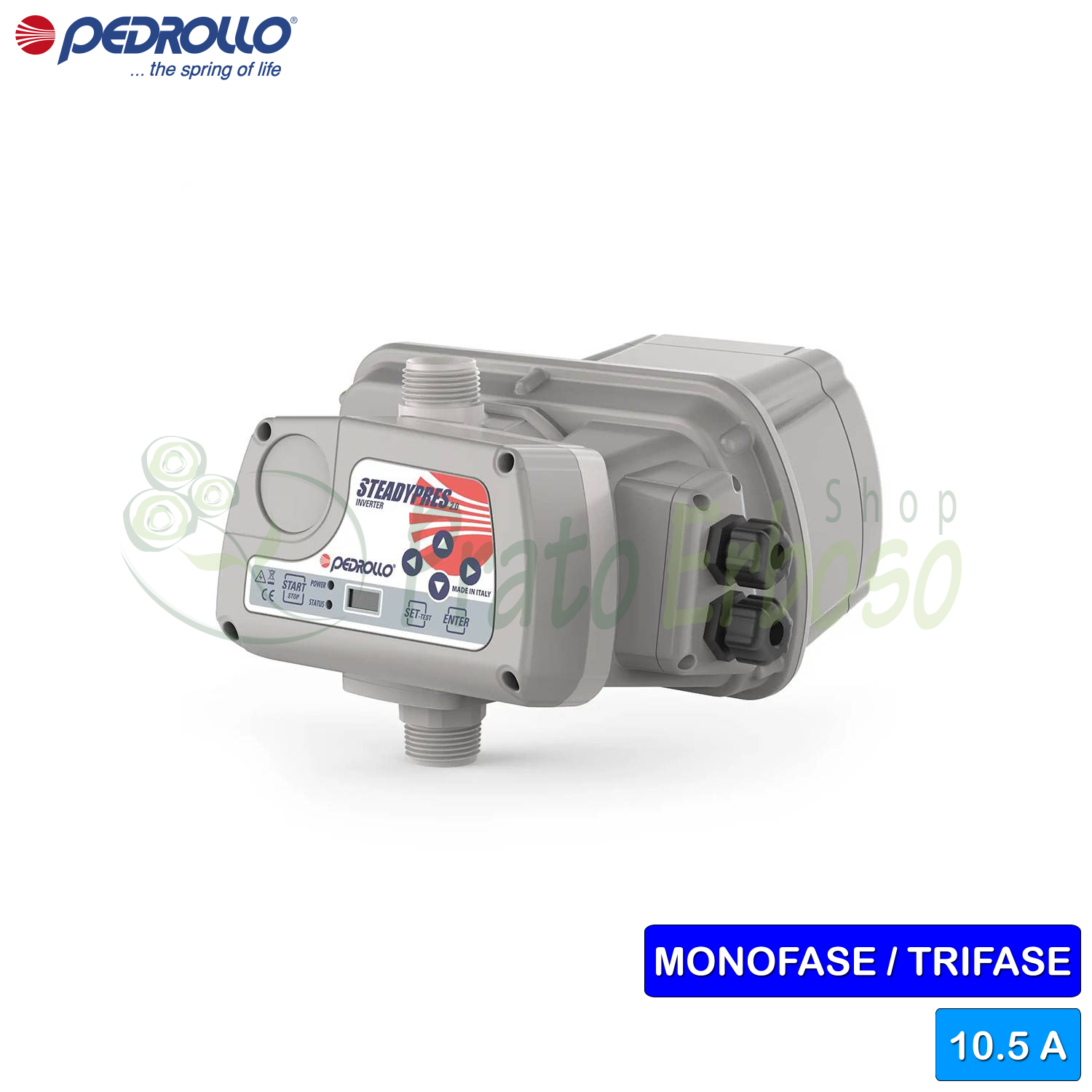

STEADYPRES MT 10 - 10.5 A single-phase/three-phase inverter
For three-phase pumps up to 3 HP. Single-phase/three-phase.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The STEADYPRES MT 10 inverter from Pedrollo is used for water supply in residential, commercial and irrigation sectors.
It is applied to the delivery of the electric pump and modulates the output voltage value, allowing the motor speed to be varied based on the quantity of water required.
Flexible in its use, it adapts to any type of pressurization system, even existing ones.
The STEADYPRES MT 10 consists of a frequency converter, pressure and flow sensor, panel with keypad and display and a non-return valve.
It has several features that allow you to protect the system from dry running, overcurrent, overvoltage, undervoltage and short circuits.
Easy and simple both in installation and programming thanks to the comfortable keypad and display and the intuitive user interface.
- Power (HP)
- 3
- Max. working pressure (bar)
- 10
- Max. liquid temperature (°C)
- 55
- Output Voltage (Volts)
- 3 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- three-phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 10.5
- Motor phase frequency (Hz)
- 50, 60
- Degree of protection
- IP 55
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Height (cm)
- 23.5
- Width (cm)
- 27.9
- Depth (cm)
- 24.1
- Weight (Kg)
- 3
- Warranty (years)
- 2
Engine and mechanical performance
- Power (HP)
- 3
Hydraulic performance and filtration
- Max. working pressure (bar)
- 10
Liquids and pumping conditions
- Max. liquid temperature (°C)
- 55
Power supply and electrical parameters
- Output Voltage (Volts)
- 3 x 230
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Engine power supply
- three-phase
- Motor voltage
- 230 V
- Motor Phase Current (Amperes)
- 10.5
- Motor phase frequency (Hz)
- 50, 60
Safety and protection
- Degree of protection
- IP 55
- Overcurrent protection
- Yes
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- Yes
Installation and connections
- Suction mouth
- 1"
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 23.5
- Width (cm)
- 27.9
- Depth (cm)
- 24.1
- Weight (Kg)
- 3
Packaging, maintenance, and warranty
- Warranty (years)
- 2
Compare with Similar Products
 STEADYPRES MT 10 - 10.5 A single-phase/three-phase inverterThis product For three-phase pumps up to 3 HP. Single-phase/three-phase. |  Active Driver Plus M/T 2.2 - 10.5 A single-phase/three-phase inverter For three-phase pumps up to 3 HP. Single-phase/three-phase. |  PWM II 230 D/10.5 - 10.5 A single-phase/three-phase inverter For three-phase pumps up to 3 HP. Single-phase/three-phase. | |
|---|---|---|---|
| Price | Price €833.26 -42% €483.29 | Price €774.70 | Price €774.70 |
| Power (HP) | Power (HP) 3 | Power (HP) 3 | Power (HP) 3 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) -- | Max. flow rate (l./min.) 300 | Max. flow rate (l./min.) 300 |
| Max. working pressure (bar) | Max. working pressure (bar) 10 | Max. working pressure (bar) 13 | Max. working pressure (bar) 300 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 55 | Max. liquid temperature (°C) 50 | Max. liquid temperature (°C) 60 |
| Output Voltage (Volts) | Output Voltage (Volts) 3 x 230 | Output Voltage (Volts) 3 x 230 | Output Voltage (Volts) 3 x 230 |
| Line power supply | Line power supply single-phase | Line power supply single-phase | Line power supply single-phase |
| Supply voltage (Volts) | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 | Supply voltage (Volts) 230 |
| Engine power supply | Engine power supply three-phase | Engine power supply three-phase | Engine power supply three-phase |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Motor Phase Current (Amperes) | Motor Phase Current (Amperes) 10.5 | Motor Phase Current (Amperes) 10.5 | Motor Phase Current (Amperes) 10.5 |
| Motor phase frequency (Hz) | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 | Motor phase frequency (Hz) 50, 60 |
| Degree of protection | Degree of protection IP 55 | Degree of protection IP 55 | Degree of protection IP 55 |
| Overcurrent protection | Overcurrent protection Yes | Overcurrent protection Yes | Overcurrent protection Yes |
| Amperometric protection | Amperometric protection Yes | Amperometric protection Yes | Amperometric protection Yes |
| Short circuit protection | Short circuit protection Yes | Short circuit protection Yes | Short circuit protection Yes |
| Dry running protection | Dry running protection Yes | Dry running protection Yes | Dry running protection Yes |
| Suction mouth | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Height (cm) | Height (cm) 23.5 | Height (cm) 28.2 | Height (cm) 28.2 |
| Width (cm) | Width (cm) 27.9 | Width (cm) 23.7 | Width (cm) 23.7 |
| Depth (cm) | Depth (cm) 24.1 | Depth (cm) 18.4 | Depth (cm) 18.4 |
| Weight (Kg) | Weight (Kg) 3 | Weight (Kg) 3.5 | Weight (Kg) 3.5 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
