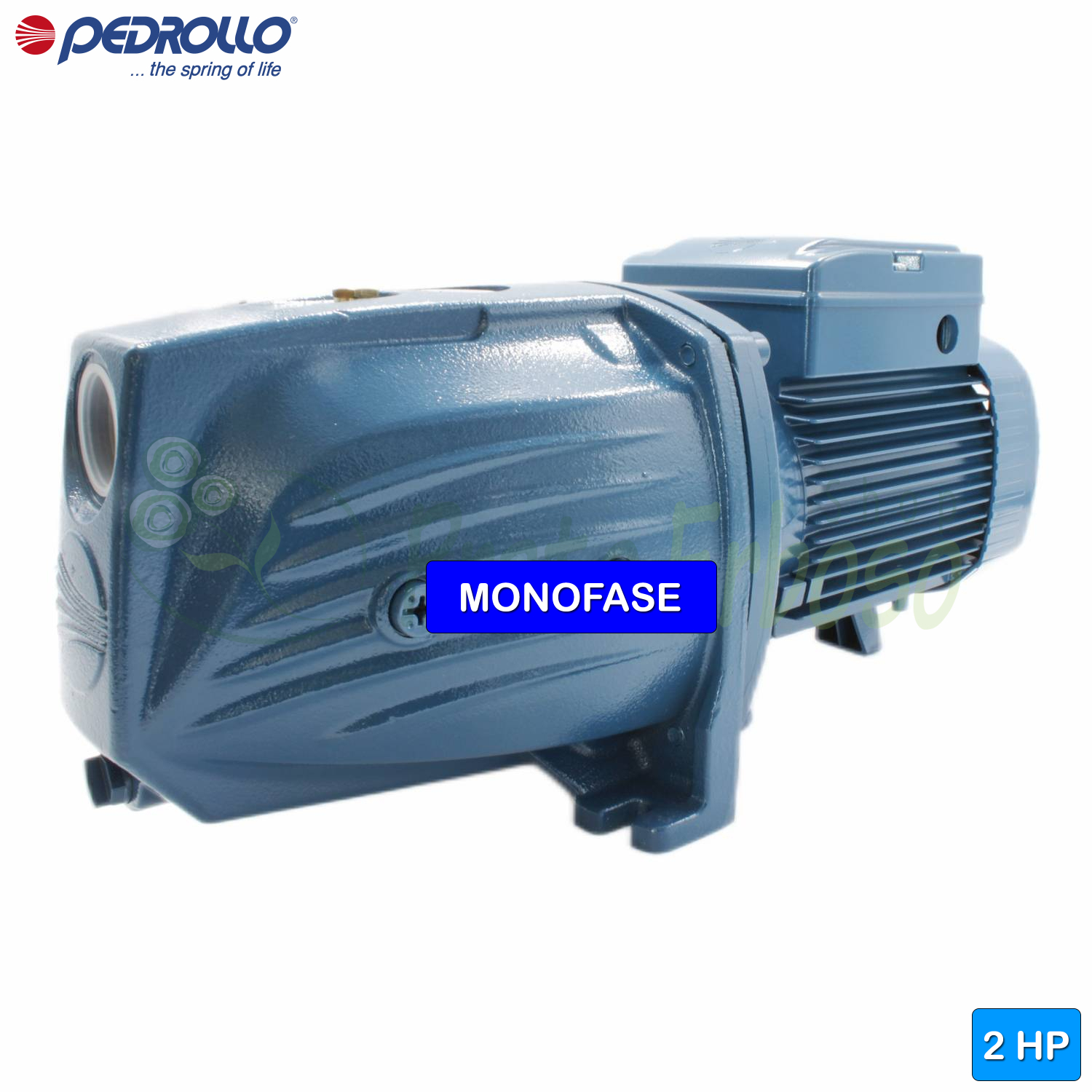

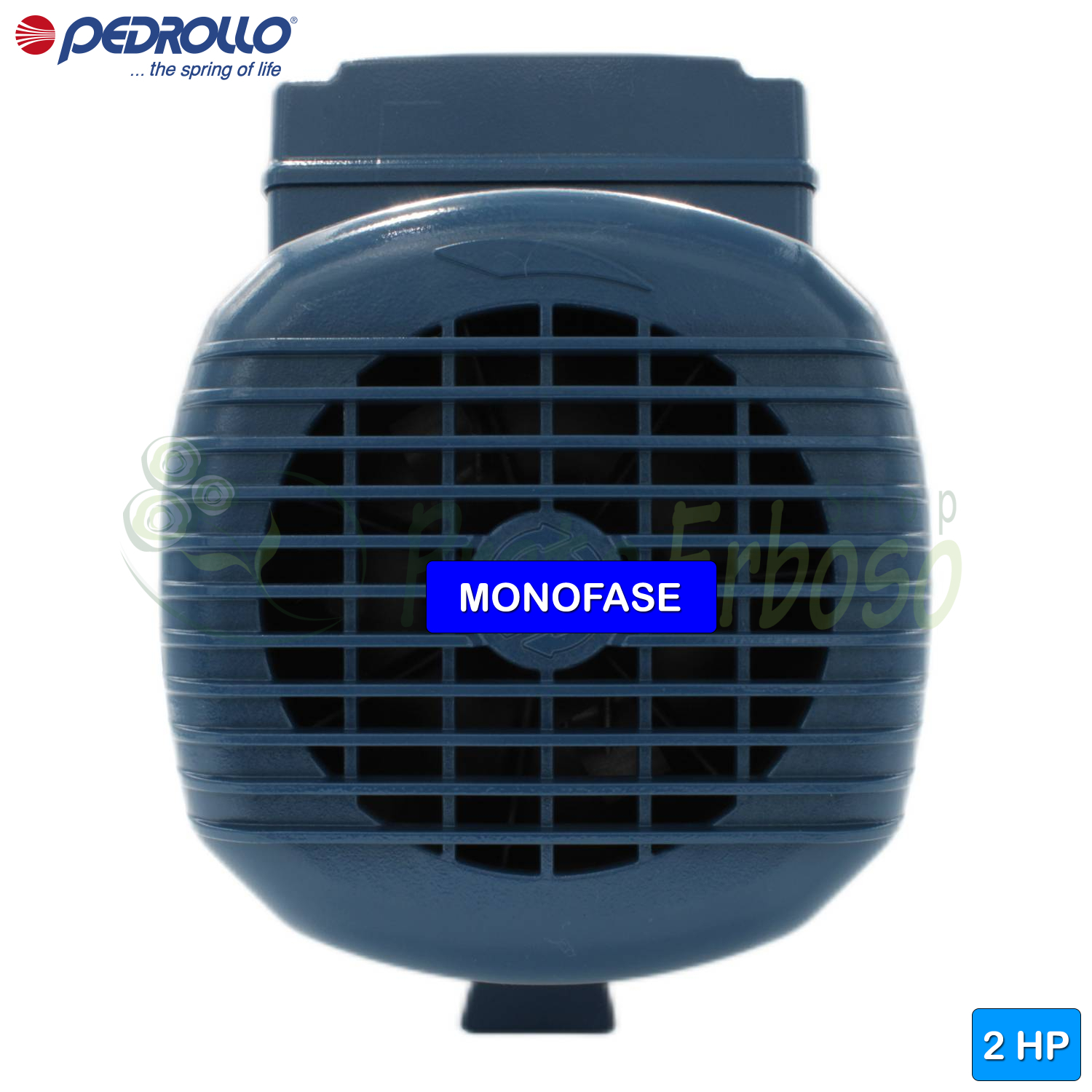

JSWm 3BM - 2 HP single-phase self-priming electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 63 m. 1.5 Kw (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The Pedrollo JSWm 3BM self-priming electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive towards the materials from which the pump is made.
Due to its reliability and ease of use, it is recommended for domestic use, especially for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens.
The JSW 3BM pump is designed to suck water even in the presence of air mixed with the pumped liquid.
Installation must be carried out indoors or in any case protected from the elements.
The JSWm 3BM pump has a head of up to 120 metres and a flow rate of up to 63 metres.
The pump is made entirely of cast iron, which guarantees good resistance and a long life.
- Jobs
- water supply, pressurization systems, irrigation, washing systems, tank transfer, fire prevention systems
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 9.7
- Capacitor
- 45 µF 450 VL
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 30
- Max. head (m.)
- 63
- Max. liquid temperature (°C)
- +40°C
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Height (cm)
- 24.1
- Width (cm)
- 20.6
- Depth (cm)
- 52.2
- Weight (Kg)
- 26.5
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, washing systems, tank transfer, fire prevention systems
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 9.7
- Capacitor
- 45 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 30
- Max. head (m.)
- 63
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 24.1
- Width (cm)
- 20.6
- Depth (cm)
- 52.2
- Weight (Kg)
- 26.5
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
