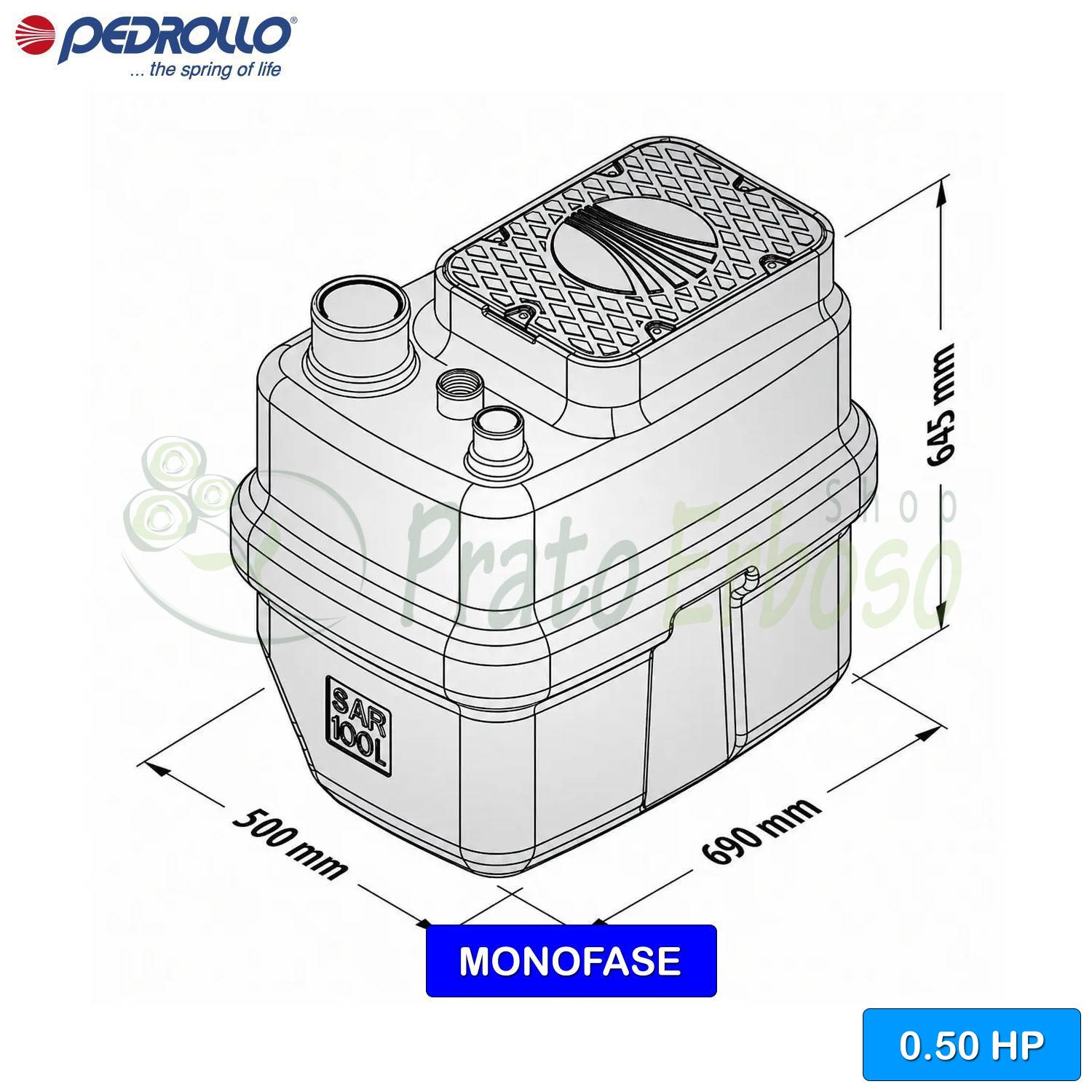

SAR 100-TOP 2 - 0.50 HP rainwater lifting station
100-liter tank. Pedrollo TOP 2 pump. Discharge flow rate up to 220 l/min (13.2 m³/h). Head up to 8 m. 0.37 kW (0.50 HP) motor.
-
Telephone support for information before purchasing. -
After-sales assistance for product installation.
The SAR 100-TOP 2 lifting station from the SAR 100 series by Pedrollo is suitable for the drainage of clear waste water.
Recommended for collecting and lifting water from domestic drains such as washing machines, dishwashers, sinks and toilets.
Suitable where the sewer system is excessively distant or not reachable by gravity.
Its compact size makes it perfect for floor or underground installations in the home environment.
The SAR 100-TOP 2 lifting station includes a TOP 2 single-phase electric pump, a 100-litre polyethylene tank and a 10-metre cable.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2
- Pump body
- Technopolymer
- Impeller
- Noryl
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- Yes
- Max. flow rate (l./min.)
- 220
- Max. head (m.)
- 8
- Tank capacity (liters)
- 100
- Degree of protection
- IP 68
- Delivery mouth
- 1" 1/4
- Height (cm)
- 64.5
- Width (cm)
- 50
- Weight (Kg)
- 28.7
- Warranty (years)
- 2
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2
Pump components and construction
- Pump body
- Technopolymer
- Impeller
- Noryl
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- Yes
Hydraulic performance and filtration
- Max. flow rate (l./min.)
- 220
- Max. head (m.)
- 8
Tanks and range
- Tank capacity (liters)
- 100
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 1" 1/4
Dimensions and weight
- Height (cm)
- 64.5
- Width (cm)
- 50
- Weight (Kg)
- 28.7
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
