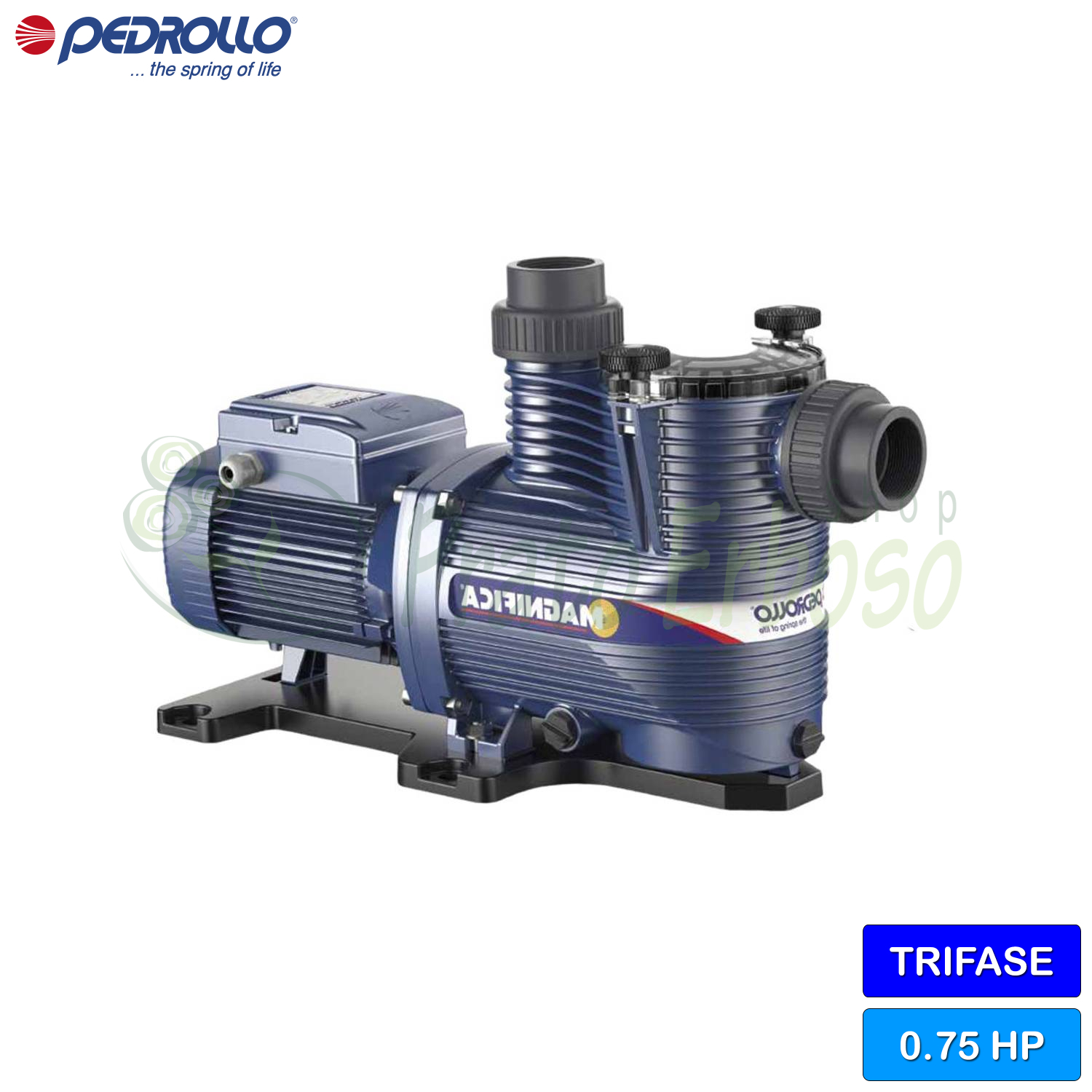

MAGNIFICA 1 - 0.75 HP Three-Phase Pool Pump
Flow rate up to 350 l/min (21 m³/h). Head up to 14.5 m. 0.55 Kw (0.75 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The self-priming electric pump with pre-filter MAGNIFICA 1 by Pedrollo is suitable for the circulation and filtering of swimming pool water, especially for those requiring large flow rates.
It has a flow rate that varies from 100 to 350 litres per minute with a head of 4 to 14.5 metres.
It is recommended for pools up to 180 cubic meters. Pool water with pH 6.5 – 8.4.
Installation should be carried out in well-ventilated areas protected from the elements with adequate space for maintenance.
- Jobs
- circulation in the pool
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.8
- Capacitor
- 20 µF 450 VL
- Impeller
- Noryl
- Number of impellers
- 1
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 4
- Max. head (m.)
- 14.5
- Max. liquid temperature (°C)
- +45°C
- Degree of protection
- IP 55
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Height (cm)
- 35.3
- Width (cm)
- 23.5
- Depth (cm)
- 58.3
- Weight (Kg)
- 14.1
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- circulation in the pool
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.8
- Capacitor
- 20 µF 450 VL
Pump components and construction
- Impeller
- Noryl
- Number of impellers
- 1
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 4
- Max. head (m.)
- 14.5
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +45°C
Safety and protection
- Degree of protection
- IP 55
Installation and connections
- Suction mouth
- 2"
- Delivery mouth
- 2"
Dimensions and weight
- Height (cm)
- 35.3
- Width (cm)
- 23.5
- Depth (cm)
- 58.3
- Weight (Kg)
- 14.1
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
