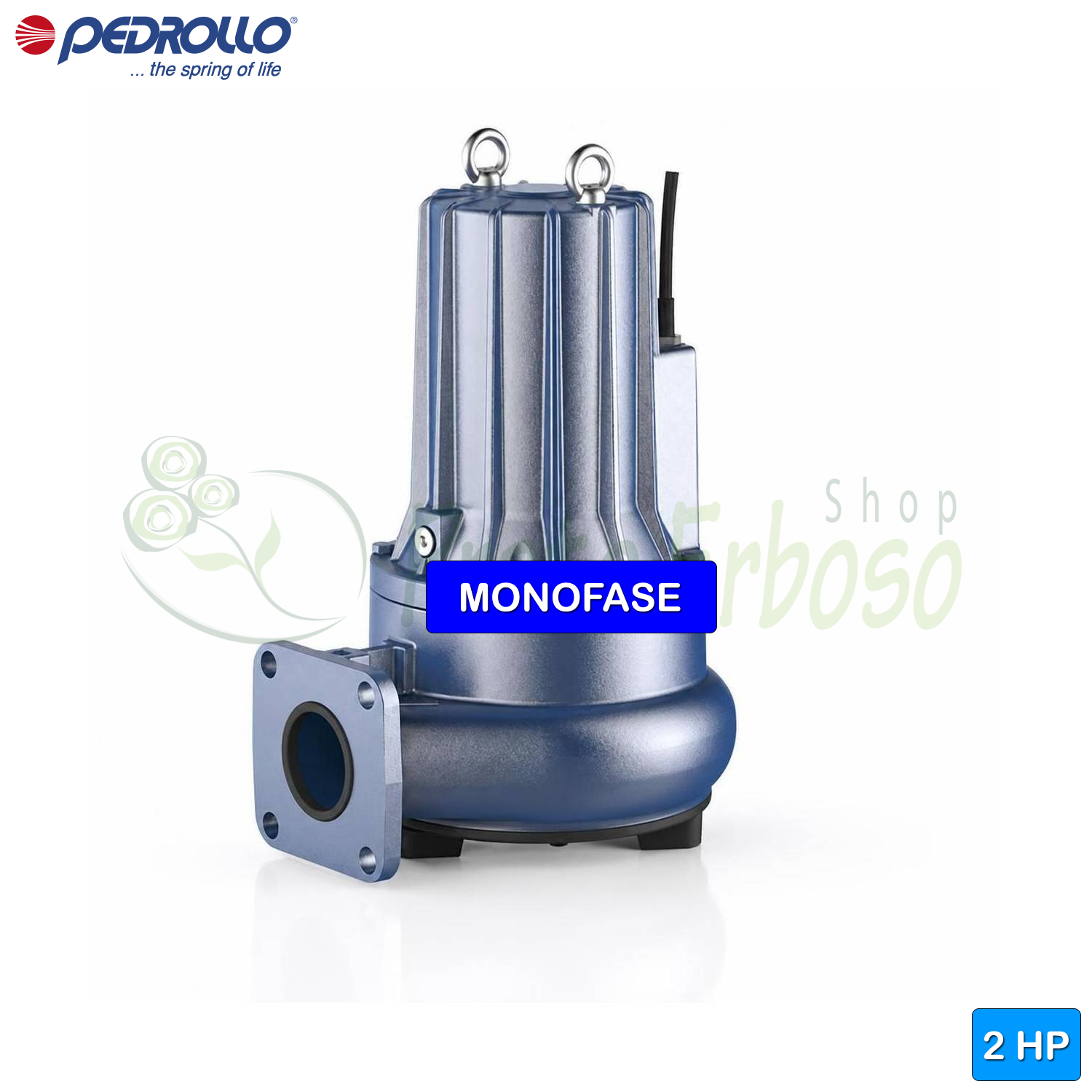

MCm 20/50-F - 2 HP single-phase, dual-channel electric pump for waste water
Flow rate up to 900 l/min (54 m³/h). Head up to 18 m. 1.5 kW (2 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The MCm 20/50-F submersible electric pump from the MC-F series by Pedrollo stands out for its performance and reliability.
Recommended for installations in the civil and industrial sectors.
It is particularly suitable for applications in condominiums, public buildings, industries, multi-storey car parks, underground car parks and washing areas.
It can be installed up to 10 meters below the water level. For continuous operation, it requires a minimum immersion depth of 320 mm.
The MCm 20/50-F is the right choice if you are looking for a high-quality product.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 10.5
- Capacitor
- 50 µF 450 VL
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 900
- Min. head (m.)
- 1
- Max. head (m.)
- 18
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 2" 1/2
- Height (cm)
- 44.2
- Weight (Kg)
- 38.4
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Absorption at 230V (A)
- 10.5
- Capacitor
- 50 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 900
- Min. head (m.)
- 1
- Max. head (m.)
- 18
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 2" 1/2
Dimensions and weight
- Height (cm)
- 44.2
- Weight (Kg)
- 38.4
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 MCm 20/50-F - 2 HP single-phase, dual-channel electric pump for waste waterThis product Flow rate up to 900 l/min (54 m³/h). Head up to 18 m. 1.5 kW (2 HP) motor. |  VXC 20/50-F - 2 HP three-phase VORTEX electric pump for waste water Flow rate up to 700 l/min (42 m³/h) Head up to 13.5 m. 1.5 Kw (2 HP) motor | |
|---|---|---|
| Price | Price €1,499.38 -42% €869.64 | Price €1,345.66 -42% €780.48 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 2 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) 10.5 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 4.2 |
| Capacitor | Capacitor 50 µF 450 VL | Capacitor 20 µF 450 VL |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 900 | Max. flow rate (l./min.) 700 |
| Min. head (m.) | Min. head (m.) 1 | Min. head (m.) 2.5 |
| Max. head (m.) | Max. head (m.) 18 | Max. head (m.) 13.5 |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Height (cm) | Height (cm) 44.2 | Height (cm) 44.2 |
| Weight (Kg) | Weight (Kg) 38.4 | Weight (Kg) 36.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
