MCm 10/45 - 1 HP single-phase, dual-channel electric sewage pumps
Flow rate up to 600 l/min (36 m³/h). Head up to 12 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October

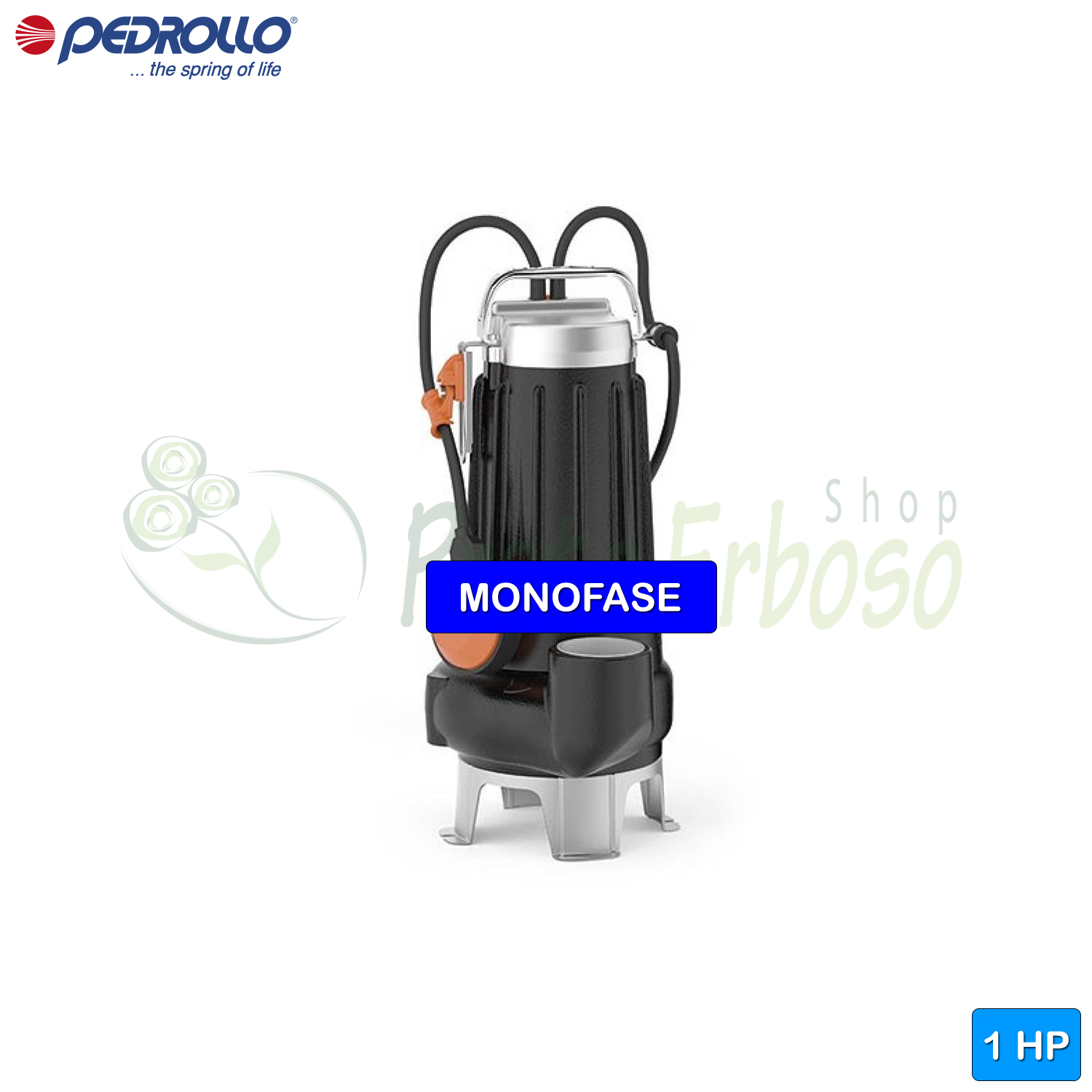

The MCm 10/45 submersible electric pump from Pedrollo 's MC series is the right choice when looking for a robust and reliable product.
The dual-channel impeller allows the drainage of water with solids with a diameter of up to 50 millimetres.
The MCm 10/45 is recommended for domestic and civil installations in the case of waste water.
It can be installed up to 10 meters below the water level. The minimum immersion depth for continuous service is 305 mm.
The supplied cable is 10 meters long.
- Jobs
- drainage, drying up, slightly dirty waters
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF 450 VL
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2
- Max. head (m.)
- 12
- Max. liquid temperature (°C)
- +40°C
- Cable length (m.)
- 10
- Degree of protection
- IP 68
- Delivery mouth
- 2"
- Height (cm)
- 41.3
- Weight (Kg)
- 18.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- drainage, drying up, slightly dirty waters
Engine and mechanical performance
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF 450 VL
Pump components and construction
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2
- Max. head (m.)
- 12
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Power supply and electrical parameters
- Cable length (m.)
- 10
Safety and protection
- Degree of protection
- IP 68
Installation and connections
- Delivery mouth
- 2"
Dimensions and weight
- Height (cm)
- 41.3
- Weight (Kg)
- 18.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | MG1-14D SIC |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
