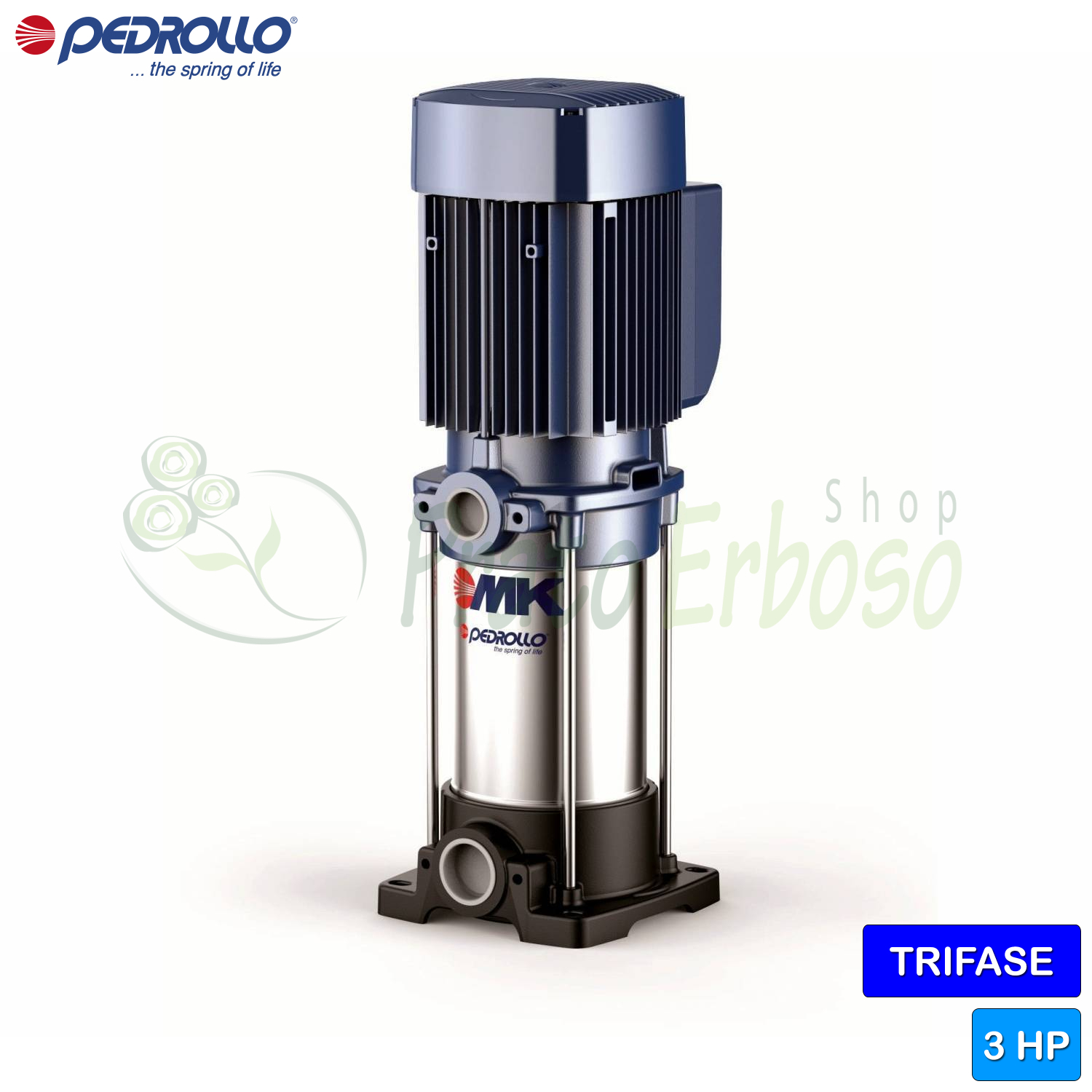

MK 8/6 - 3 HP three-phase vertical multistage electric pump
Flow rate up to 180 l/min (10.8 m³/h). Head up to 84 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 22 October - Friday 23 October |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 22 October - Friday 23 October |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 23 October - Monday 26 October |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 22 October |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October - Friday 23 October
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 23 October - Monday 26 October
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 22 October
The MK 8/6 multi-impeller centrifugal electric pump from the MK series by Pedrollo has a horsepower of 3 HP.
It must be powered by single-phase voltage. The temperature of the liquid being pumped ranges from -10 degrees Celsius to +60 degrees Celsius.
The flow rate ranges from 40 to 180 meters and the head from 18.5 to 84 liters. The maximum pressure of the pump body is 11 bar .
The MK 8/6 are recommended for the agricultural, civil and domestic sectors.
Ideal for water supply, for the transfer of clean liquids, for the pressurization of domestic, civil and agricultural systems and for the irrigation of vegetable gardens and gardens.
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 8.7
- Current consumption at 400V (A)
- 5
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 6
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 18.5
- Max. head (m.)
- 84
- Max. liquid temperature (°C)
- +40°C
- Degree of protection
- IP 44
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Height (cm)
- 53.1
- Width (cm)
- 18.5
- Depth (cm)
- 22.3
- Weight (Kg)
- 22.8
- Warranty (years)
- 2
Use and formulation of products
- Jobs
- water supply, pressurization systems, irrigation, washing systems, fire prevention systems
Engine and mechanical performance
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 8.7
- Current consumption at 400V (A)
- 5
Pump components and construction
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 6
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
Hydraulic performance and filtration
- Minimum flow rate (l./min.)
- 40
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 18.5
- Max. head (m.)
- 84
Liquids and pumping conditions
- Max. liquid temperature (°C)
- +40°C
Safety and protection
- Degree of protection
- IP 44
Installation and connections
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
Dimensions and weight
- Height (cm)
- 53.1
- Width (cm)
- 18.5
- Depth (cm)
- 22.3
- Weight (Kg)
- 22.8
Packaging, maintenance, and warranty
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6304 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.1 - Suction Body | Cast iron GJL 200 EN 1561 |
| 1.2 - Pressing Body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | PTFE |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
