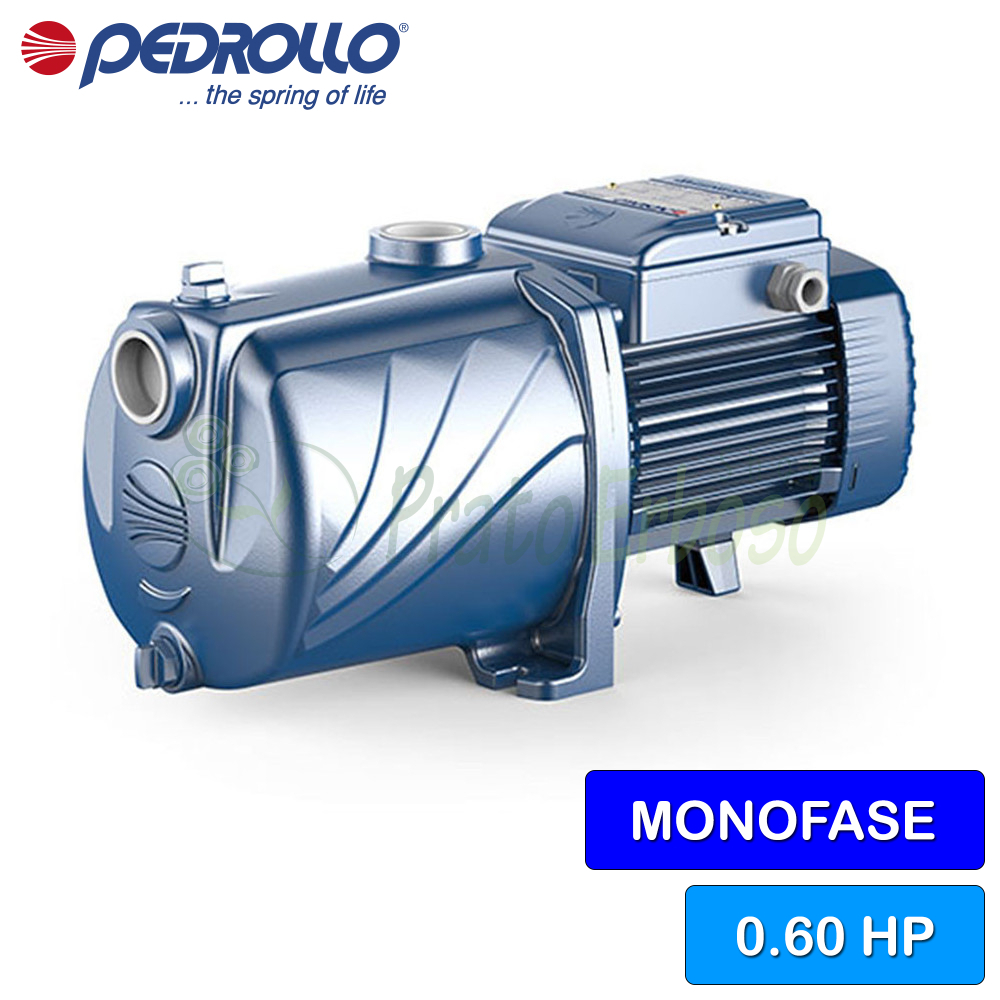

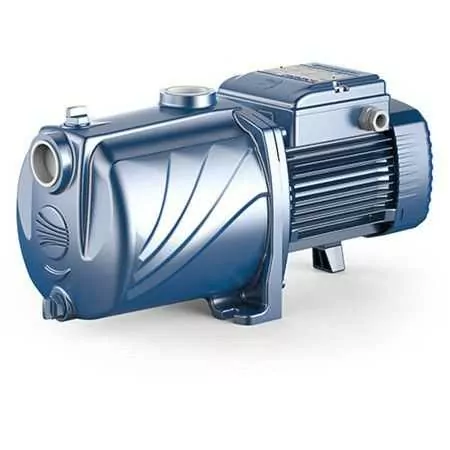

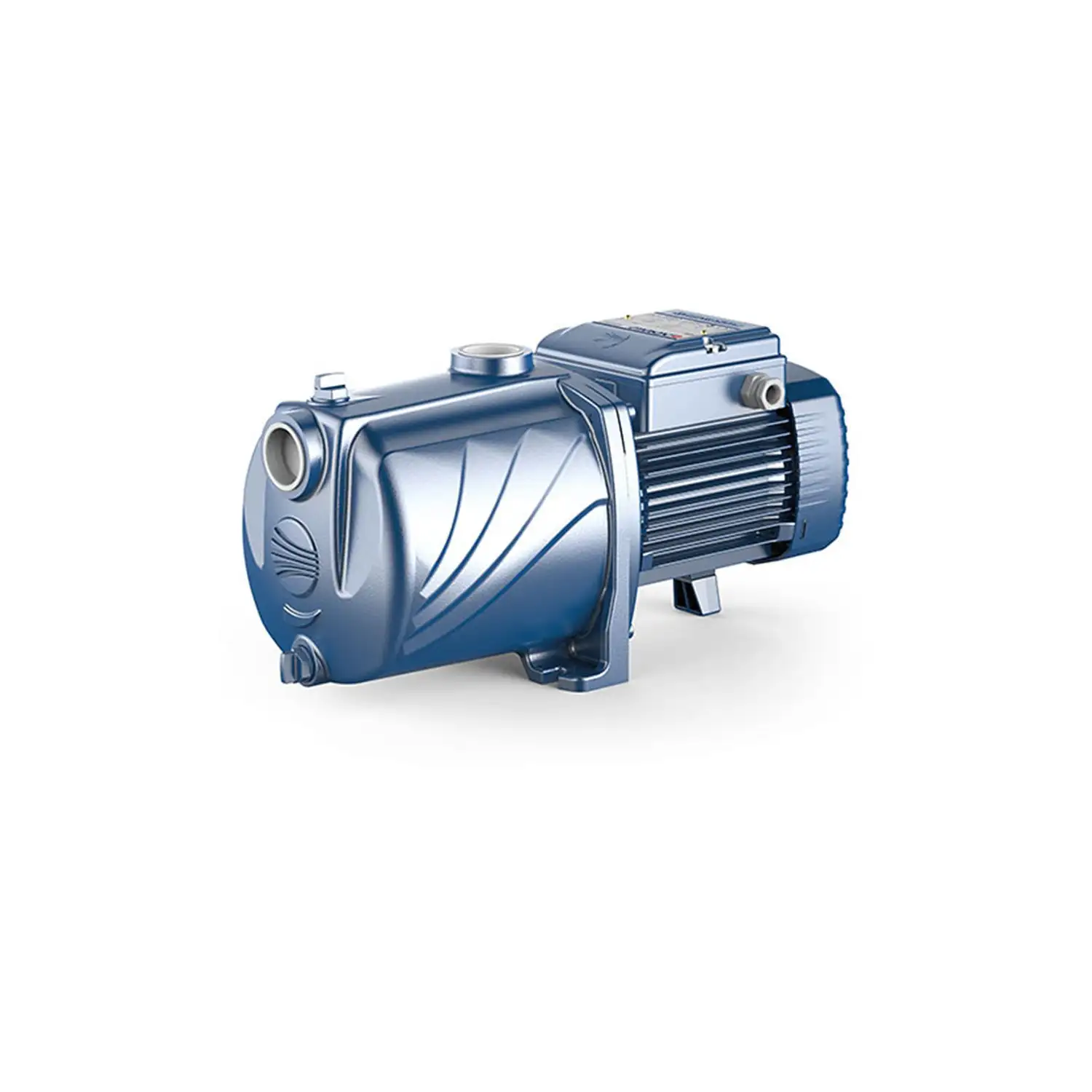

3CPm 80-I - 0.60 HP single-phase multi-impeller electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
Description
The 3CPm 80-I centrifugal electric pump from the 2-5CP-I series by Pedrollo stands out for its reliability and silence.
Its low noise level makes it ideal for use in the home sector.
It is particularly recommended for activities such as water distribution in conjunction with small or medium-sized pressure tanks and for the irrigation of vegetable gardens or gardens.
It can pump clean water and chemically non-aggressive liquids for the components.
The use of stainless steel and cast iron make the 3CPm 80-I solid and robust.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 0.60
- Absorption at 230V (A)
- 3.4
- Capacitor
- 12.5 µF 450 VL
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 5
- Max. head (m.)
- 40
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 17.2
- Width (cm)
- 15.8
- Depth (cm)
- 30.7
- Weight (Kg)
- 9.8
- Warranty (years)
- 2
Models and performances 2-5CPm-I
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data 2CP80-I 3CP80-I 4CP80-I 3CP100-I
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-13 |
| LP diameter | 13 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Shim Ring | POM acetal resin |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
