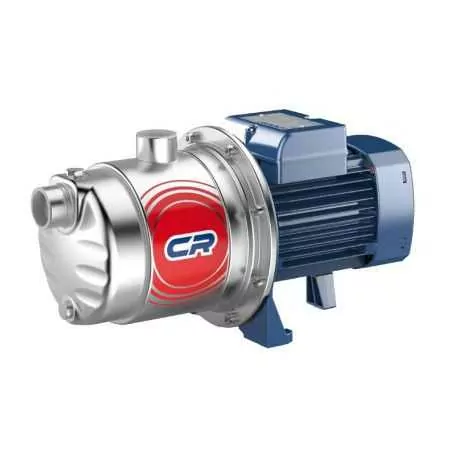

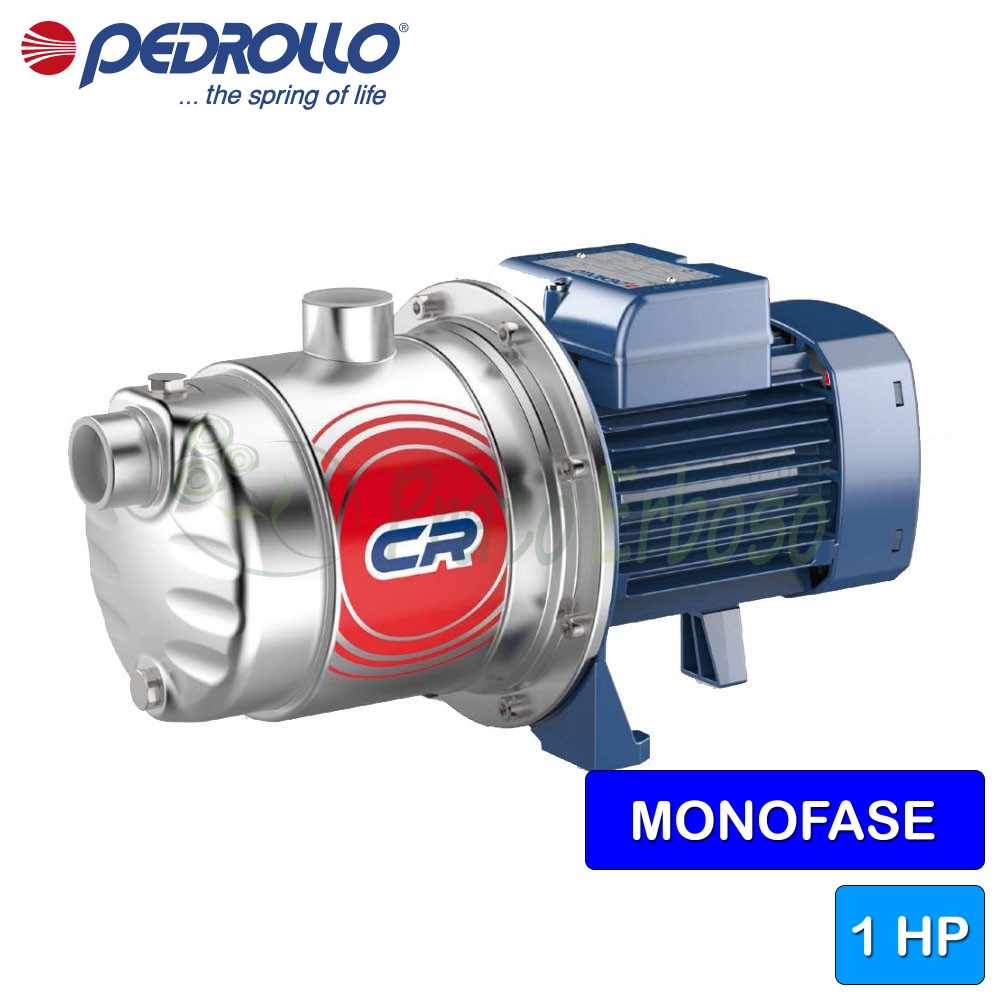

4CRm 100 - 1 HP single-phase multi-impeller centrifugal electric pump

Name: 4CRm 100 - 1 HP single-phase multi-impeller centrifugal electric pump
Brand: Pedrollo
SKU: 4CRm 100
Price: 233.51 EUR
Availability: InStock

Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. Motor 0.75 Kw (1 HP).

Variants:

Order it before 23:59 on Tuesday and receive it on Friday 13 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 13 February - Monday 16 February
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 13 February - Monday 16 February
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Friday 13 February - Monday 16 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 13 February
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Friday 13 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 13 February - Monday 16 February

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 13 February - Monday 16 February

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 13 February - Monday 16 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 13 February

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Friday 13 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4CRm 100 centrifugal electric pump from the 2-5CR series by Pedrollo stands out for its reliability and silence.

These features make it ideal for use in the domestic and civil sector.

Particularly for activities such as water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens or gardens.

The 4CRm 100 can pump clean water and liquids that are chemically non-aggressive for the components.

The pump body, cover and impellers are made of AISI 304 stainless steel and the motor shaft is made of AISI 431 stainless steel.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 6
Capacitor: 20 µF 450 VL
Suction mouth: 1"
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 4
Crankshaft: Stainless steel EN 10088-3 1.4104
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 130
Min. head (m.): 5
Max. head (m.): 50
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 20.2
Width (cm): 18.2
Depth (cm): 41.1
Weight (Kg): 10.5
Warranty (years): 2

Attachments

Technical data sheet 2-5CR

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo 2-5CR series pumps.

Download (391.38KB)

Models and performances 2-5 CRm

GUY

single phase

2CRm 80

3CRm 80

4CRm 80

5CRm 80

3CRm 100

4CRm 100

5CRm 100

POWER
KW	HP
0.37	0.50
0.45	0.60
0.55	0.75
0.75	1
0.55	0.75
0.75	1
1.1	1.5

PERFORMANCE
Q litres/min	H meters
5 ÷ 70	27 ÷ 5
5 ÷ 80	40 ÷ 5
5 ÷ 80	52 ÷ 10
5 ÷ 80	67 ÷ 12
5 ÷ 120	38 ÷ 5
5 ÷ 130	50 ÷ 5
5 ÷ 130	63 ÷ 8

MOUTH
wait.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
Q	l/min	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
H	meters	27	26	25	24	22.5	21	20	16.5	13	9	5
		40	38	37	36	34.5	33	31	27	22.5	17	11	5
		52	50	49	47	44.5	42	40	34	28.5	22.5	16	10
		67	66	64	62	59	56	53	45.5	37.5	29.5	20.5	12
		38	37	36	35	34.5	33.5	33	31	28	26	23	20	17	13.5	10	5
		50	50	49	48	47	46	45	42	39.5	37	34	30.5	26.5	22	17	11	5
		63	62	61.5	60.5	59.5	58	57	53.5	50.5	46.5	42.5	38	33	28	22	15	8

Construction data of the 4CR 5CR

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	AR-13
LP diameter	13
Fixed ring LP	Ceramic
Rotating ring LP	Graphite
LP elastomer	NBR

Materials

1.0 - Pump Body	EN 1.4301 stainless steel (AISI 304)
2.1 - Seal holder cover	EN 1.4301 stainless steel (AISI 304)
3.0 - Impeller	EN 1.4301 stainless steel (AISI 304)
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.2 - Shim Ring	POM acetal resin
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
