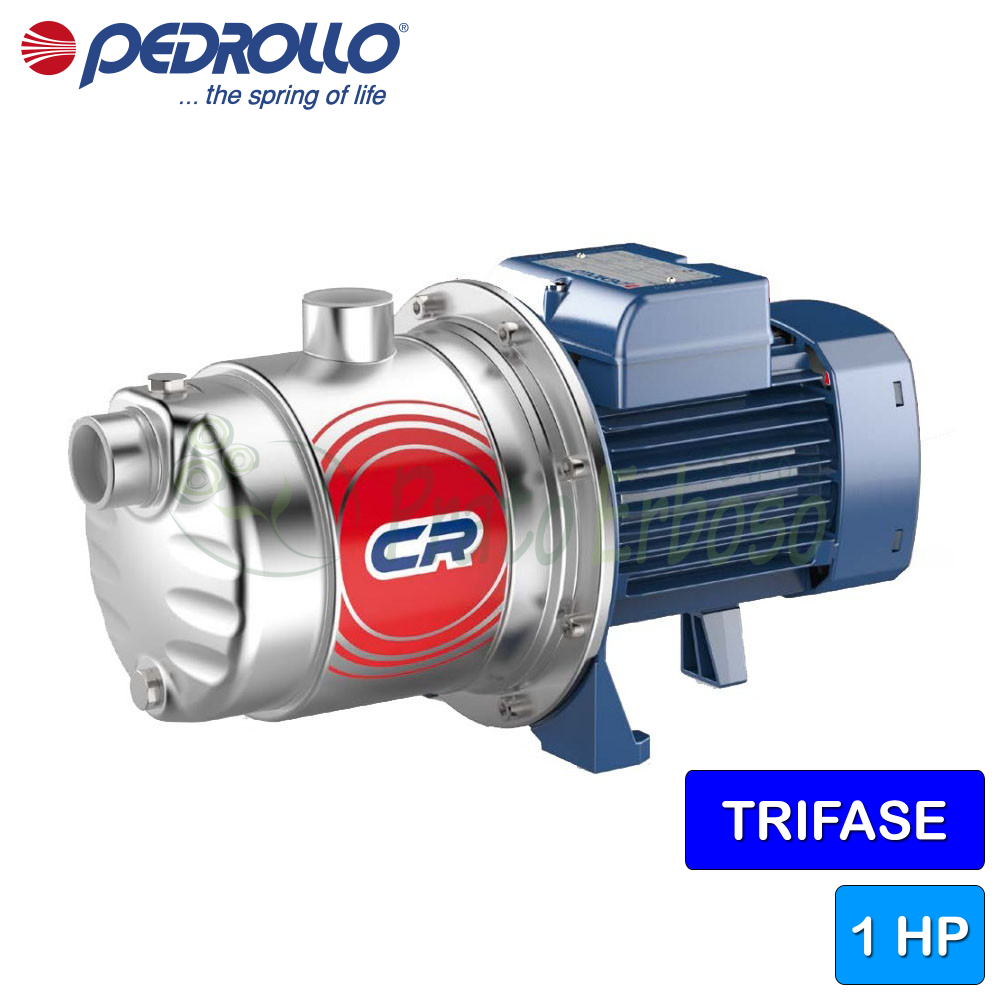

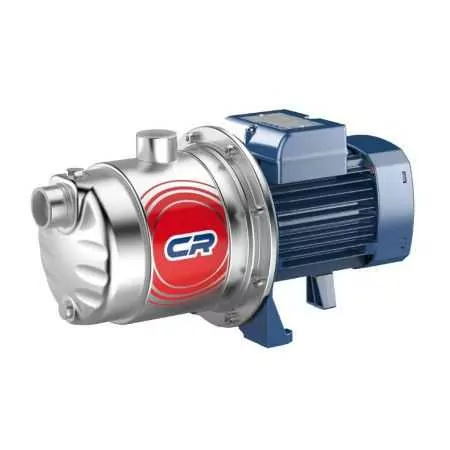

5CR 80 - 1 HP three-phase multi-impeller centrifugal electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 67 m. Motor 0.75 Kw (1 HP).
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo 5CRm 80 centrifugal electric pump from the 2-5CR series is widely used in the domestic and civil sectors.
It stands out for its reliability, silence and low energy consumption.
It can pump clean water and chemically non-aggressive liquids for the components.
Recommended for activities such as water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens or gardens.
The 5CRm 80 is made of stainless steel, the pump body, the lid and the impeller are in AISI 304 stainless steel and the motor shaft is in AISI 431 stainless steel.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4.3
- Current consumption at 400V (A)
- 2.5
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 12
- Max. head (m.)
- 67
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 20.2
- Width (cm)
- 18.2
- Depth (cm)
- 41.1
- Weight (Kg)
- 10.6
- Warranty (years)
- 2
Models and performances 2-5 CR
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 4CR 5CR
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side motor bearing | 6203 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-13 |
| LP diameter | 13 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Shim Ring | POM acetal resin |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
