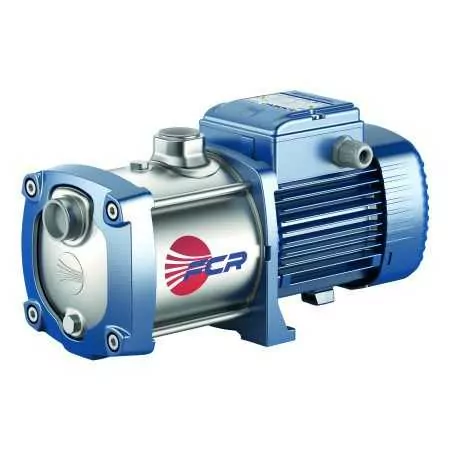

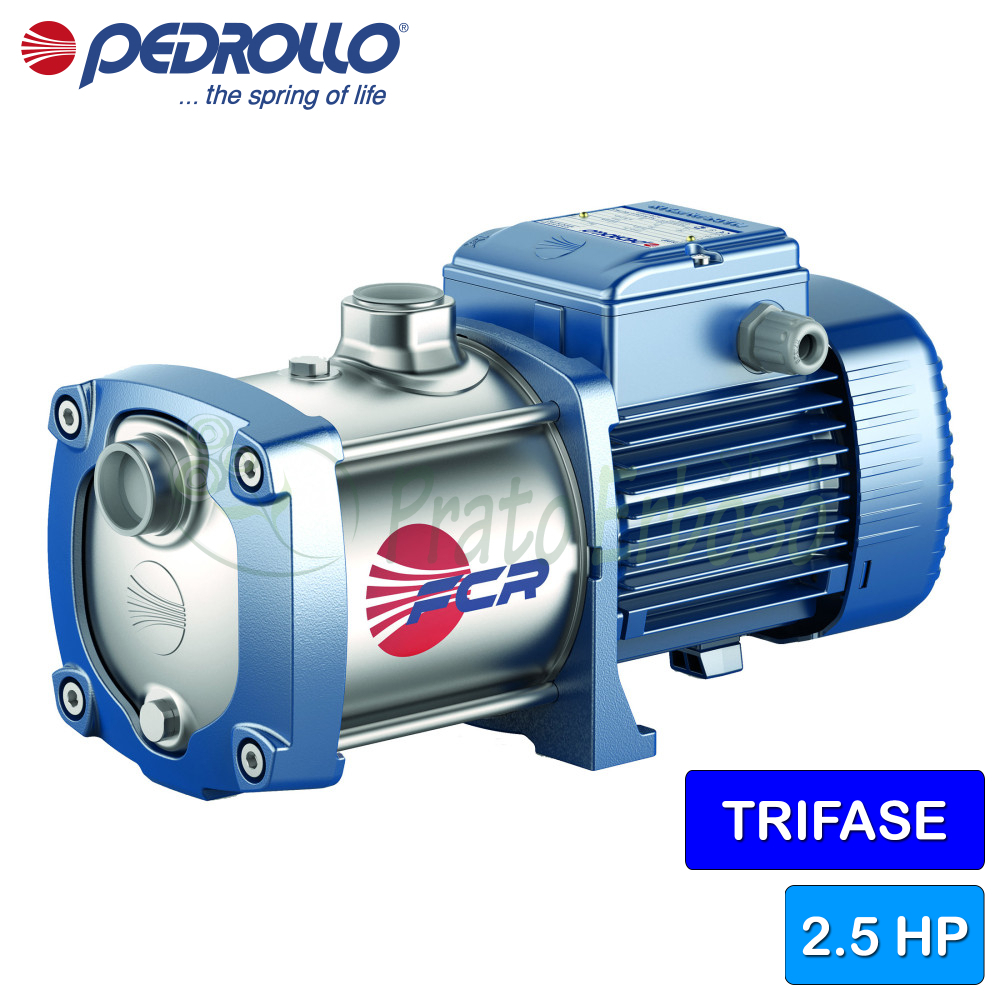

FCR 130/5 - 2.5 HP three-phase multi-impeller electric pump
With stainless steel impellers. Flow rate up to 130 l/min (7.8 m³/h). Head up to 81 m. 1.8 kW (2.5 HP) motor.
The FCRm 130/5 centrifugal electric pump from Pedrollo 's FCR series stands out for its reliability and silence.
These features make it ideal for use in the domestic and civil sector.
Particularly for activities such as water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens or gardens.
The FCRm 130/5 can pump clean water and liquids that are chemically non-aggressive for the components.
The pump body, cover and impellers are made of AISI 304 stainless steel and the motor shaft is made of AISI 431 stainless steel.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.8
- Power (HP)
- 2.5
- Absorption at 230V (A)
- 8.7
- Current consumption at 400V (A)
- 5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 39
- Max. head (m.)
- 81
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 22.8
- Width (cm)
- 51.7
- Depth (cm)
- 18.5
- Weight (Kg)
- 23.7
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side motor bearing | 6204 ZZ-C3E |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | EN 1.4301 stainless steel (AISI 304) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
-
ASS14FL0002 - Flange kit DN...
Threaded 1 1/4" X 1". For FCR 90, FCR 130, FCR 200 and FCR 240.
€69.54 -36%€44.51
-
- -36%
€44.51 tax incl. €69.54
Compare with Similar Products
 FCR 130/5 - 2.5 HP three-phase multi-impeller electric pumpThis product With stainless steel impellers. Flow rate up to 130 l/min (7.8 m³/h). Head up to 81 m. 1.8 kW (2.5 HP) motor. |  FCR 200/5 - 2.5 HP three-phase multi-impeller electric pumpWith stainless steel impellers. Flow rate up to 200 l/min (12 m³/h). Head up to 73 m. 1.8 kW (2.5 HP) motor. |  HT 5/5 - 2.5 HP three-phase vertical multistage electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 86 m. 1.8 Kw (2.5 HP) motor. | |
|---|---|---|---|
| Price | Price €1,017.48 -45% €559.61 | Price €1,017.48 -45% €559.61 | Price €1,407.88 -45% €774.33 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.8 | Power (Kw) -- | Power (Kw) 1.8 |
| Power (HP) | Power (HP) 2.5 | Power (HP) 2.5 | Power (HP) 2.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 8.7 | Absorption at 230V (A) 8.7 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 5 | Current consumption at 400V (A) 5 | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 5 | Number of impellers 5 | Number of impellers 3 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft -- |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 200 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 39 | Min. head (m.) 22 | Min. head (m.) 51.5 |
| Max. head (m.) | Max. head (m.) 81 | Max. head (m.) 73 | Max. head (m.) 86 |
| Jobs | Jobs irrigation | Jobs irrigation | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) 22.8 | Height (cm) 22.8 | Height (cm) -- |
| Width (cm) | Width (cm) 51.7 | Width (cm) 51.7 | Width (cm) -- |
| Depth (cm) | Depth (cm) 18.5 | Depth (cm) 18.5 | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 23.7 | Weight (Kg) 23.7 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
