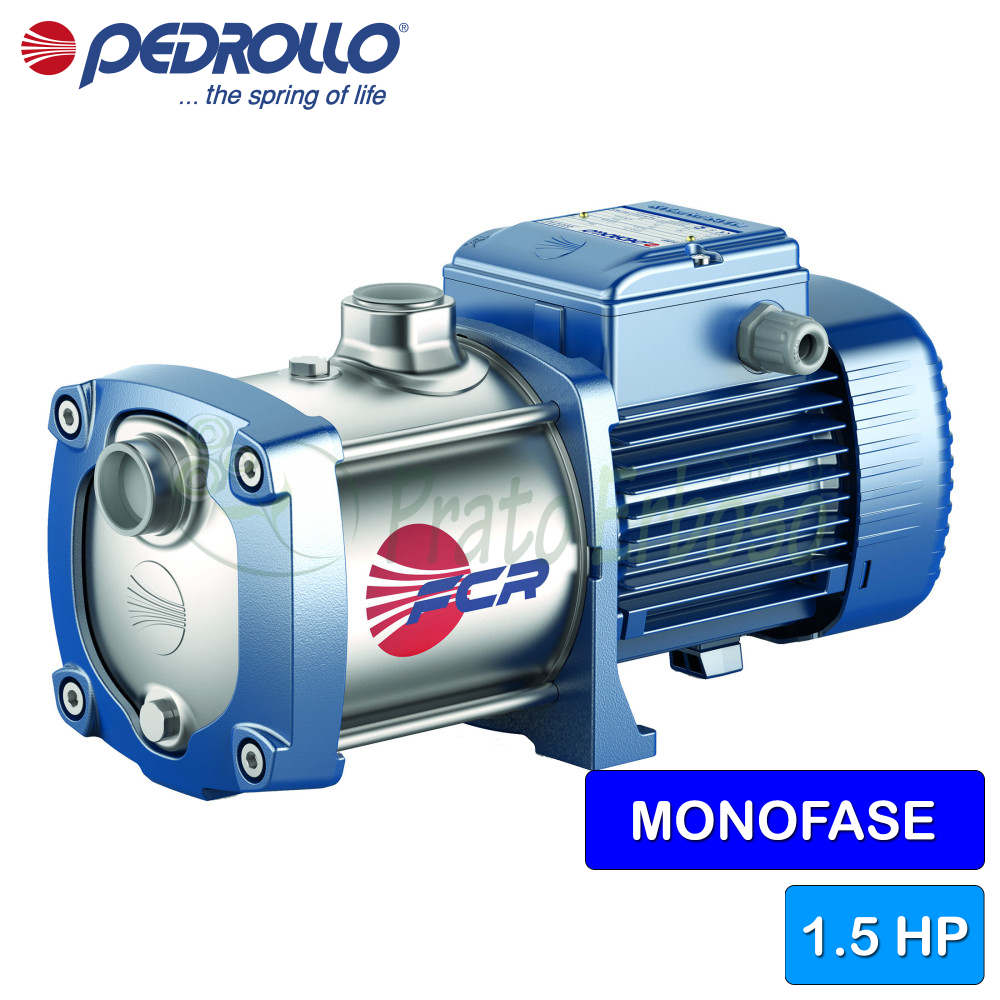

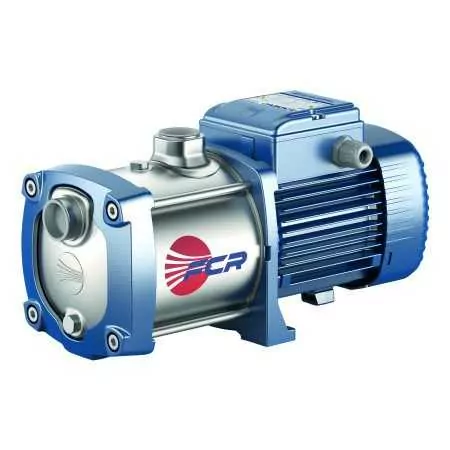

FCRm 130/3 - 1.5 HP single-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 130 l/min (7.8 m³/h). Head up to 49 m. 1.1 kW (1.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 25 February - Thursday 26 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 25 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 25 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 25 February
The FCRm 130/3 centrifugal electric pump from the FCR series by Pedrollo is widely used in the domestic and civil sectors.
It stands out for its reliability, silence and low energy consumption.
It can pump clean water and chemically non-aggressive liquids for the components.
Recommended for activities such as water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens or gardens.
The FCRm 130/3 is made of stainless steel, the pump body, the lid and the impeller are in AISI 304 stainless steel and the motor shaft is in AISI 431 stainless steel.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.5
- Capacitor
- 31.5 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 24
- Max. head (m.)
- 49
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 22.8
- Width (cm)
- 44.5
- Depth (cm)
- 18.5
- Weight (Kg)
- 18.1
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side motor bearing | 6204 ZZ-C3E |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | EN 1.4301 stainless steel (AISI 304) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
-
ASS14FL0002 - Flange kit DN...
Threaded 1 1/4" X 1". For FCR 90, FCR 130, FCR 200 and FCR 240.
€69.54 -36%€44.51
-
- -36%
€44.51 tax incl. €69.54
