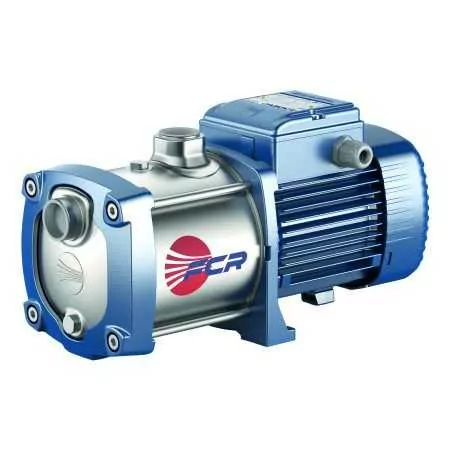

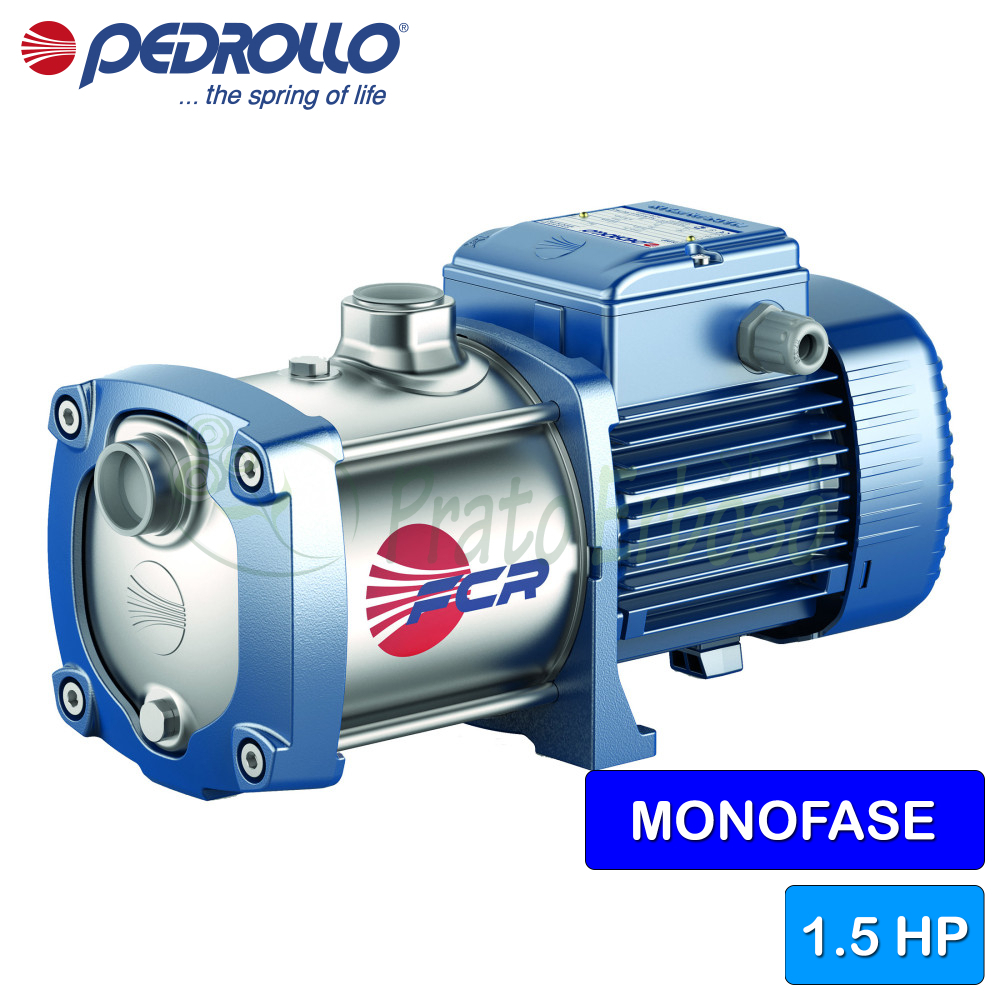

FCRm 90/5 - 1.5 HP single-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 90 l/min (5.4 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor.
The FCRm 90/5 centrifugal electric pump from the FCR series by Pedrollo is made entirely of stainless steel.
Pedrollo 's use of stainless steel gives the pump strength and resistance and also guarantees greater hygiene.
The FCRm 90/5 also guarantees greater silence, making it the right choice in the domestic sector.
Particularly suitable for water distribution in conjunction with small or medium pressure tanks and for irrigation of vegetable gardens and gardens.
It can pump clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 9
- Capacitor
- 31.5 µF 450 VL
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 38
- Max. head (m.)
- 80
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +90°C
- Height (cm)
- 22.8
- Width (cm)
- 49.7
- Depth (cm)
- 18.5
- Weight (Kg)
- 20.3
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side motor bearing | 6204 ZZ-C3E |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-18 |
| LP diameter | 18 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | EN 1.4301 stainless steel (AISI 304) |
| 2.1 - Seal holder cover | EN 1.4301 stainless steel (AISI 304) |
| 3.0 - Impeller | EN 1.4301 stainless steel (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | EN 1.4301 stainless steel (AISI 304) |
| 5.2 - Shim Ring | PTFE |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
-
ASS14FL0002 - Flange kit DN...
Threaded 1 1/4" X 1". For FCR 90, FCR 130, FCR 200 and FCR 240.
€69.54 -36%€44.51
-
- -36%
€44.51 tax incl. €69.54
Compare with Similar Products
 FCRm 90/5 - 1.5 HP single-phase multi-impeller electric pumpThis product With stainless steel impeller. Flow rate up to 90 l/min (5.4 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. |  5CPm 100-I - 1.5 HP single-phase multi-impeller electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 63 m. 1.1 kW (1.5 HP) motor. |  5CRm 100 - 1.25 HP single-phase multi-impeller centrifugal electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 63 m. Motor 0.90 Kw (1.25 HP). | |
|---|---|---|---|
| Price | Price €977.22 -45% €537.47 | Price €412.36 -42% €239.17 | Price €445.30 -42% €258.27 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) -- | Power (Kw) 0.90 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.25 |
| Absorption at 230V (A) | Absorption at 230V (A) 9 | Absorption at 230V (A) 6.6 | Absorption at 230V (A) 6.1 |
| Capacitor | Capacitor 31.5 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 25 µF 450 VL |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body AISI 304 stainless steel | Pump body Cast iron | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller Noryl |
| Number of impellers | Number of impellers 5 | Number of impellers 5 | Number of impellers 5 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft Stainless steel EN 10088-3 1.4104 |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 38 | Min. head (m.) 8 | Min. head (m.) 8 |
| Max. head (m.) | Max. head (m.) 80 | Max. head (m.) 63 | Max. head (m.) 63 |
| Jobs | Jobs irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 22.8 | Height (cm) 19.1 | Height (cm) 20.2 |
| Width (cm) | Width (cm) 49.7 | Width (cm) 15.8 | Width (cm) 18.2 |
| Depth (cm) | Depth (cm) 18.5 | Depth (cm) 35.6 | Depth (cm) 41.1 |
| Weight (Kg) | Weight (Kg) 20.3 | Weight (Kg) 13.4 | Weight (Kg) 10.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
