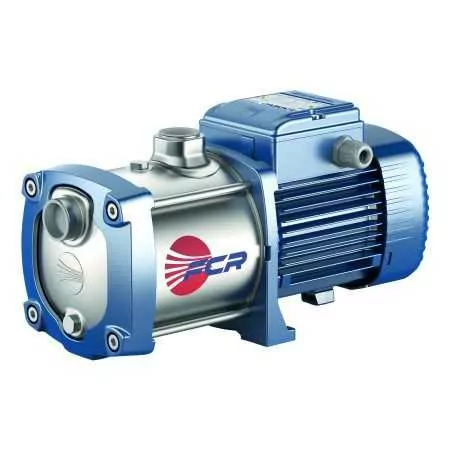

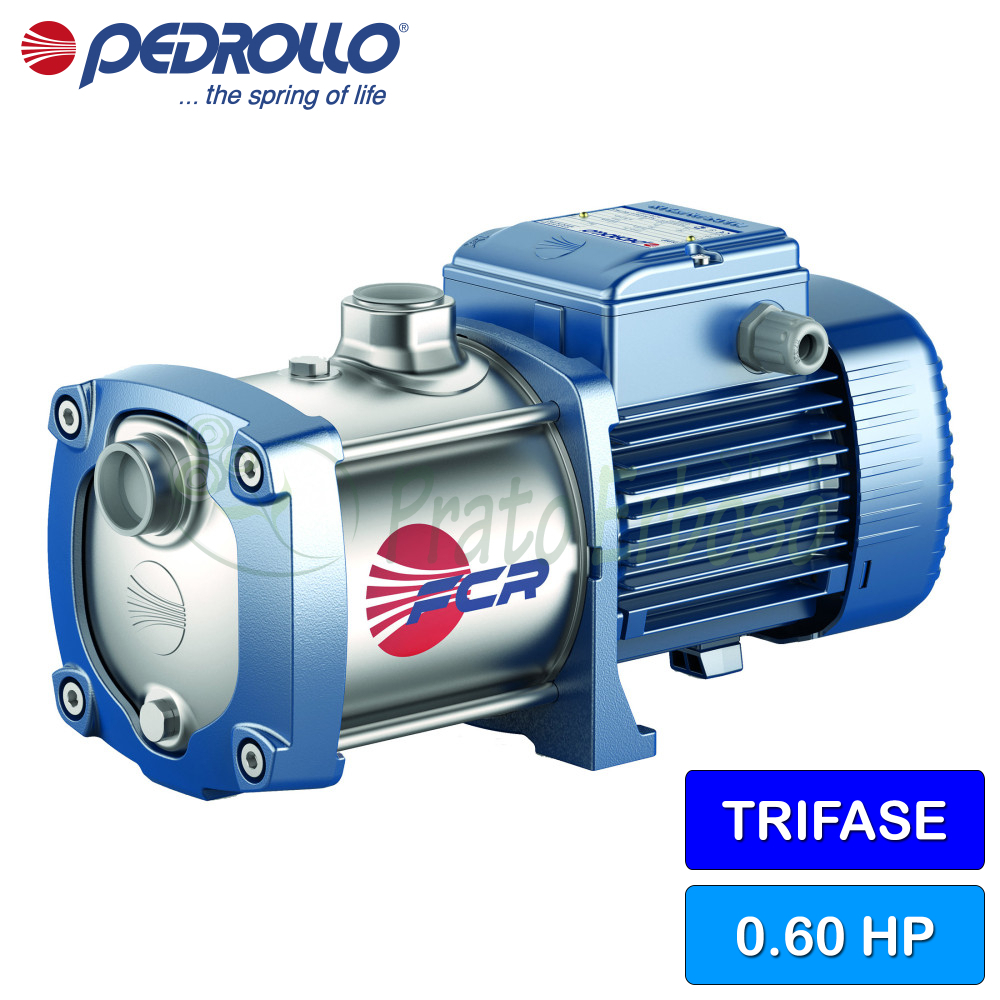

FCR 80/3 - 0.60 HP three-phase multi-impeller electric pump
With stainless steel impeller. Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. Motor 0.40 Kw (0.60 HP).
The Pedrollo FCR 80/3 centrifugal electric pump is recommended for water distribution in combination with pressure tanks, for industrial applications, irrigation systems.
It must be powered by a three-phase voltage, has a horsepower of 0.60 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +60.
The flow rate ranges from 5 to 80 metres and the head from 5 to 40 litres.
The FCR 80/3 is recommended for domestic and civil use.
Pedrollo has created this pump with the aim of reducing the noise and energy consumption of the pump as much as possible.
Thanks to its multi-stage construction, the pump is particularly quiet.
The FCR 80/3 is made entirely of stainless steel which guarantees good strength and durability over time.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.45
- Power (HP)
- 0.60
- Absorption at 230V (A)
- 2.2
- Current consumption at 400V (A)
- 1.3
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 5
- Max. head (m.)
- 40
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +60°C
- Height (cm)
- 17.1
- Width (cm)
- 16.0
- Depth (cm)
- 33.3
- Weight (Kg)
- 7.9
- Warranty (years)
- 2
