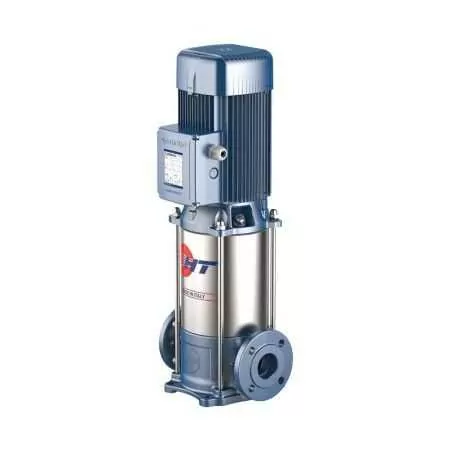

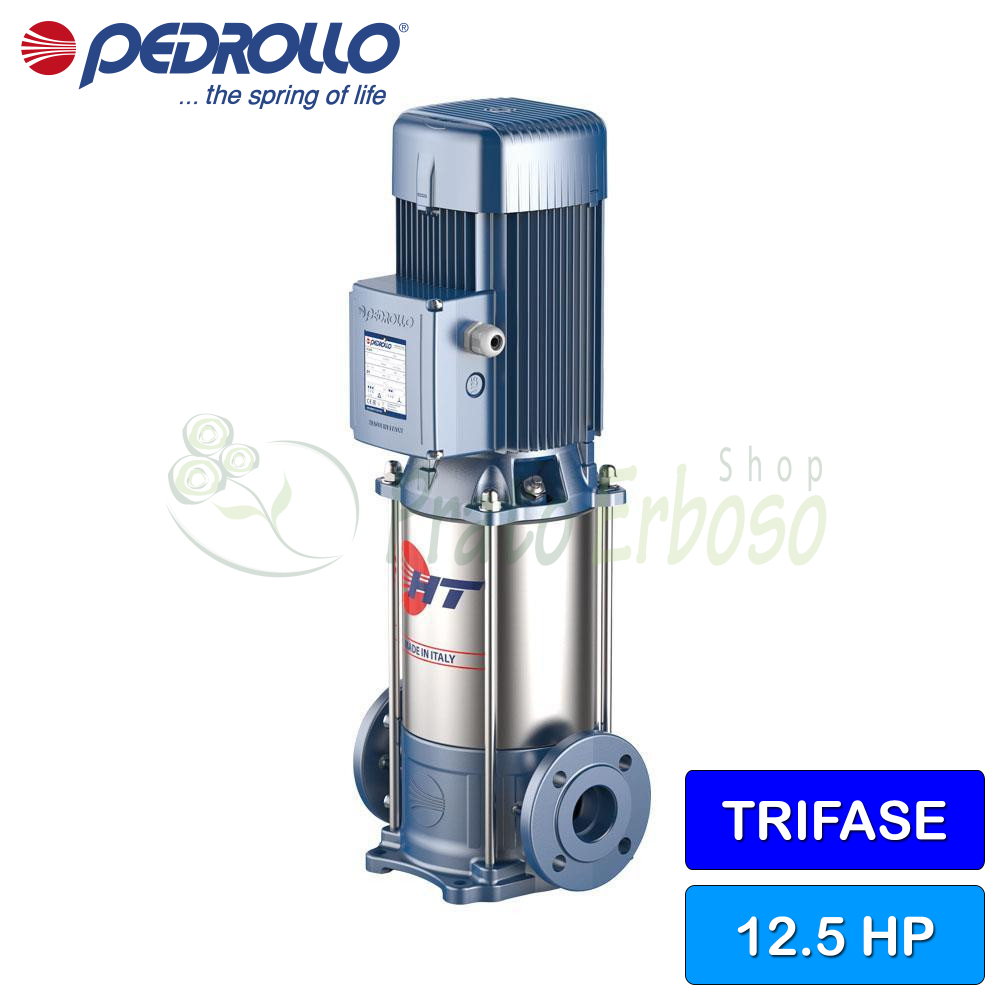

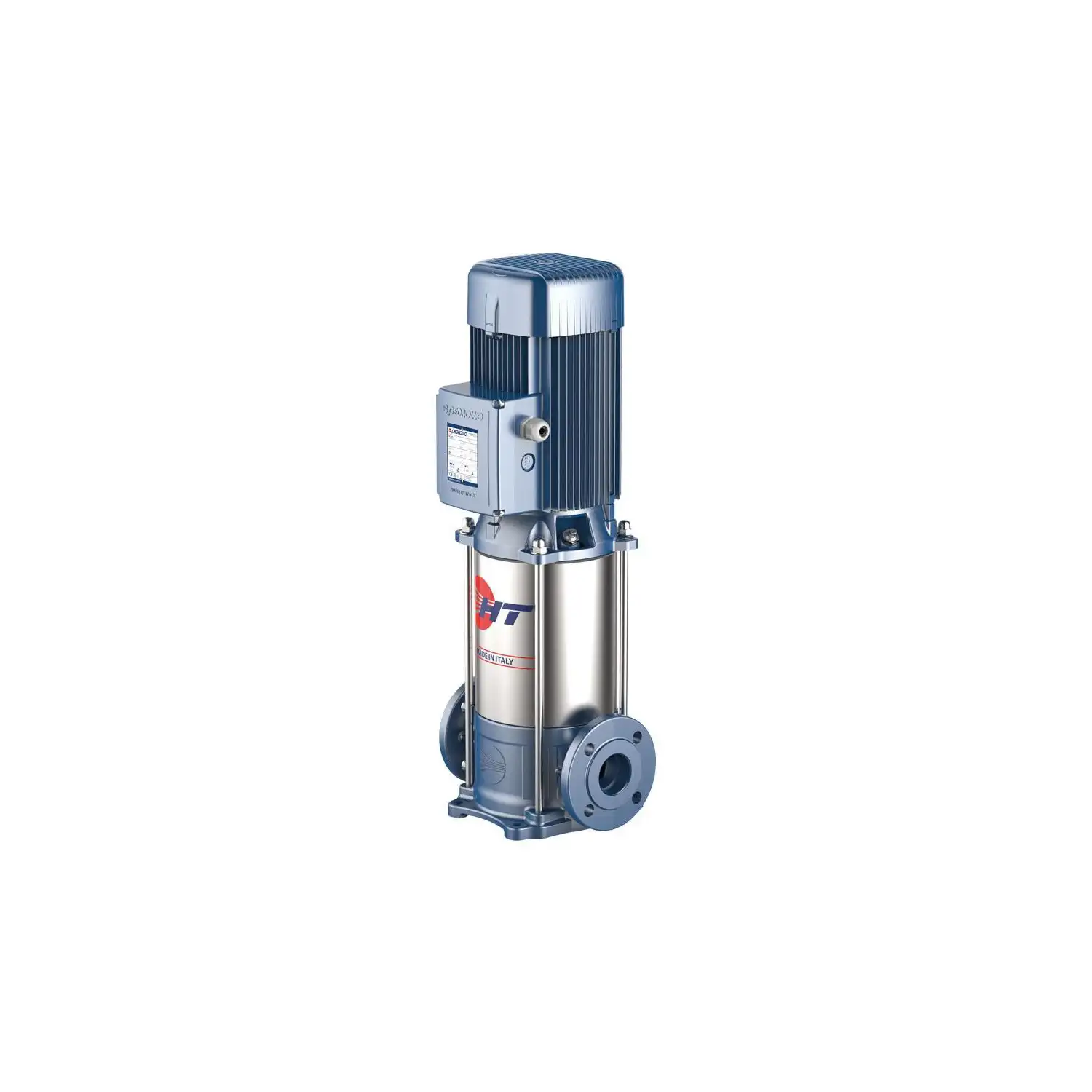

HT 15/6 - 12.5 HP three-phase vertical multistage electric pump
Flow rate up to 400 l/min (24 m³/h). Head up to 140 m. 9.2 Kw (12.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HT 15/6 centrifugal electric pump from the HT series by Pedrollo is particularly quiet.
Thanks to the multi-stage construction, operating noise is particularly low.
Recommended for use in the domestic, agricultural, civil and industrial sectors.
The HT 15/6 have been designed to guarantee high hydraulic performance combined with a robust, compact and reliable mechanical construction.
Pedrollo used stainless steel and ice for a solid result.
Stainless steel components ensure long life and high performance.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 52.5
- Max. head (m.)
- 140
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HT 15 models and performances
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT15/6-HT30/5-HT30/6 series
