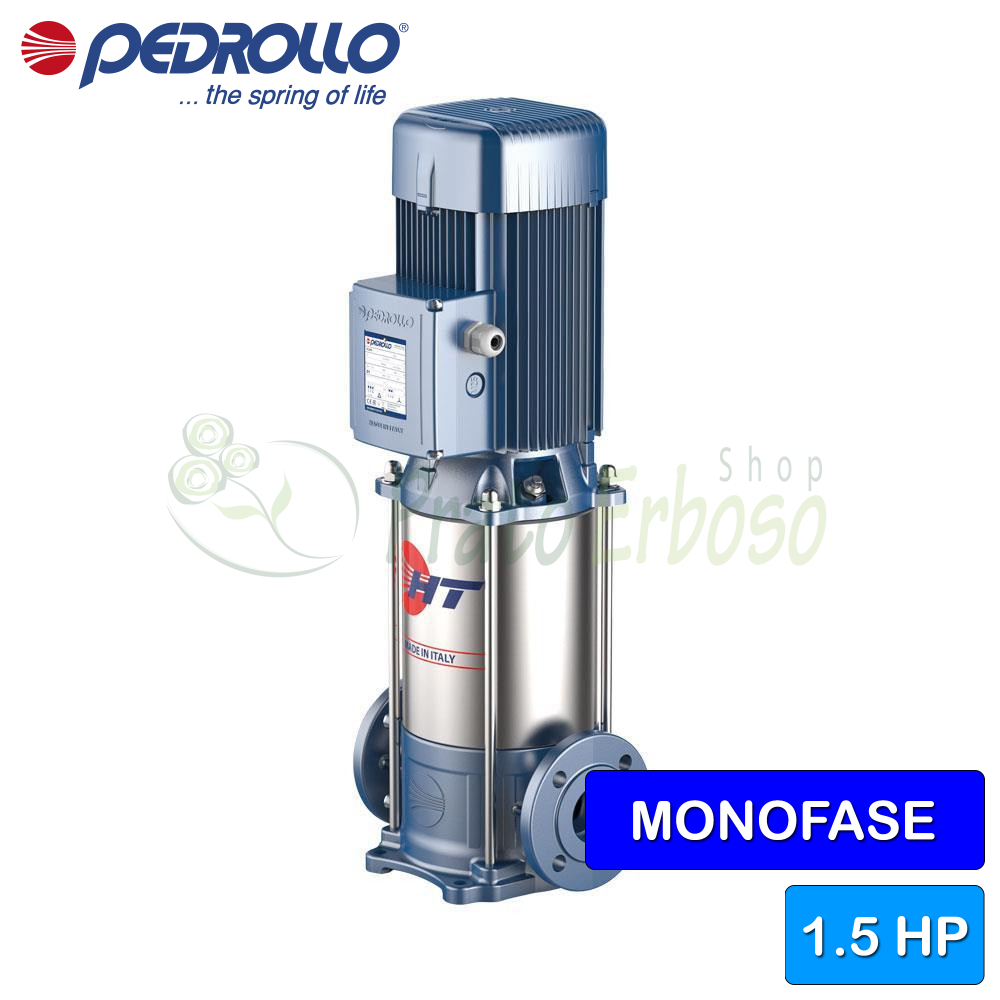

HTm 8/3 - 1.5 HP single-phase vertical multistage electric pump
Flow rate up to 200 l/min (12 m³/h). Head up to 47 m. 1.1 Kw (1.5 HP) motor.
The HTm 8/3 centrifugal electric pump from the HT series by Pedrollo is recommended for use in the domestic, civil, agricultural and industrial sectors.
It can pump clean water and chemically non-aggressive liquids.
The HTm 8/3 stands out for its high performance and its great adaptability to various types of use.
Suitable for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Designed to ensure high hydraulic performance combined with a compact and reliable construction.
The jacket, impellers, diffusers and crankshaft are made of stainless steel which guarantees high performance.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 17
- Max. head (m.)
- 47
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
