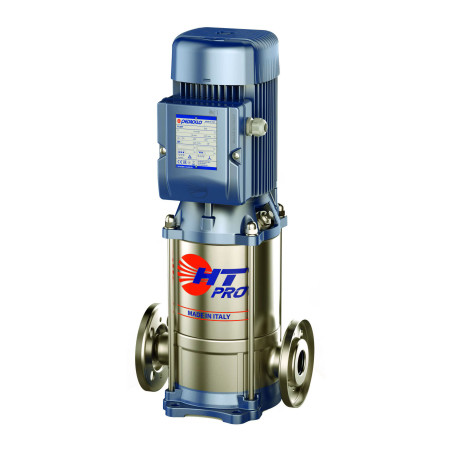

HT 15/5-PRO - 10 HP three-phase vertical multistage electric pump
Flow rate up to 400 l/min (24 m³/h). Head up to 120 m. 7.5 Kw (10 HP) motor.
The Pedrollo HT 15/5-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive towards the materials from which the pump is made.
It has a flow rate that varies from 50 to 400 litres per minute with a head of 45 to 120 metres.
Its high efficiency and adaptability to a wide variety of applications, even those with unusual requirements, make it an ideal choice for domestic, civil, and industrial applications. It is particularly suitable for water distribution in conjunction with pressure tanks and for increasing mains pressure.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 45
- Max. head (m.)
- 120
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-KU-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
