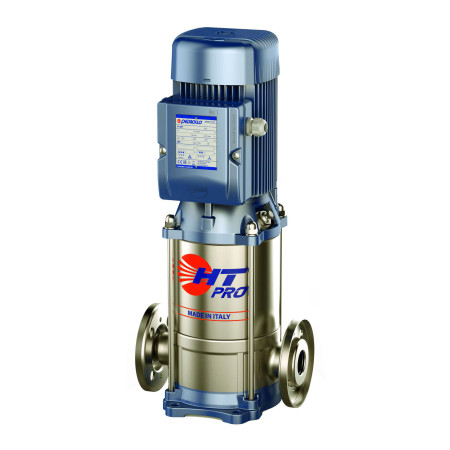

HT 15/6-PRO - 12.5 HP three-phase vertical multistage electric pump

Name: HT 15/6-PRO - 12.5 HP three-phase vertical multistage electric pump
Brand: Pedrollo
SKU: HT 15/6-PRO
Price: 2592.07 EUR
Availability: InStock

Flow rate up to 400 l/min (24 m³/h). Head up to 140 m. 9.2 Kw (12.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo HT 15/6-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive towards the materials from which the pump is made.

It has a flow rate that varies from 50 to 400 litres per minute with a head from 52.5 to 140 metres.

Its high efficiency and adaptability to a wide variety of applications, even those with unusual requirements, make it an ideal choice for domestic, civil, and industrial applications. It is particularly suitable for water distribution in conjunction with pressure tanks and for increasing mains pressure.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 9.2
Power (HP): 12.5
Suction mouth: 2"
Delivery mouth: 2"
Pump body: Cast iron
Impeller: AISI 304 stainless steel
Number of impellers: 3
Check valve: No
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 400
Min. head (m.): 52.5
Max. head (m.): 140
Jobs: fire prevention systems, washing systems, irrigation, pressurization systems, water supply
Warranty (years): 2

Attachments

HT-PRO technical sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo HT-PRO series pumps.

Download (594.37KB)

Models and performances HT 15 - PRO

GUY

three-phase

HT 15/2R - PRO

HT 15/3R - PRO

HT 15/3 - PRO

HT 15/4 - PRO

HT 15/5 - PRO

HT 15/6 - PRO

HT 15/7 - PRO

POWER
KW	HP
2.2	3
3	4
4	5.5
5.5	7.5
7.5	10
9.2	12.5
9.2	12.5

PERFORMANCE
Q litres/min	H meters
50 ÷ 350	38 ÷ 5
50 ÷ 350	50 ÷ 8
50 ÷ 400	66 ÷ 22
50 ÷ 400	82 ÷ 5
50 ÷ 400	80 ÷ 15
50 ÷ 400	86 ÷ 10
50 ÷ 400	86 ÷ 10

MOUTH
wait.	send.
2"	2"

Q	m³/hour	0	3	6	12	18	21	24
Q	l/min	0	5	10	15	20	25	90
H	meters	44	43	41.5	36.5	27.5	20.5
		64.5	62.5	60.5	52.0	37.5	27
		72	70	68.5	61	48	38.5	27
		96	94	91	81	64	51.5	36
		120	117	114	102	80	64.5	45
		140	137	133	119	94	75.5	52.5
		-	160	155	139	109	88	61.5
