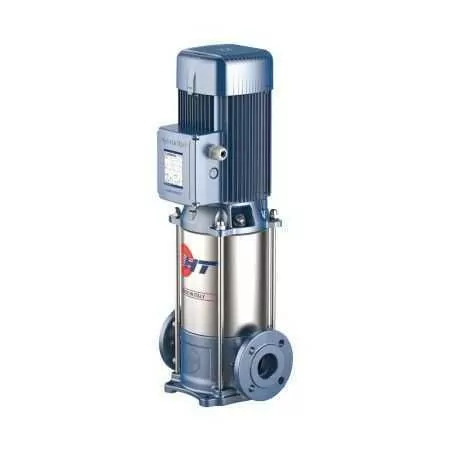

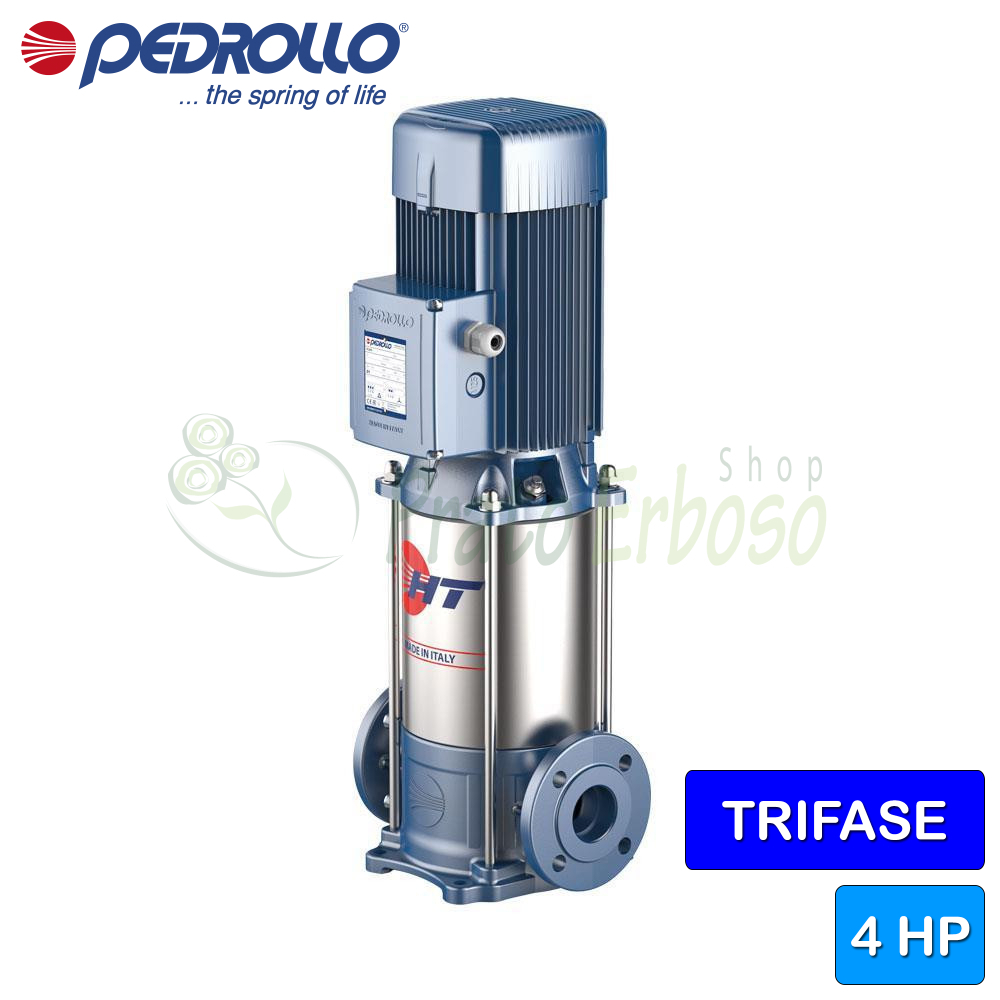

HT 3/10 - 4 HP three-phase vertical multistage electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 160 m. 3 Kw (4 HP) motor.
The Pedrollo HT 3/10 centrifugal electric pump offers high performance despite its compact size.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The HT 3/10 is ideal for the civil, agricultural and industrial sectors. In particular, it is recommended for the distribution of water in combination with pressure tanks, for increasing pressure in the network, for fire-fighting systems, for washing systems and for irrigation.
It must be powered by a three-phase voltage, has a horsepower of 4 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to 90.
The flow rate ranges from 5 to 90 metres and the head from 80 to 160 litres.
The construction of the HT 3/10 is made of several stainless steel components. The use of this material makes the pump extremely robust and durable.
Furthermore, thanks to the multi-stage construction, the operating noise is particularly low.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 10
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 80
- Max. head (m.)
- 160
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Height (cm)
- 73.7
- Width (cm)
- 25.0
- Depth (cm)
- 25.7
- Weight (Kg)
- 52.5
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HT 3/10 - 4 HP three-phase vertical multistage electric pumpThis product Flow rate up to 90 l/min (5.4 m³/h). Head up to 160 m. 3 Kw (4 HP) motor. |  HT 3/9 - 4 HP three-phase vertical multistage electric pumpFlow rate up to 90 l/min (5.4 m³/h). Head up to 146 m. 3 Kw (4 HP) motor. | |
|---|---|---|
| Price | Price €2,249.68 -45% €1,237.32 | Price €2,136.22 -45% €1,174.92 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 3 |
| Power (HP) | Power (HP) 4 | Power (HP) 4 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 10 | Number of impellers 9 |
| Check valve | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 90 |
| Min. head (m.) | Min. head (m.) 80 | Min. head (m.) 72 |
| Max. head (m.) | Max. head (m.) 160 | Max. head (m.) 146 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply |
| Height (cm) | Height (cm) 73.7 | Height (cm) 71.1 |
| Width (cm) | Width (cm) 25.0 | Width (cm) 25.0 |
| Depth (cm) | Depth (cm) 25.7 | Depth (cm) 25.7 |
| Weight (Kg) | Weight (Kg) 52.5 | Weight (Kg) 48.2 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
