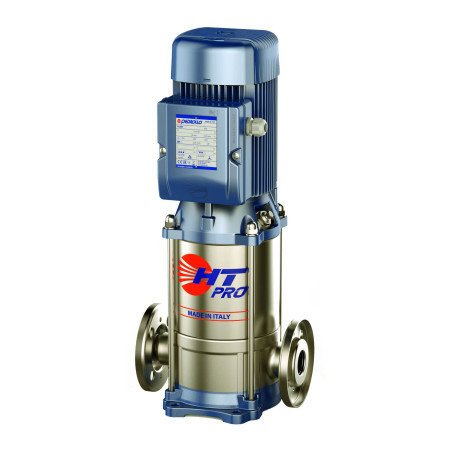

HT 30/6-PRO - 15 HP three-phase vertical multistage electric pump
Flow rate up to 800 l/min (5.4 m³/h). Head up to 120 m. 11 Kw (15 HP) motor.
The Pedrollo HT 30/6-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive towards the materials from which the pump is made.
It has a flow rate that varies from 100 to 800 litres per minute with a head from 24 to 120 metres.
High efficiency and adaptability to a wide variety of applications, even non-standard ones, make them ideal for domestic, civil, and industrial applications; particularly for water distribution in conjunction with pressure tanks and for increasing network pressure.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Suction mouth
- 2" 1/2
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 24
- Max. head (m.)
- 120
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6307 2RS-C3 |
| Opposite side engine bearing | 6206 2RS-C3 |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-KU-24 |
| LP diameter | 24 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
