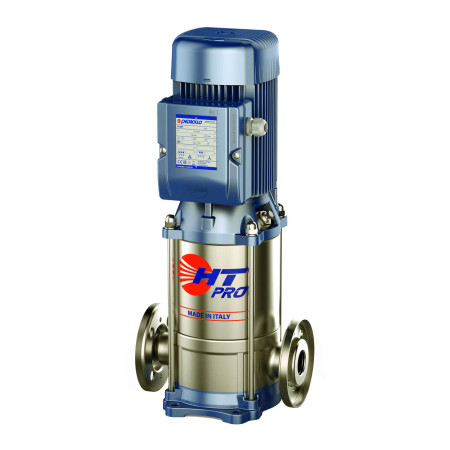

HT 5/3-PRO - 1.5 HP three-phase vertical multistage electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 51.5 m. Motor 1.1 Kw (1.5 HP).
The Pedrollo HT 5/3-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made. It differs from the basic series in having a cast iron pump body.
It has a flow rate that varies from 5 to 130 litres per minute with a head of 31 to 51.5 metres.
The high efficiency and adaptability to the most varied applications, even anomalous ones, make it an ideal choice in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with autoclave tanks, increasing the pressure in the network.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 31
- Max. head (m.)
- 51.5
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HT 5/3-PRO - 1.5 HP three-phase vertical multistage electric pumpThis product Flow rate up to 130 l/min (7.8 m³/h). Head up to 51.5 m. Motor 1.1 Kw (1.5 HP). |  5CP 100-I - 1.5 HP three-phase multi-impeller electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 63 m. 1.1 Kw (1.5 HP) motor. |  FCR 130/3 - 1.5 HP three-phase multi-impeller electric pumpWith stainless steel impellers. Flow rate up to 130 l/min (7.8 m³/h). Head up to 49 m. Motor 1.1 Kw (1.5 HP). |  HT 5/3 - 1.5 HP three-phase vertical multistage electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 51.5 m. Motor 1.1 Kw (1.5 HP). | |
|---|---|---|---|---|
| Price | Price €1,960.54 -45% €1,078.30 | Price €424.56 -42% €246.24 | Price €869.86 -45% €478.42 | Price €1,244.40 -45% €684.42 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) -- | Power (Kw) -- | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.5 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 4.3 | Absorption at 230V (A) 5.6 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 2.5 | Current consumption at 400V (A) 3.2 | Current consumption at 400V (A) -- |
| Suction mouth | Suction mouth 1" 1/4 | Suction mouth 1" | Suction mouth 1" 1/4 | Suction mouth 1" 1/4 |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body Cast iron | Pump body AISI 304 stainless steel | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 3 | Number of impellers 5 | Number of impellers 3 | Number of impellers 3 |
| Crankshaft | Crankshaft -- | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel | Crankshaft -- |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 31 | Min. head (m.) 8 | Min. head (m.) 24 | Min. head (m.) 31 |
| Max. head (m.) | Max. head (m.) 51.5 | Max. head (m.) 63 | Max. head (m.) 49 | Max. head (m.) 51.5 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation | Jobs irrigation | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) -- | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) -- |
| Height (cm) | Height (cm) -- | Height (cm) 19.1 | Height (cm) 22.8 | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) 38.2 | Width (cm) 44.5 | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) 15.8 | Depth (cm) 18.5 | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) -- | Weight (Kg) 15.8 | Weight (Kg) 18.1 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
