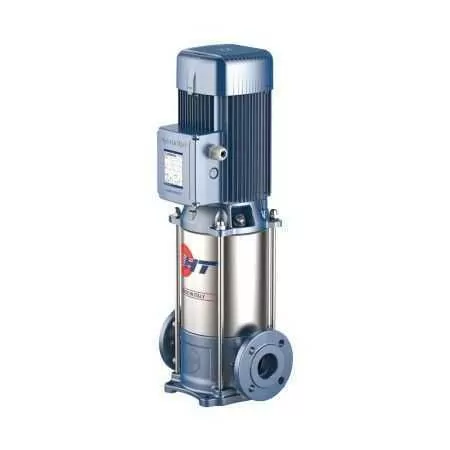

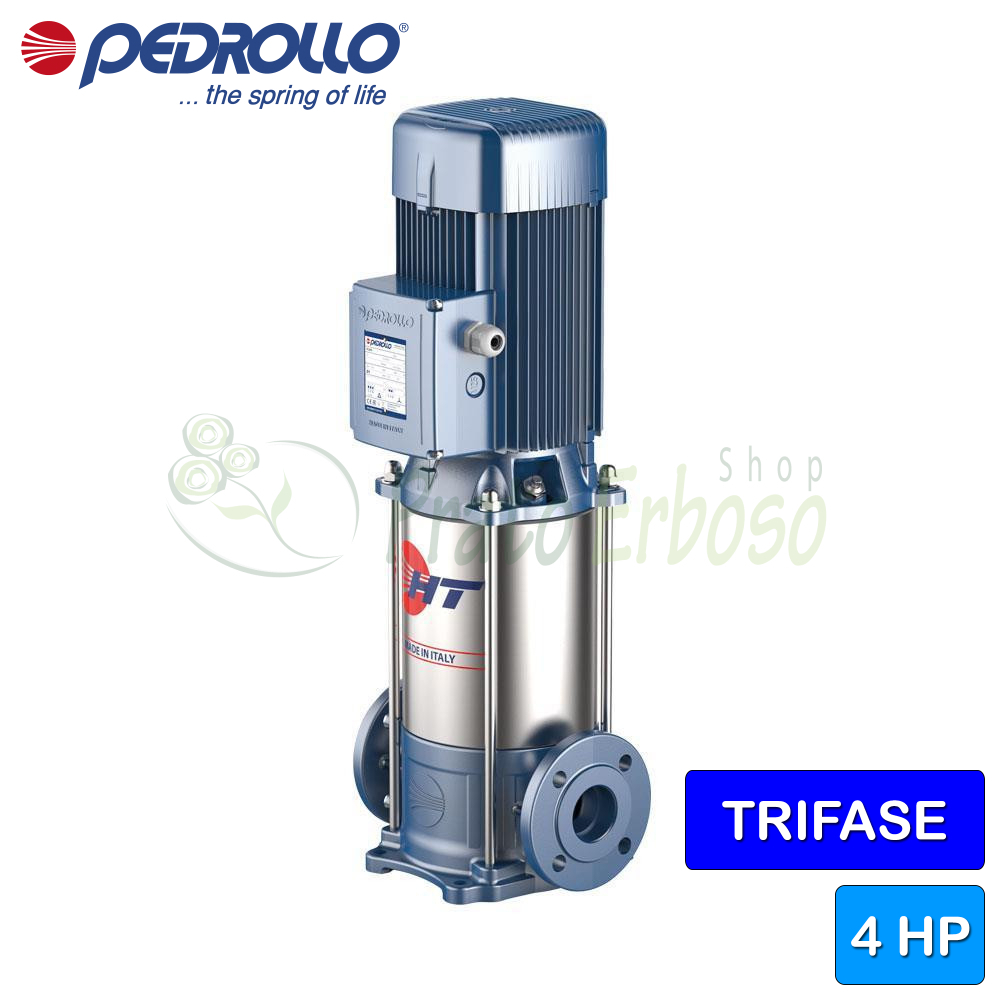

HT 5/8 - 4 HP three-phase vertical multistage electric pump
The Pedrollo HT 5/8 centrifugal electric pump is designed to guarantee excellent performance and solid construction despite its compact size.
Made entirely of stainless steel, the pump is robust and resistant.
The HT 5/8 is made with a special multi-stage construction, the operating noise is particularly low.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
Ideal for civil, agricultural and industrial sectors. In particular, the HT 5/8 is suitable for water distribution in combination with pressure tanks, for increasing pressure in the network, for fire-fighting systems, for washing systems and for irrigation.
It must be powered by a three-phase voltage, has a horsepower of 4 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to 90.
The flow rate ranges from 5 to 130 metres and the head from 82 to 137 litres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 8
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 82
- Max. head (m.)
- 137
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Height (cm)
- 68.5
- Width (cm)
- 25.0
- Depth (cm)
- 25.7
- Weight (Kg)
- 48.3
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 HT 5/8 - 4 HP three-phase vertical multistage electric pumpThis product Flow rate up to 130 l/min (7.8 m³/h). Head up to 137 m. 3 Kw (4 HP) motor. |  HT 5/7 - 4 HP three-phase vertical multistage electric pumpFlow rate up to 130 l/min (7.8 m³/h). Head up to 120 m. 3 Kw (4 HP) motor. | |
|---|---|---|
| Price | Price €2,136.22 -45% €1,174.92 | Price €2,072.78 -45% €1,140.03 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 3 |
| Power (HP) | Power (HP) 4 | Power (HP) 4 |
| Suction mouth | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 8 | Number of impellers 7 |
| Check valve | Check valve No | Check valve No |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 82 | Min. head (m.) 72 |
| Max. head (m.) | Max. head (m.) 137 | Max. head (m.) 120 |
| Jobs | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, washing systems, irrigation, pressurization systems, water supply |
| Height (cm) | Height (cm) 68.5 | Height (cm) 65.9 |
| Width (cm) | Width (cm) 25.0 | Width (cm) 25.0 |
| Depth (cm) | Depth (cm) 25.7 | Depth (cm) 25.7 |
| Weight (Kg) | Weight (Kg) 48.3 | Weight (Kg) 47.3 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
