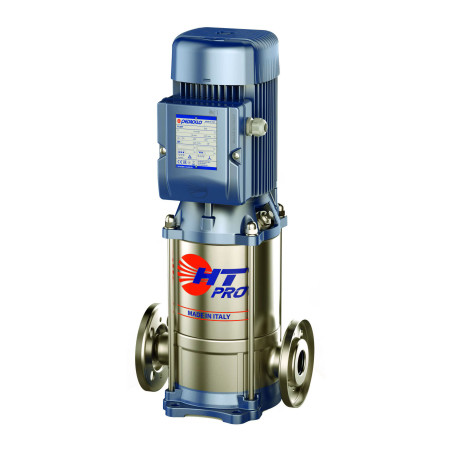

HT 8/4-PRO - 2 HP three-phase vertical multistage electric pump
Flow rate up to 200 l/min (7.8 m³/h). Head up to 62.5 m. Motor 1.5 Kw (2 HP).
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo HT 8/4-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made. It differs from the basic series in having a cast iron pump body.
It has a flow rate that varies from 20 to 200 litres per minute with a head from 23 to 62.5 metres.
The high efficiency and adaptability to the most varied applications, even anomalous ones, make it an ideal choice in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with autoclave tanks, increasing the pressure in the network.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Suction mouth
- 1" 1/2
- Delivery mouth
- 1" 1/2
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 200
- Min. head (m.)
- 23
- Max. head (m.)
- 62.5
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
Models and performance HT 8 - PRO
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 3 PRO series
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 2.0 - Lid | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
