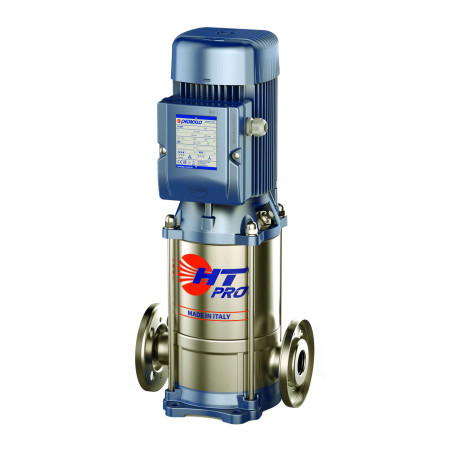

HTm 5/3-PRO - 1.5 HP single-phase vertical multistage electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 51.5 m. 1.1 Kw (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The Pedrollo HTm 5/3-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive to the pump's materials. It differs from the basic series in that it has a cast iron pump body.
It has a flow rate that varies from 5 to 130 litres per minute with a head from 31 to 51.5 metres.
Its high efficiency and adaptability to a wide variety of applications, even those with unusual requirements, make it an ideal choice for domestic, civil, and industrial applications. It is particularly suitable for water distribution in conjunction with pressure tanks and for increasing mains pressure.
Installation must be carried out indoors or in any case protected from the elements.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 31
- Max. head (m.)
- 51.5
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HTM 5 - PRO models and performances
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
