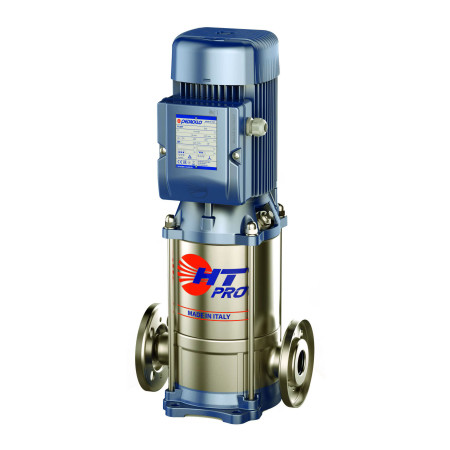

HTm 8/3-PRO - 1.5 HP single-phase vertical multistage electric pump

Name: HTm 8/3-PRO - 1.5 HP single-phase vertical multistage electric pump
Brand: Pedrollo
SKU: HTm 8/3-PRO
Price: 1064.21 EUR
Availability: InStock

Flow rate up to 200 l/min (12 m³/h). Head up to 47 m. 1.1 Kw (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo HTm 8/3-PRO vertical multi-impeller centrifugal electric pump is recommended for pumping clean water and liquids that are chemically non-aggressive to the pump's materials. It differs from the basic series in that it has a cast iron pump body.

It has a flow rate that varies from 20 to 200 litres per minute with a head from 17 to 47 metres.

Its high efficiency and adaptability to a wide variety of applications, even those with unusual requirements, make it an ideal choice for domestic, civil, and industrial applications. It is particularly suitable for water distribution in conjunction with pressure tanks and for increasing mains pressure.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.5
Power (HP): 1.5
Suction mouth: 1" 1/2
Delivery mouth: 1" 1/2
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 3
Check valve: No
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 200
Min. head (m.): 17
Max. head (m.): 47
Jobs: fire prevention systems, washing systems, irrigation, pressurization systems, water supply
Warranty (years): 2

Attachments

HT-PRO technical sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo HT-PRO series pumps.

Download (594.37KB)

HTM 8 - PRO models and performances

GUY

single phase

HTm 8/3 - PRO

HTm 8/4 - PRO

HTm 8/5 - PRO

HTm 8/6 - PRO

POWER
KW	HP
1.1	1.5
1.5	2
1.8	2.5
2.2	3

PERFORMANCE
Q litres/min	H meters
20 ÷ 200	44 ÷ 13
20 ÷ 200	58 ÷ 18
20 ÷ 200	73 ÷ 21.5
20 ÷ 200	87 ÷ 26

MOUTH
wait.	send.
1 1/2"	1 1/2"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8	12.0
Q	l/min	0	20	40	60	80	100	120	140	160	180	200
H	meters	44	43	41.5	39.5	37	34	30.5	26.8	22.6	17.9	13
		58	58	55	52.5	49.5	45.5	41	35.5	30	23.9	18
		73	71.5	69	66	61.5	57	51	44.5	37.5	30	21.5
		87	85.5	83	79	74	68	61.5	53.5	45	36	26
